Home > Products > Multi-layer PCB > pcb printed circuit board

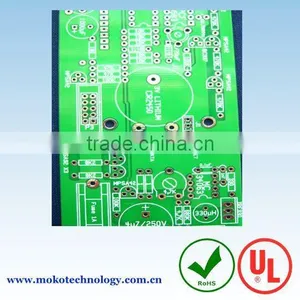

pcb printed circuit board
- 100000 Piece / Pieces per Month
- ShenZhen/HongKong
- T/T Credit Card
Product Details
Place of Origin: | Guangdong, China | Brand Name: | MOKO | Model Number: | MK090604 |
Base Material: | FR4 | Copper Thickness: | 1.0oz | Board Thickness: | 1.2mm |
Min. Hole Size: | 0.2mm | Min. Line Width: | 8mil | Min. Line Spacing: | 8mil |
Surface Finishing: | Immersion gold |
Packaging Details
Inner package:Anti-static bag ;
Outer package:High standard Carton.
Product Description
Specifications
1.pcb manufacture service,Parts procurement,PCBA2.PCBA protorype 10-15 days
3.More than 10 years experience,good quality
pcb manufacturing service:
pcb printed circuit board
one stop pcb service,pcb,pcb assembly,components sourcing,pcb test,fast delivery
1.Product Technical Specification of Moko Technology Ltd
Item | Parameter | ||
Double sided | Multilayer | ||
Number of Layers | 2 | 4~16 | |
Copper Thickness | 0.25~3.0OZ | 0.5~3.0OZ | |
Base Board Thickness | 0.3~3.2mm | 0.6~3.2mm | |
Incombustibility | 94V-0 | 94V-0 | |
Peelable resistance | 12.3N/cm | 12.3N/cm | |
Twist | ≤0.5% | ≤0.5% | |
Insulation resistance | ≥1011Ω | ≥1011Ω | |
Test voltage | 10-300V | 10-300V | |
Finished board area | 560×970mm | 560×970mm | |
Min. Line Width and Spacing | 0.1/0.1mm | 0.1/0.1mm | |
Copper thickness in hole | ≥25.0um | ≥25.0um | |
Mini. pad diameter | Inner layer | 0.05mm | |
Out layer | 0.076mm | 0.076mm | |
Mini. Hole Diameter | 0.25mm | 0.20mm | |
Hole tolerance | PTH | ±0.076mm | ±0.076mm |
NPTH | ±0.05mm | ±0.05mm | |
Hole location tolerance | ±0.076mm | ±0.05mm | |
profile tolerance | Routing | ±0.1mm | ±0.1mm |
Punching | ±0.13mm | ±0.13mm | |
Solder mask bridge ability | ≥0.1mm | ≥0.075mm | |
Solder mask rigidity | 6H | 6H | |
Solderable test | 245 Degrees Centigrade 5 second | 245 Degrees Centigrade 5 second | |
Thermal cycling ability | 288 Degrees Centigrade 10 second | 288 Degrees Centigrade 10 second | |
Surface Finishing | OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger | OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger |
2.Quotation requirement
1)PCB FILE(PCB GERBER FILE)
2)BOM LIST
3)Quantity
3.MOKO Factory View
Company Profile
MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB.
We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders.
We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.
We deeply believe that our good service and experience will completely meet you need. Integrity, value and innovation are the forces that drive our success. We are the smart choice for you and the trusted source at the center of your deal. Welcome the win-win situation together.
Contact Us
- Shenzhen Moko Technology Ltd.
- Contact nameRosina Zeng
- Phone86-755-23573370
- Address#401,U2,BLDG2,Guanghui Tech park Minqing Rd Longhua Shenzhen,Guangdong
