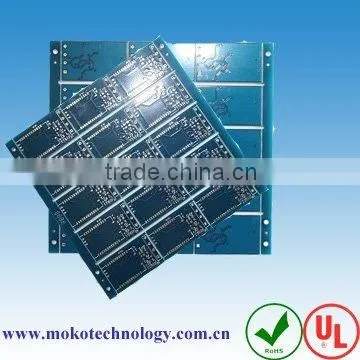

2 Layer PCB Board(solder Mask Blue)

Name: 2 Layer PCB Board(solder Mask Blue)
Brand: MOKO
SKU: 106349733
Availability: InStock

Shenzhen Moko Technology Ltd. Gold Verified Supplier

5Yrs

US$ 0.1 - 100 MOQ: 100 Units

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

MOKO

Model Number:

MKPCB1018001

Payment & Shipping

Payment Methods:

Port of Shipment:

ShenZhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name MOKO

Model Number MKPCB1018001

Base Material FR-4,CEM-1,CEM-3,Hight TG,FR4 Halogen Free,FR-1,FR-2

Copper Thickness 1oz

Board Thickness 1.5mm

Min. Hole Size 0.50mm

Min. Line Width 0.10mm(3mil)

Min. Line Spacing 0.10mm(3mil)

Surface Finishing Hasl lead free

Specifications

PCB Board and PCB Assembly
1.Express fr4 pcb prototypes and mass production
2.Experienced staff
3,pcb,pcb assembly,component

Product Technical Specification of Moko Technology Ltd
Item		Parameter
		Double sided	Multilayer
Number of Layers		2	4~16
Copper Thickness		0.25~3.0OZ	0.5~3.0OZ
Base Board Thickness		0.3~3.2mm	0.6~3.2mm
Incombustibility		94V-0	94V-0
Peelable resistance		12.3N/cm	12.3N/cm
Twist		≤0.5%	≤0.5%
Insulation resistance		≥1011Ω	≥1011Ω
Test voltage		10-300V	10-300V
Finished board area		560×970mm	560×970mm
Min. Line Width and Spacing		0.1/0.1mm	0.1/0.1mm
Copper thickness in hole		≥25.0um	≥25.0um
Mini. pad diameter	Inner layer		0.05mm
	Out layer	0.076mm	0.076mm
Mini. Hole Diameter		0.25mm	0.20mm
Hole tolerance	PTH	±0.076mm	±0.076mm
	NPTH	±0.05mm	±0.05mm
Hole location tolerance		±0.076mm	±0.05mm
profile tolerance	Routing	±0.1mm	±0.1mm
	Punching	±0.13mm	±0.13mm
Solder mask bridge ability		≥0.1mm	≥0.075mm
Solder mask rigidity		6H	6H
Solderable test		245 Degrees Centigrade 5 second	245 Degrees Centigrade 5 second
Thermal cycling ability		288 Degrees Centigrade 10 second	288 Degrees Centigrade 10 second
Surface Finishing		OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger	OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger
