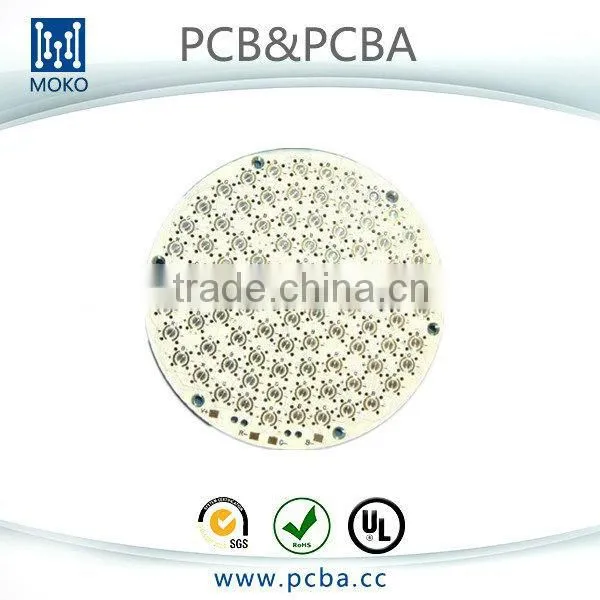

Help CenterMK Micro Aluminum PCB Board for LED
Related Products
Specifications
1.Rigid board with FR4 base materailtotype to mass volume are available
3.surface finish:HALS
4.T/T,L/C,Paypal
Welcome to MOKO pcb, where Quality is a Habit and Zero defect is Goal and Customer satisfaction is Pride!
Special: NO MOQ, from Prototype, Small Volume to Middle Volume production.
Moko, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
Detailed Specification of PCB Manufacturing
1 |
layer |
1-18 layer |
|
2 |
Material |
FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,FR-1,FR-2 |
|
3 |
Board thickness |
0.2mm-4mm |
|
4 |
Max.finished board side |
800*508mm |
|
5 |
Min.drilled hole size |
0.25mm |
|
6 |
min.line width |
0.075mm(3mil) |
|
7 |
min.line spacing |
0.075mm(3mil) |
|
8 |
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating |
|
9 |
Copper thickness |
0.5-4.0oz |
|
10 |
Solder mask color |
green/black/white/red/blue/yellow |
|
11 |
Inner packing |
Vacuum packing,Plastic bag |
|
12 |
Outer packing |
standard carton packing |
|
13 |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
|
14 |
Certificate |
UL,ISO9001,ISO14001,ROHS,CQC |
|
15 |
profiling punching |
Routing,V-CUT,Beveling |
|
16. providing OEM service to all sorts of printed circuit board assembly | |||
Over 10 years' experience in PCB and PCB Assembly will make you to be HAPPY with
MOKO
Quote requirement:
· Gerber file of the bare PCB board
· BOM (Bill of material) for assembly
· To short the lead time, please kindly advise us if there is any acceptable components substitution.
· Testing Guide & Test Fixtures if necessary
· Programming files & Programming tool if necessary
· Schematic if necessary
Part of Our Products
Our Superiority
1.High efficiency&Experience
We can provide one stop service.Established in 2004, with many years hard-working and constant innovation,we have
grown up into a professional PCB&PCBA manufacturer. We have our own independent research and development
department and sophisticated quality control system
--------------------------------------------------------------------------------
2.Quality
Our product are manufactured according to the UL/Rohs standards to insure quality assemblies from start to finish. Whether
it's a simple custom or not.Product or a complex turnkey production run, We will adhere to the highest quality standards.
--------------------------------------------------------------------------------
3.Protecting your interests Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality
contract and treat your important documentation as they would their own.
--------------------------------------------------------------------------------
4.Service
We can provide 24hours service for you. We pride ourselves on our ability to custom tailor programs around our customers'
needs.We take time to listen to your unique business needs and then set out to surpass them.
Send Inquiry to This Supplier
