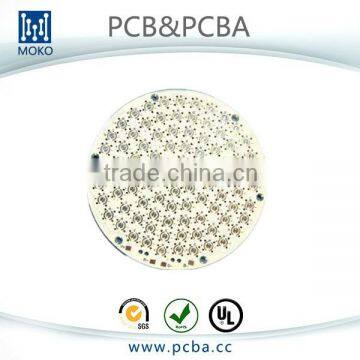

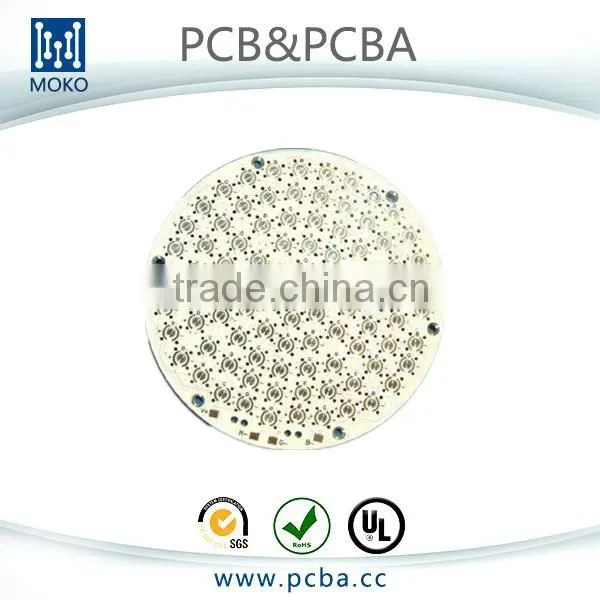

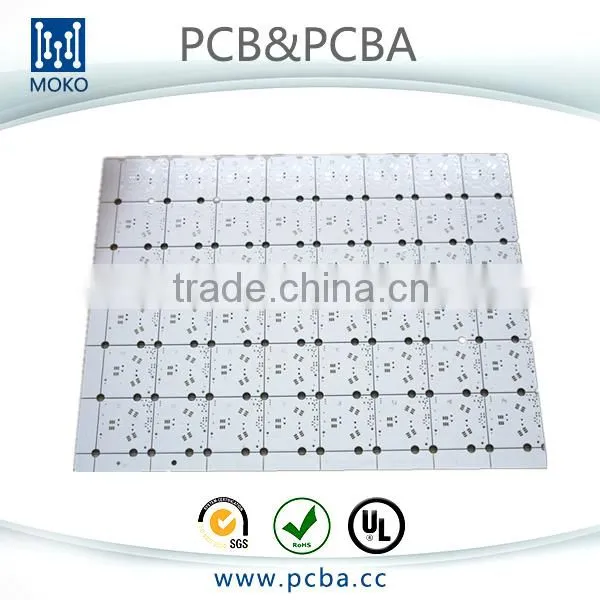

Help CenterOEM Emergency Light Circuit Board,94v0 Circuit Board ,Printed Circuit Board
Related Products
-
Touch Lamp Circuit Board,Electronic Circuit BoardUS$ 0.1 - 10MOQ: 1 Piece -
MCPCB Aluminum Based LED PCB ManufacturerUS$ 1.05 - 1.95MOQ: 1 Piece
-
Flash LED Light PCB, Street Flash LED Light Circuit BoardUS$ 1 - 10MOQ: 1 Piece
-
Led Parts PCB Assembly Made in ChinaUS$ 1 - 100MOQ: 1 Piece
-
Aluminum Based Round Led Pcb Assembly BoardUS$ 1 - 100MOQ: 1 Piece
Welcome to MOKO, your honest PCB and PCBA partner
---- Famous for PCBA on GPS module,Medical care devices,Car controller PCBA ,Vending machine controller, etc
Quality First!
Customers First!
Making you more successful!
MOKO TECHNOLOGY LTD was founded in 2001, located in Shenzhen. We mainly offer Electronics Assembly Service. From our ISO9001:2008 certified factory, we turn out up to 10000 square meter of PCBs and 400000 PCBAs monthly. For assembly, utilizing 8 high-speed SMT lines from Yamaha and Sony, to meet customers' need.
MOKO offer PCBA for kickstarters, engineering offices and global elctronic companies.
Our PCBA are apply for medical care devices; vending machine; GPS tracker; Smoke alarm; Food detector; Blood pressure instrument; fish finder; communication board and other fields.
Moko atended exhibitions,EXPO Munish 2012,2014; EXPO Moscow 2013,2015; HK Electronic Fairs.
1. PCB fabrication.
2. Turnkey PCBA: PCB+components+SMT and through-hole assembly+enclosure molding&housing
3. PCB clone: reverse engineering, with all compoentns compeleted.
Our advantage:
1. Free programming and free functional test, free package.
2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% funtional test.
3. Professional service. ISO SMT and through hole assembly, over 10 years experience.
4. Certification for electronics: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001
5. Warranty period for PCBA: 2 years.
print circuit board,High quality PCB board,PCB assembly
PCB Technical Specification
| Number of Layer | 1,2,4 or 6,upto 18 layer |
| Order Quantity | 1 to 50,000 |
| Board Shape | Retangular,round,slots,cutouts,complex,irregular |
| Board Type | Rigid, Flexible, Rigid-flexible |
| Board Material | FR-4 glass epoxy, FR-4 high Tg, Rohs compliant,Aluminum,Rogers,etc. |
| Board Cutting | Shear,V-score,Tab-routed |
| Board Thickness | 0.2-4.0mm, Flex 0.01-0.25mm |
| Copper Weight | 1.0, 1.5, 2.0 oz |
| Solder Mask | Double-sided green LPI,Also support Red,White,Yellow,Blue,Black |
| Silk Screen | Double-sided or single-sided in white,yellow,black,or negative |
| Silk Screen Min Line Width | 0.006'' or 0.15mm |
| Max Board Dimensions | 20 inch*20inch or 500mm*500mm |
| Min Trace/Gap | 0.10mm, or 4mils |
| Min Drill Hole Diameter | 0.01'',0.25mm, or 10mils |
| Surface Finish | HASL,Nickle,Immersion Gold,Immersion Tin,Immersion Silver,OSP,etc. |
| Board Thickness Tolerance | ±10% |
| Copper Weight Tolerance | ± 0.25 oz |
| Minimal Slot Width | 0.12'', 3.0mm, or 120mils |
| V-Score Depth | 20-25% of board thickness |
| Design File Formate | Gerber RS-274,274D,Eagle and AutoCAD's DXF,DWG |
PCBA Capabilities
| Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly | SMT,Thru-hole |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| Components |
Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
| Bare Board Size |
Smallest:0.25*0.25 inches Largest:20*20 inches |
| File Formate |
Bill of Materials Gerber files Pick-N-Place file |
| Types of Service | Turn-key,partial turn-key or consignment |
| Component packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same day service to 15 days service |
| Testing | Flying Probe Test,X-ray Inspection AOI Test |
| PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Technical requirement for pcb&pcb assembly:
1. Professional Surface-mounting and Through-hole soldering Technology
2. Various sizes like 1206,0805,0603 components SMT technology
3.ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
4.PCB Assembly With UL,CE,FCC,Rohs Approval
5.Nitrogen gas reflow soldering technology for SMT.
6.High Standard SMT&Solder Assembly Line
7. High density interconnected board placement technology capacity.
Quotation requirement for pcb&pcb assembly:
1. PCB gerber file
2. BOM list for PCBA
3. Sample of PCB and PCBA
4.Test method for PCBA
PCB Lead time:
| Single/double side | 4 layer | 6 layer | Above 8 layer | HDI | |
| Sample lead time(Normal) | 5-6 | 6-7 | 7-8 | 10-12 | 15-20 |
| Sample lead time(Fastest) | 48-72 hours | 5 | 6 | 6-7 | 12 |
| Mass production lead time(First batch) | 7-9 | 10-12 | 13-15 | 16 | 20 |

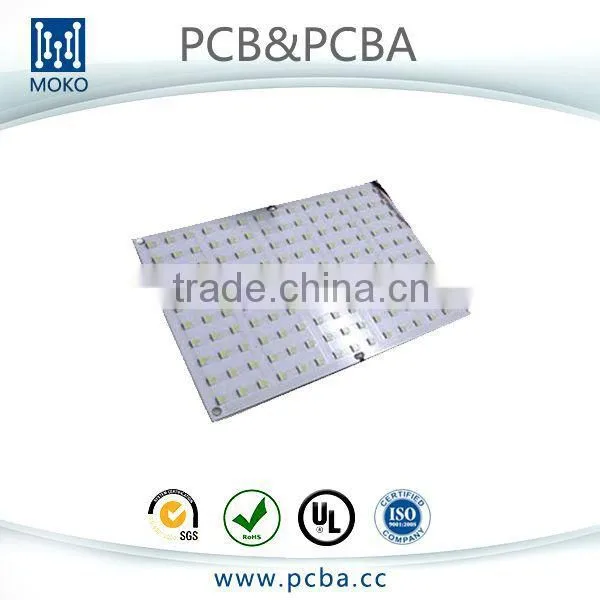

relating product show
Inner Carton:
Outer Carton:
Q: What files do you use in PCBA fabrication?
A: Gerber or Eagle, BOM listing, PNP and Components Position
Q:Is it possible you could offer sample?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
Q: How can I know the process of my PCBA production?
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing
Q: How can I make sure the quality of my PCBAs?
A: We ensure that each piece of PCBA products work well before shipping. We'll test all of them according to your test procedure. Also if there are any defect items during the shipping, we also can be free to repair for you.
