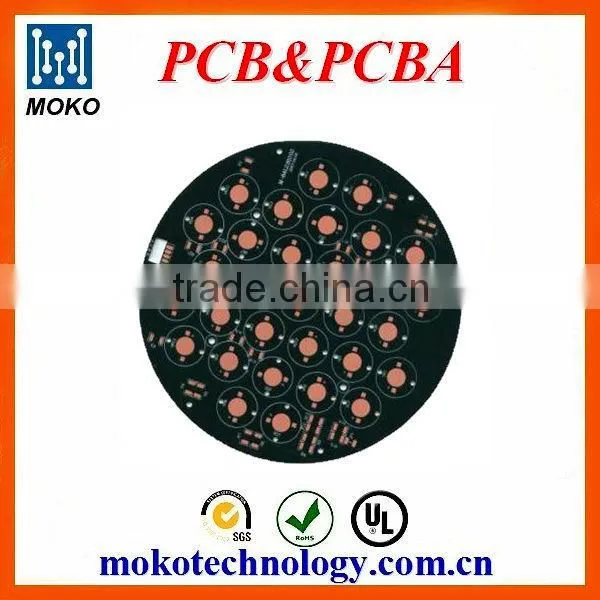

Round LED display PCB boards
- 1000 Square Meter / Square Meters per Month
- ShenZhen HongKong
- T/T Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Moko | Model Number: | MKPCBAPP0402 |
Base Material: | FR4,CEM-1,Rogers,Alu. | Copper Thickness: | 0.5oz-4oz | Board Thickness: | 0.25mm-4mm |
Min. Hole Size: | 0.25mm | Min. Line Width: | 0.075mm | Min. Line Spacing: | 0.075mm |
Surface Finishing: | HASL,ENIG,OSP |
Packaging Details
Inner packing: Vaccum packing/Plastic bag
Outer packing: Standard carton packing
Product Description
Specifications
SMT PCBA,RoHS,ISO,UL,94v0Double sided SMT,wave soldering
AOI,X-ray test
20-25 days lead time
L/C,T/T,Western Union,PayPal
Welcome to Moko
-----Factory was built in 2001, Over 10 years PCB&PCBA experience
-----One stop PCBA, Yamaha SMT lines
-----RoHS, ISIO9001, UL, CE certificaton
-----T/T, PayPal, Western Union in advance
Contact with us:
Moko offers raw materials, parts, and PCB assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
PCB Technical Specification
Layer | 1,2,4 or 6,upto 18 layer |
Material | FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2 |
Order Quantity | 1-500,000 |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting | Shear,V-score,tab-routed |
Board thickness | 0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight | 0.5-4 oz |
Solder mask | Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen | Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width | 0.006'' or 0.15mm |
Max board dimensions | 20inch*20inch or 500mm*500mm |
Min drill hole diameter | 0.01'',0.25mm.or 10 mils |
Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance | ± 10% |
Copper weight tolerance | ± 0.25oz |
Minimal slot width | 0.12'',3.0mm,or 120mils |
V-score depth | 20-25% of board thickness |
Plated through holes | Yes |
Sink holes | Yes |
Design file format | Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
PCB Lead Time
Single,Double sided | Four layer | Six layer | Above eight layer | HDI | |
Sample lead time(Normal) | 5-6 | 6-7 | 7-8 | 10-12 | 15-20 |
Sample lead time(Fastest) | 48 to 72 hours | 5 | 6 | 6-7 | 12 |
Mass production lead time(First batch) | 7-9 | 10-12 | 13-15 | 16 | 20 |
PCB Assembly Capabilities
Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
Type of Assembly | SMT,Thru-hole |
Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
Components | Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
Bare Board Size | Smallest:0.25*0.25 inches Largest:20*20 inches |
File Formate | Bill of Materials Gerber files Pick-N-Place file |
Types of Service | Turn-key,partial turn-key or consignment |
Component packaging | Cut Tape,Tube,Reels,Loose Parts |
Turn Time | Same day service to 15 days service |
Testing | Flying Probe Test,X-ray Inspection AOI Test |
PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Detailed Terms for PCB Assembly
Technical requirement for PCB&PCB assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
---- ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
---- PCB Assembly With UL,CE,FCC,Rohs Approval
---- Nitrogen gas reflow soldering technology for SMT.
---- High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.
Quote requirement for PCB&PCB assembly:
---- Gerber file and Bom list
---- Clear pics of PCBA or PCBA sample for us
---- Test method for PCBA
Moko PCB Assembly Show
Moko Factory Overview
Contact with us:
Company Profile
MOKO TECHNOLOGY LTD is an expert at PCB and PCBA manufacture, based in Shenzhen, Guangdong, China. We are specialized in manufacturing Single-Sided Boards, Double-Sided Boards and multilayer PCB.
We are honored as the excellent supplier of many companies all around this world. We can offer all kinds of services including PCB and PCB assembly sample orders and batch orders.
We have got the ISO9001:2000, ISO14001, and UL RoHS certifications. Now our PCB daily capacity reaches 1000 square meters, and PCB assembly can reach 100,000,000 units per month.
