natrual molding injection CNC machining Nylon polyamide PA6 pulley wheels with bearings manufacturer
- 10000 Kilogram / Kilograms per Month
- GuangZhou port
- T/T L/C D/P D/A Credit Card PayPal
- timing pulley
- Electric Conveyor Driving Pulley
- OEM Guide Wheel Pulley OD30mm *L45mm Titanium Carbide Roller for Steel Wire Output Machine
- titanium carbide roller pulley wheels wire guide pulley for steel wire rod mill
- High Quality Auto Parts Timing Belt Tensioner 24810-26020 2481026020 24810-26010 2481026010 For Hyundai Accent
- High quality Straight Line single Roller Aluminum Cable roller
Product Details
Type: | Flat Belt | Material: | Nylon | Place of Origin: | Guangdong, China |
Brand Name: | engineering plastic | Model Number: | nylon pulley |
Product Description

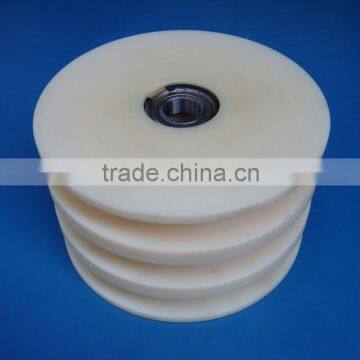

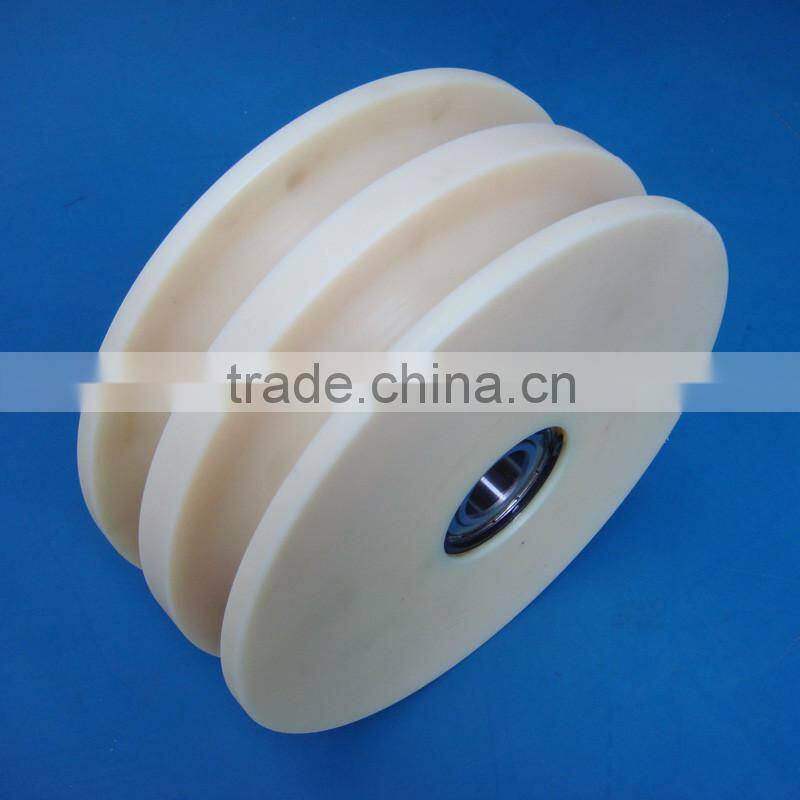

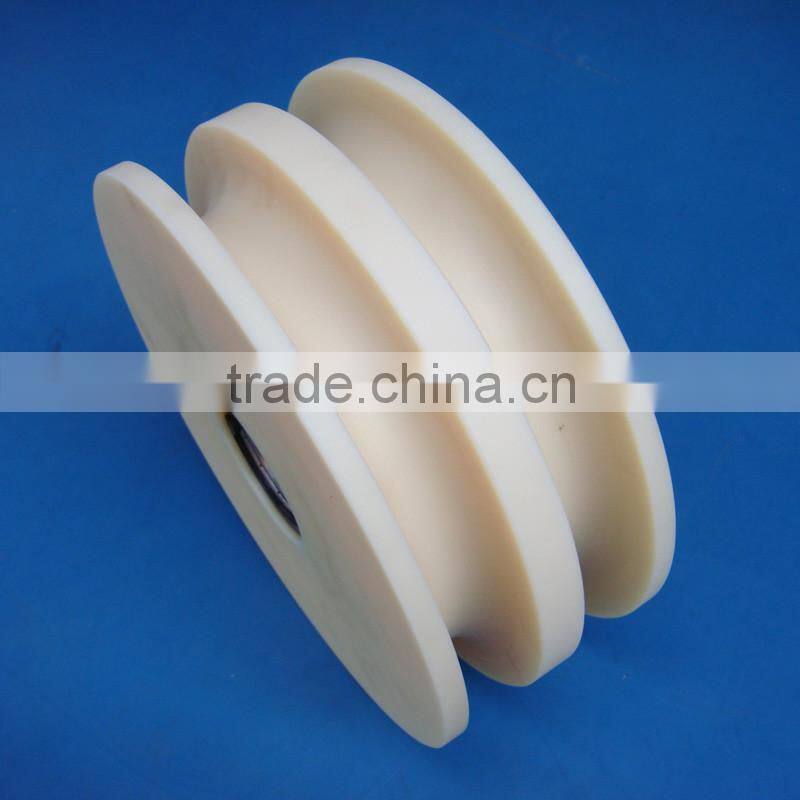

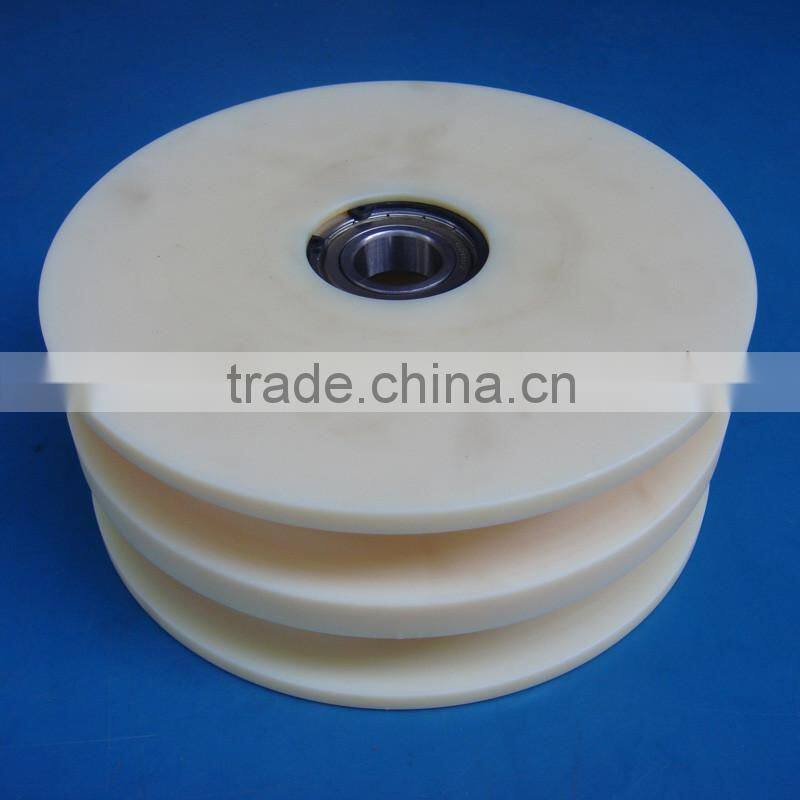

natural Nylon polyamide PA6 palstic pulley wheels with bearings
MC Nylon,means Monomer Casting Nylon, is a kind of engineering plastics used in comprehensive industries, has been applied almost every industrial field.
1.Oil Nylon (Green color):
Excellent wear resistant, sliding frictional properties, abrasion resistance and stick slip performance, self-lubrication.
2.MC Nylon + MSO2(Light black color)
Impact-resistance and fatigue-resistance of casting nylon, strong loading capacity and wear-resistance.
It has a wide application in making gear, bearing, planet gear, seal circle and so on.
3. MC Nylon (Natural/White color):
High performance of wear-resistance, corrosion-resistance, self-lubrication, vibration-absorption, noise-absorption.
econocal cost, ideal substitutes of bronze, stainless steel, Babbitt alloy , PTFE and so on
It is suitable for making the bearing and other wear mechanical parts.
4.Oil MC901(Blue color)
Striking blue color, excellent toughness, flexibility, fatigue-resistance and so on.
It is the perfect material of gear, gear bar, transmission gear and so on.
5.Oil Nylon + Carbon (Black Color)
Very compact and crystal structure, high mechanical strength, wear-resistance, anti-aging, UV resistance and so on. It is suitable for making the bearing and other wear mechanical parts.
nylon PA6 pulley Characteristics:
Good abrasion resistance
Good at dampening
Good chemical stability against organic solvents and fuels
Excellent electrical properties, ease of printing and dyeing
High strength and stiffness
High impact and notch impact strength
High heat deflection temperature
Low coefficient of friction
Nylon pulley Property:
Property | Item No. | Unit | MC Nylon (Natural) | Oil Nylon+Carbon (Black) | Oil Nylon (Green) | MC901 (Blue) | MC Nylon+MSO2 (Light black) | |
Mechanical Properties | 1 | Density | g/cm3 | 1.15 | 1.15 | 1.135 | 1.15 | 1.16 |
2 | Water absorption (23℃ in air) | % | 1.8-2.0 | 1.8-2.0 | 2 | 2.3 | 2.4 | |
3 | Tensile strength | MPa | 89 | 75.3 | 70 | 81 | 78 | |
4 | Tensile strain at break | % | 29 | 22.7 | 25 | 35 | 25 | |
5 | Compressive stress(at 2%nominal strain) | MPa | 51 | 51 | 43 | 47 | 49 | |
6 | Charpy impact strength (unnotched) | KJ/m2 | No brak | No break | ≥50 | No BK | No break | |
7 | Charpy impact strength (notched) | KJ/m2 | ≥5.7 | ≥6.4 | 4 | 3.5 | 3.5 | |
8 | Tensile modulus of elasticity | MPa | 3190 | 3130 | 3000 | 3200 | 3300 | |
9 | Ball indentation hardness | N/mm2 | 164 | 150 | 145 | 160 | 160 | |
10 | Rockwell hardness | - | M88 | M87 | M82 | M85 | M84 | |
Thermal Properties | 11 | Thermal conductivity at 23℃ | W/(K.m) | 0.29 | 0.29 | 0.28 | 0.29 | 0.30 |
12 | Melting temperature | ℃ | 223 | 223 | 220 | 220 | 220 | |
13 | Glass transition temperature | ℃ | -- | -- | -- | -- | -- | |
14 | Temperature of deflection(1.8MPa) | ℃ | 80 | 80 | 75 | 80 | 80 | |
15 | Max allowable working temperature in air for short periods | ℃ | 170 | 180 | 165 | 170 | 170 | |
16 | Max allowable working temperature in air continuously | ℃ | 105 | 120 | 105 | 105 | 105 | |
17 | Coefficient of liner thermal expansion (at 23-150℃) | m/(m.K) | 90x10-6 | 90x10-6 | 90x10-6 | 90x10-6 | 90x10-6 |
