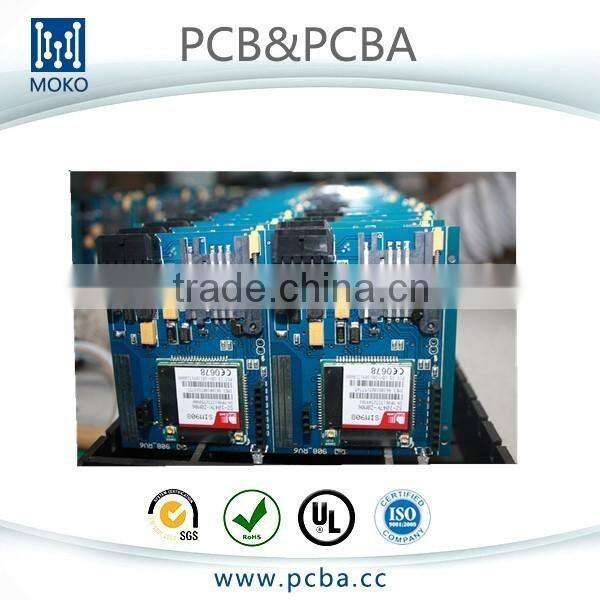

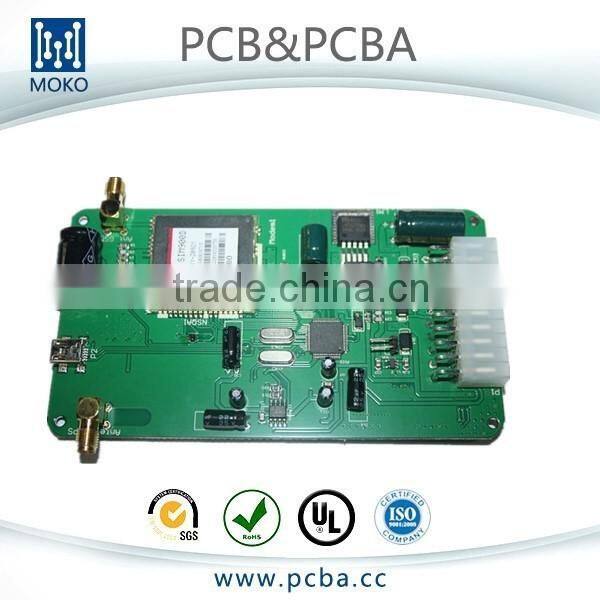

Car gps tracker PCB, gps tracker kids PCB, pet gps tracker PCB
- sim808, sim908... other gps module & other components sourcing
- GPS PCB board fabrication
- PCB board with cpmponents assembly
- programming IC& function test
Welcome To Moko
One stop Electronic manufacturing service
Moko, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
Electronics Printed Circuit Board Manufacture
ROHS Approved Assembled Pcb Board

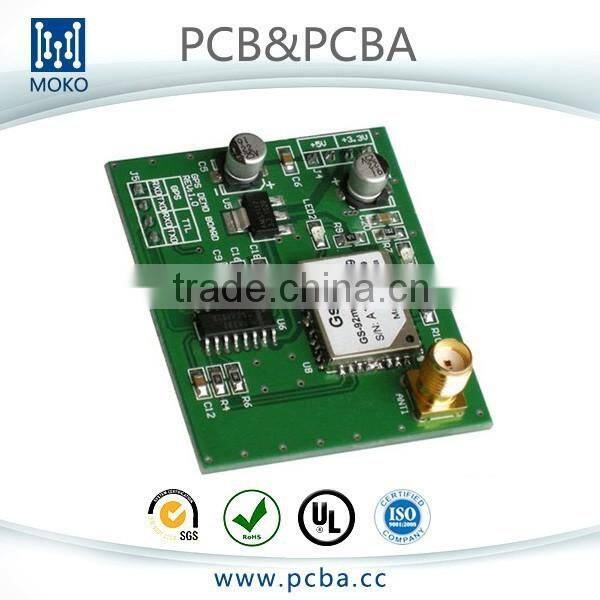

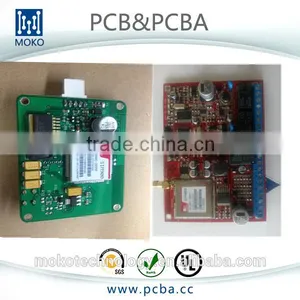

Other GPS tracker board we made:
PCB Technical Specification
layer |
1-18 layer |
Material |
FR-4,CEM-1,CEM-3,High TG,FR4 Halogen Free,FR-1,FR-2 |
Board thickness |
0.2mm-4mm |
Max.finished board side |
800*508mm |
Min.drilled hole size |
0.25mm |
min.line width |
0.075mm(3mil) |
min.line spacing |
0.075mm(3mil) |
Surface finish/treatment |
HALS/HALS lead free,Chemical tin,Chemical Gold, Immersion gold Immersion Silver/Gold,Osp,Gold Plating |
Copper thickness |
0.5-4.0oz |
Solder mask color |
green/black/white/red/blue/yellow |
Inner packing |
Vacuum packing,Plastic bag |
Outer packing |
standard carton packing |
Hole tolerance |
PTH:±0.076,NTPH:±0.05 |
Certificate |
UL,ISO9001,ISO14001,ROHS,CQC |
profiling punching |
Routing,V-CUT,Beveling |
PCBA Capabilities
Quantity |
Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
Type of Assembly |
SMT,Thru-hole |
Solder Type |
Water Soluble Solder Paste,Leaded and Lead-Free |
Components |
Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
Bare Board Size |
Smallest:0.25*0.25 inches Largest:20*20 inches |
File Formate |
Bill of Materials Gerber files Pick-N-Place file |
Types of Service |
Turn-key,partial turn-key or consignment |
Component Packaging |
Cut Tape,Tube,Reels,Loose Parts |
Turn Time |
Same day service to 15 days service |
Testing |
Flying Probe Test,X-ray Inspection AOI Test |
PCB Assembly Process |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
