Specifications

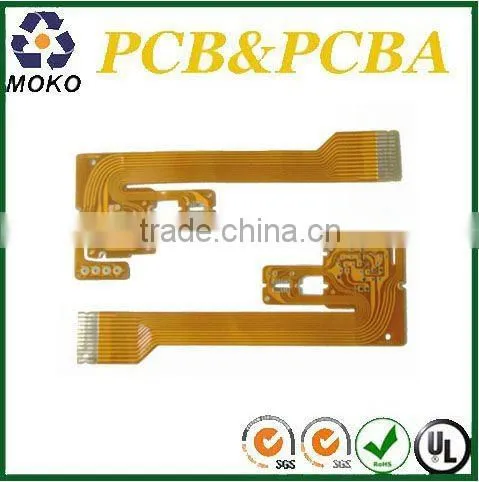

1.Flexible PCB munafacturer China supplier Moko2.Material Fr4.CEM-3,CEM-1,Rogers
3.Fast delivery time
4.Better price
Welcome to Moko
pcb
We are a profesional laptop pcb manufacturer in China, can supplier lots design and multilayer pcb to you. Pls contact with me from below system if you have any interesting in our products.
This is 4 layer pcb with top and bottom picture. We could offer 4 layer pcb and 4 layer pcb and pcb assembly service for our customers.
Technical requirements:
Layer:4 layer
Thickness:0.8mm
Finish coating:
Solder Mask:Green
Material: Fr-4
Min.Hole Size:0.1mm(4mil)
Min.Line width/Space:0.1mm/0.1mm(4mil/4mil)
Special Technique:Blind &buried via+Impedance control
Reference-Our Production Capability for Rigid PCB:
1.Layer: 1-30
2.Board finished thickness:0.21mm-7.0mm
3.Material: FR-4,CEM-1,CEM-3,High TG,FR4 halogen Free,Rogers
4.Max.finished board size:23*25(580*900mm)
5.Min.drilled hole size:3mil(0.075mm)
6.Min.Line width:3mil(0.075mm)
Min.Line spacing:3mil(0.075mm)
7.Surface finish/treatment: HASL/HASL lead free,HAL,Chemical tin,Chemical Gold,Immersion Silver/Gold,OSP, Gold plating.
8.Copper thickness:0.5-7.0 oz
9.Solder mask color: Green/yellow/black/white/red/blue
10.Copper thickness in hole: >25.0 um(>1mil)
11.Inner packing: Vaccum packing/Plastic bag
Outer packing: Standard carton packing
12.Shape tolerance:±0.13
Hole tolerance:PTH: ±0.076 NPTH: ±0.05
13.Cerificate: UL.ISO9001.ISO14001.SGS.ROHS.
14.Special requirements:Buried and blind vias+Controlled impedance+BGA
15.Profilling:Punching.Routing.V-CUT.Beveling
16.Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.
Product/Service: PCB, PCBA, printed circuit board, PCB assemble, SMT, FPCB, FPC, Rigid and Flex board, Rigid Printed circuit board
Moko factory
