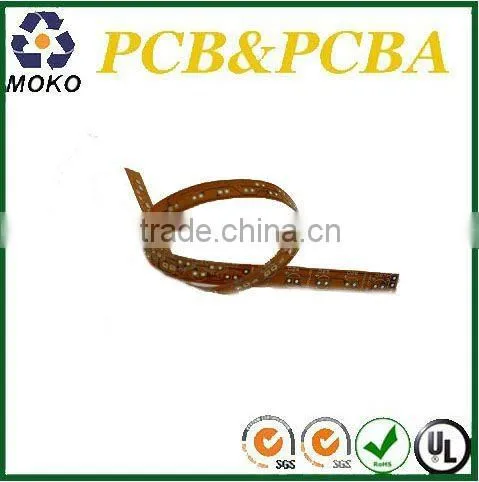

Help CenterLED FPC Board
Related Products
Specifications
1.LED Board,FPC Board,LED FPC Fabricate2.UL,SGS,Rohs Certificate
3.Competitive Price,High Quality
4.Fast delivery,OEM Parts
Welcome To Moko
we could provide high quality,competitive price and rapidly pcb service,could meed all kinds of requirements of techniques and customers needs
1: Material: FR-4, CEM-1, CEM-3,Aluminum
2: Thickness: 0.21mm-7.0mm
3: Cerificate: UL. ISO9001. ISO14001. SGS. RoHS
Our PCB got UL, SGS, RoHS, ISO9002 cerfitifcates, and are used to a wide range of fields such as computers, digital porducts, medical equipment, automobiles, communication devices, military, industrial control and aviation.
Product process capability
1, Layer: 1-30
2, Board finished thickness: 0.21mm-7.0mm
3, Material: FR-4, CEM-1, CEM-3, High TG, FR4 halogen Free, Rogers
4, Max. Finished board size: 23*25(580*900mm)
5, Min. Drilled hole size: 3mil(0.075mm)
6, Min. Line width: 3mil(0.075mm)
Min. Line spacing: 3mil(0.075mm)
7, Surface finish/treatment: HASL/HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating.
8, Copper thickness: 0.5-7.0 oz
9, Solder mask color: Green/yellow/black/white/red/blue
10, Copper thickness in hole: >25.0 um(>1mil)
11, Inner packing: vacuum packing/Plastic bag
Outer packing: Standard carton packing
12, Shape tolerance: ± 0.13
Hole tolerance: PTH: ± 0.076 NPTH: ± 0.05
13, Cerificate: UL. ISO9001. ISO14001. SGS. RoHS.
14, Special requirements: Buried and blind vias+Controlled impedance+BGA
15, Profilling: Punching. Routing. V-CUT. Beveling
16, Provides OEM Services to all sorts of printed circuit board assembly as we as electronic encased products.
All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us.
