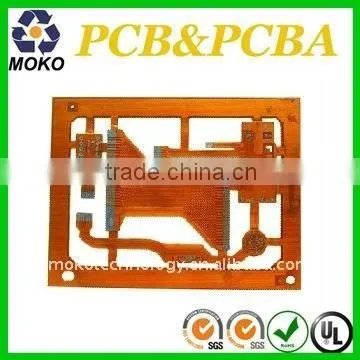

Multilayer Prototype Flex Pcb

Inner packing: Vaccum packing/Plastic bag
Outer packing: Standard carton packing

Specifications

flex pcb prototype and production
OEM service+100% test
UL,ROHS,CE,SGS
lead time 7-10days
High quality,fast delivery

multilayer flex pcb

Our PCB got UL,SGS,ROHS,ISO9002 cerfitifcates,and are used to a wide range of fields such as computers,digital porducts, medical equipment,automobiles, communication devices,military, industrial control and aviation.



Product process capability

1.Layer:  2-22 layer
2.Product type:Rigid PCB,High Density Inverter PCB,thick copper PCB
3.Materials:FR-4,CEM-3,Teflon,Aluminum Substrate,Rogers,Halogen Free,High Tg
4.Copper Thickness:  140micron(4oz)
5.Min Board Thickness:  0.4mm
6.Max Board Thickness:  5.0mm
7.Min finished Hole Diameter:0.1mm
8.Outerlayerline width/spacing:0.1mm/0.1mm
9.Innerlayerline width/spacing:0.1mm/0.1mm
10.Min aperture:   0.2mm
11.Min Laser drilling:  0.1mm
12.Min Ring Width:  0.11mm
13.Min BGA-bit hole spacing:  0.4mm
14.Resistance Tolerance:  ±10%
15.Minimum Insulation Thickness:  3mil
16.Maximum laser blind hole thickness to diameter ratio:0.8:1
17.Maximum working board size:  520*622mm
18.Drilling Tolerance (PTH):  ±0.075mm
19.Drilling tolerance (NPTH):  ±0.05mm
20.Outline Tolerance (CNC):  ±0.13mm
21.Surface coating:Lead Free HAL,HAL,Flash Gold,Immersion Gold,Immersion Tin,Immersion Silver,OSP,Gold Finger Plating,Carbon Ink Printing,Peelable Blue Mask



PCB production capacity

Double-sided pcb:200000 ft2/Month

Single-sided pcb:320000 ft2/Month

HDI PCB:80000 ft2/Month



All of the above description is to demonstrate the ability of our factory, if you have specific requirements, please contact us.
Product/Service: PCB, PCBA, printed circuit board, PCB assemble, SMT, FPCB, FPC, Rigid and Flex board, Rigid Printed circuit board.
