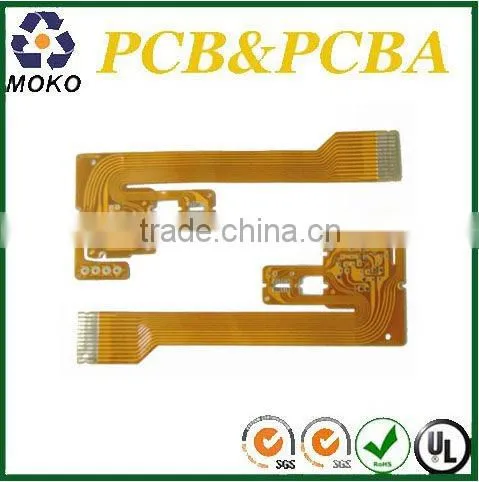

Flexible Pcb Manufacturing

Name: Flexible Pcb Manufacturing
Brand: moko
SKU: 106343889
Availability: InStock

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

moko

Model Number:

moko614L02

Shenzhen Moko Technology Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name moko

Model Number moko614L02

Base Material FR-4

Copper Thickness 1oz

Board Thickness 1mm

Min. Hole Size 0.3mm

Min. Line Width 0.1mm

Min. Line Spacing 0.1mm

Surface Finishing HALS

Specifications

flexible pcb manufacuring
1.PCB,PCBA, components source.
2.PCBs apply for electronic equipment.
3.High precision pcb board

flexible pcb manufacuring

Product Technical Specification of Moko Technology Ltd
Item		Parameter
		Double sided	Multilayer
Number of Layers		2	4~16
Copper Thickness		0.25~3.0OZ	0.5~3.0OZ
Base Board Thickness		0.3~3.2mm	0.6~3.2mm
Incombustibility		94V-0	94V-0
Peelable resistance		12.3N/cm	12.3N/cm
Twist		≤0.5%	≤0.5%
Insulation resistance		≥1011Ω	≥1011Ω
Test voltage		10-300V	10-300V
Finished board area		560×970mm	560×970mm
Min. Line Width and Spacing		0.1/0.1mm	0.1/0.1mm
Copper thickness in hole		≥25.0um	≥25.0um
Mini. pad diameter	Inner layer		0.05mm
	Out layer	0.076mm	0.076mm
Mini. Hole Diameter		0.25mm	0.20mm
Hole tolerance	PTH	±0.076mm	±0.076mm
	NPTH	±0.05mm	±0.05mm
Hole location tolerance		±0.076mm	±0.05mm
profile tolerance	Routing	±0.1mm	±0.1mm
	Punching	±0.13mm	±0.13mm
Solder mask bridge ability		≥0.1mm	≥0.075mm
Solder mask rigidity		6H	6H
Solderable test		245 Degrees Centigrade 5 second	245 Degrees Centigrade 5 second
Thermal cycling ability		288 Degrees Centigrade 10 second	288 Degrees Centigrade 10 second
Surface Finishing		OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger	OSP, HAL, Immersion gold , Gold plating, Rosin, Gold finger
