Welcome to Moko-over 10 years professional PCB&PCBA Manufacturer
Moko, your single point of contact for all of your raw materials, parts, and PCB assembly, also offers:
- Contract Manufacturing
- Engineering Services
- PCB Design & Assembly
- Product Design
- Prototyping
- Cable and Wire Assemblies
- Plastics and Molds
PCB Technical Specification
Layer | 1,2,4 or 6,upto 18 layer |
Material | FR4,CEM1,CEM3,Hight TG,FR4 Halogen Free,FR1,FR2 |
Order Quantity | 1-500,000 |
Board shape | Rectangular,round,slots,cutouts,complex,irregular |
Board type | Rigid,flexible,rigid-flexible |
Board material | FR-4,glass epoxy,FR4 High Tg,Rohs compliant,Aluminum,Rogers,etc |
Board cutting | Shear,V-score,tab-routed |
Board thickness | 0.2~4.0mm,Flex 0.01~0.25'' |
Copper weight | 0.5-4 oz |
Solder mask | Double-sided green LPI,Also support red,white,yellow,blue,black |
Silk screen | Double-sided or single-sided in white,yellow,black,or negative |
Silk screen min line width | 0.006'' or 0.15mm |
Max board dimensions | 20inch*20inch or 500mm*500mm |
Min drill hole diameter | 0.01'',0.25mm.or 10 mils |
Surface finish | HASL,Nickle,Imm Gold,Imm Tin,Imm Silver,OSP etc |
Board thickness tolerance | ± 10% |
Copper weight tolerance | ± 0.25oz |
Minimal slot width | 0.12'',3.0mm,or 120mils |
V-score depth | 20-25% of board thickness |
Plated through holes | Yes |
Sink holes | Yes |
Design file format | Gerber RS-274X,274D,Eagle and AutoCAD'S DXF,DWG |
PCB Lead Time
Single,Double sided | Four layer | Six layer | Above eight layer | HDI | |
Sample lead time(Normal) | 5-6 | 6-7 | 7-8 | 10-12 | 15-20 |
Sample lead time(Fastest) | 48 to 72 hours | 5 | 6 | 6-7 | 12 |
Mass production lead time(First batch) | 7-9 | 10-12 | 13-15 | 16 | 20 |
PCB Assembly Capabilities
| Quantity | Prototype&Low Volume PCB Assembly,from 1 Board to 250,is specialty,or up to 1000 |
| Type of Assembly | SMT,Thru-hole |
| Solder Type | Water Soluble Solder Paste,Leaded and Lead-Free |
| Components | Passive Down to 0201 size BGA and VFBGA Leadless Chip Carriers/CSP Double-sided SMT Assembly Fine Pitch to 0.8mils BGA Repair and Reball Part Removal and Replacement |
| Bare Board Size | Smallest:0.25*0.25 inches Largest:20*20 inches |
| File Formate | Bill of Materials Gerber files Pick-N-Place file |
| Types of Service | Turn-key,partial turn-key or consignment |
| Component packaging | Cut Tape,Tube,Reels,Loose Parts |
| Turn Time | Same day service to 15 days service |
| Testing | Flying Probe Test,X-ray Inspection AOI Test |
| PCB assembly process | Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Detailed Terms for PCB Assembly
Technical requirement for PCB&PCB assembly:
---- Professional Surface-mounting and Through-hole soldering Technology
---- Various sizes like 1206,0805,0603 components SMT technology
---- ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
---- PCB Assembly With UL,CE,FCC,Rohs Approval
---- Nitrogen gas reflow soldering technology for SMT.
---- High Standard SMT&Solder Assembly Line
---- High density interconnected board placement technology capacity.
Quote requirement for PCB&PCB assembly:
---- Gerber file and Bom list
---- Clear pics of PCBA or PCBA sample for us
---- Test method for PCBA

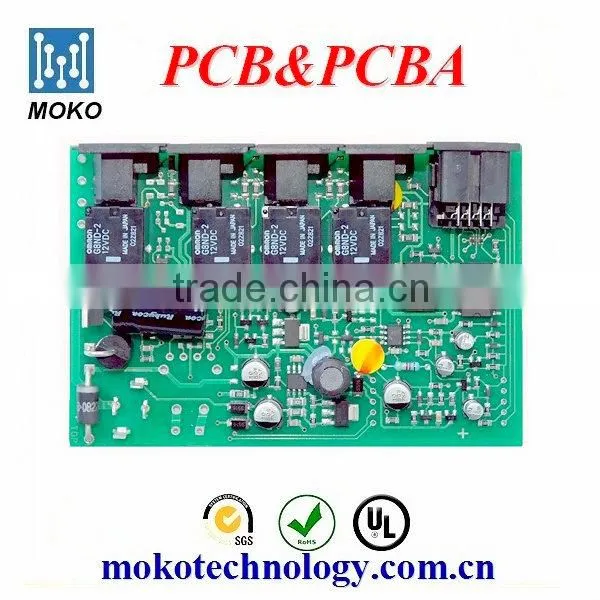

Moko PCB Assembly Show

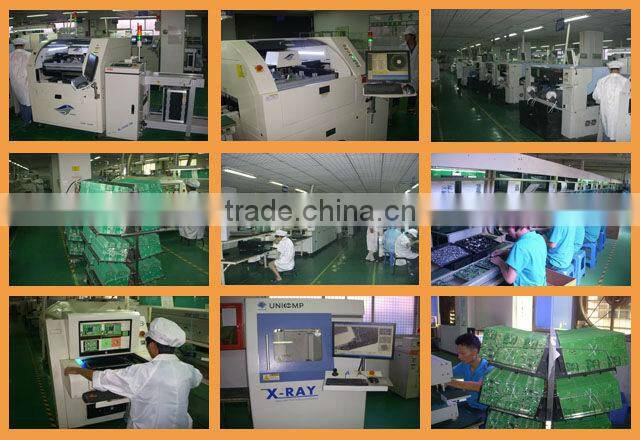

Moko Factory Overview
