KC1325A-3S 1325 cnc router/3 axis cnc machine/atc cnc router/cheap cnc router/woodworking cnc router

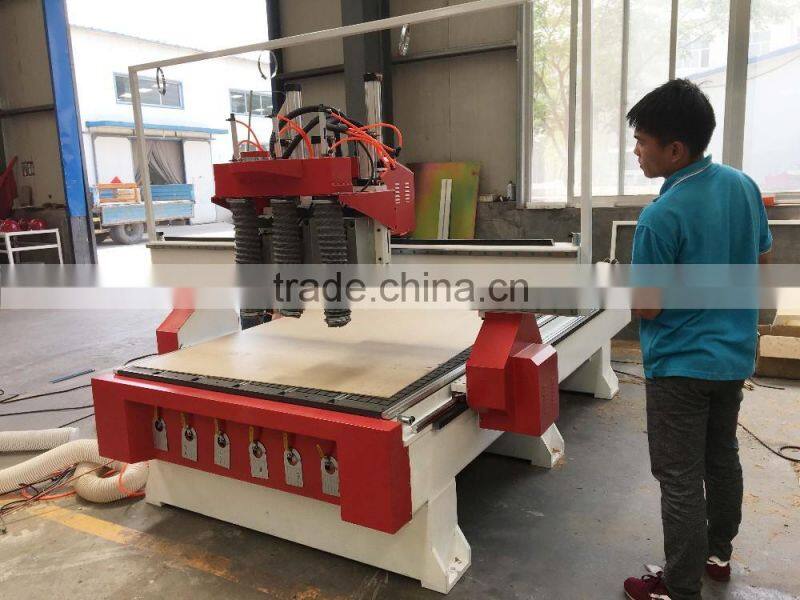

1.The Introduction of Good Design KC1325A3S Wood CNC Router Machine of Woodworking :
The machine is fit for hard wood working, like cutting and engraving on rosewood for furniture,
indoor decoration, and it is qualified for mass-producing of furniture.
2.The Parameter of Good Design KC1325A3S Wood CNC Router Machine of Woodworking:
Working video 1: https://youtu.be/CrQvbkMJLQM
Working video 2: https://youtu.be/msOG48kvrRc
NO. |
Description |
Parameter |
1 |
X,Y,Z Working Area |
1300x2500x200mm |
2 |
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
3 |
X,Y,Z Repositioning Positioning Accuracy |
±0.05mm |
4 |
Lathe Structure |
Welded Structure |
5 |
X, Y,Z Structure |
Square rail |
6 |
X, Y,Z Transmission |
X,Y axis Gear Wheel Transmission,Z axis Ball Screw |
7 |
Max. Consume power |
6.5Kw |
8 |
Max. Motion Speed |
0-32000mm/min |
9 |
Max. Working Speed |
0-20000mm/min |
10 |
Spindle Power Motor |
4.5kw HSD Air-Spindle |
11 |
Spindle Speed |
0-24000RPM |
12 |
Collet |
ER20 |
13 |
Drive Mode |
Servo Motor |
14 |
Control System |
NC Studio or DSP System |
15 |
Interface |
USB |
16 |
Flash Memory |
128M |
17 |
Resolution |
<0.01mm |
18 |
Software |
Typep3/Ucancam/Artcam |
19 |
Command |
G Code, *uoo, *mmg, *plt,*nc |
20 |
Working Voltage |
AC220V/380V, 50/60Hz |
21 |
Running Circumstance |
Temperature: 0℃~45℃ Relative humidity: 30%~75% |
22 |
Packing Size |
Separated: 3110X1500X620mm Integrated: 3350X1950X1990mm |
23 |
Net Weight |
900KG |
24 |
Gross Weight |
1150KG |

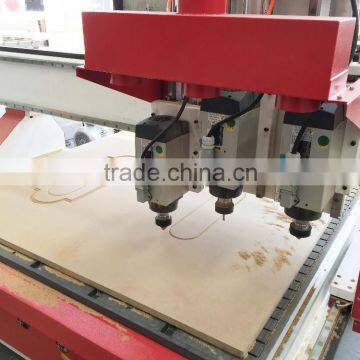

3.The Samples for your reference Good Design KC1325A3S Wood CNC Router Machine of Woodworking :

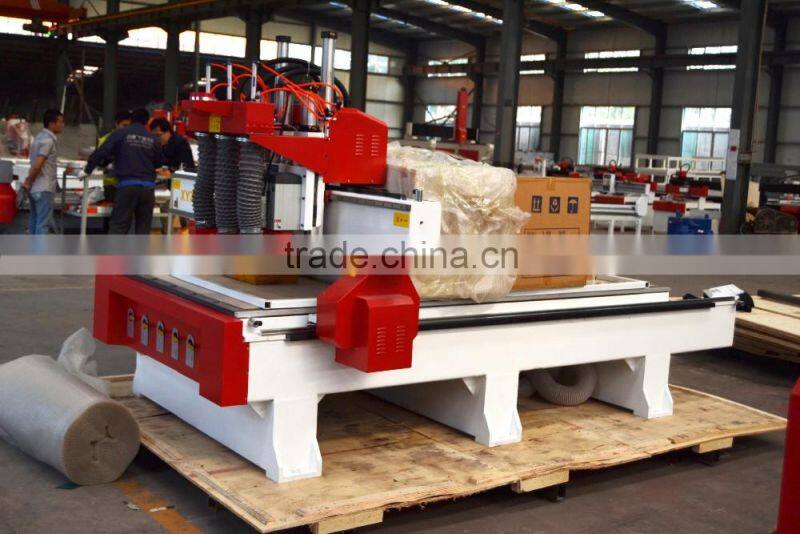

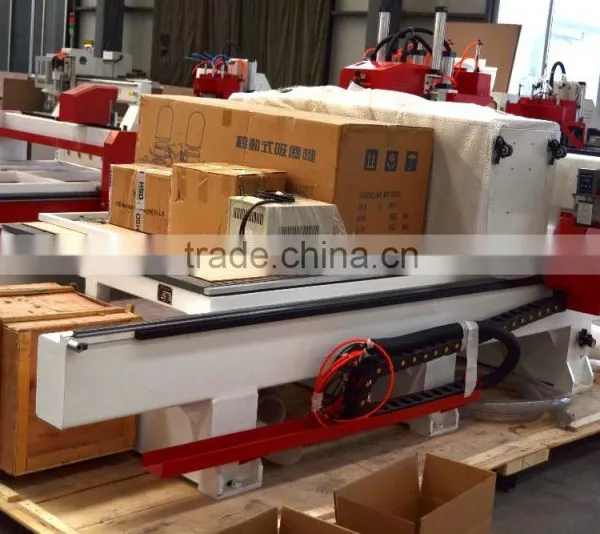

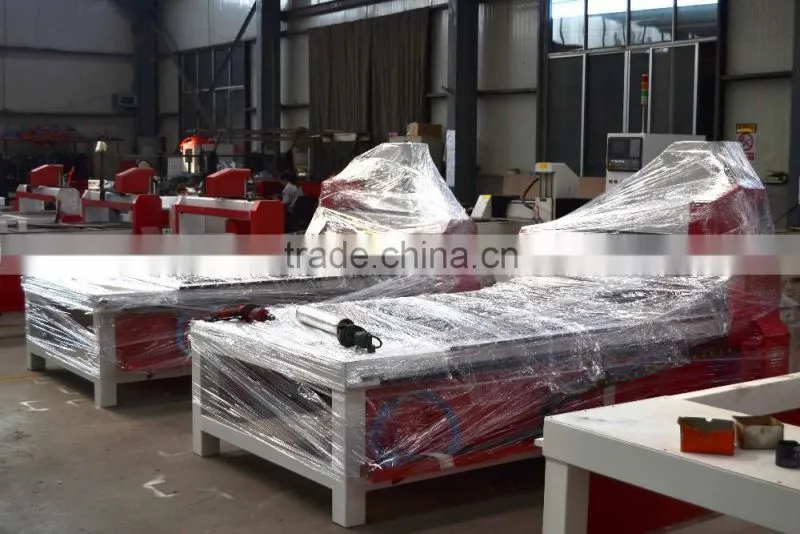

Standard Wooden Box:
♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 24 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery
My WhatsApp:008613361043371
My Skype: kim-woodworkingmachine
1) What payment you accept?
1.T/T inadvance 2.western union 3 . Trade Assurance
2) I did not imported before , how should i do ?
You only need pay to us , we will arrange all the things to you and teach you how to do .we will
prepare all the documents to you , you don't need worry , because we know what you need .
3) Do You Arrange the ship For us?
Yes ,for FOB or CIF price, we will arrange shipment for you.
4) How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
5) My whatsapp:008613361043371
My Skype: kim-woodworkingmachine
