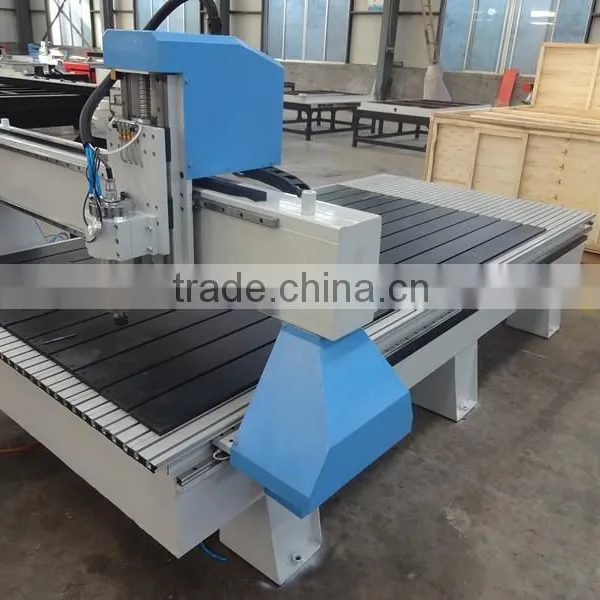

Hot sale KC1325 CNC Router Wood Machine of Wood Working
1.The Introduction of Hot sale KC1325 CNC Router Wood Machine of Wood Working :
1) Lather bed is cast by iron, strong and never out of shape. The unit adopts casting framework,
X,Y axis adopts gear wheel and rack transmission, Z axis adopt precise ball-screw transmission,
imprted high precision square linear, ensuring the working speed and precision
2) It adopts high speed stepper motor and drivers,two motors for Y axis, max working speed is
25/min, with water cooling spindle highly upgrade the processing speed.
3) The machines Adopt advanced DSP digit-control system
4) Well capability: CAD/CAD designing sofeware (type 3/ ArtCAM/ Castmate/ Wentai etc)
5) Vacuum table with 6 vacuum zones, which can absorb different size materials.
6) The vacuum cleaning system offers a clean working environment
2.The Parameter of Hot sale KC1325 CNC Router Wood Machine of Wood Working :
Model |
KC1325 |
X Y Z working area |
1300x2500x180mm |
Guide rail |
square guide rail |
Max moving speed |
28000mm/min |
Max engraving speed |
20000mm/min |
Max material height |
200mm |
Resolution ratio |
0.005mm |
Repeat position accuracy |
0.05mm |
Command code |
G code, U00, Mmg, Plt. Eng |
System environment |
Windows98/2000/XP |
Working voltage |
380/220/110v |
Spindle power |
3.0kw |
Spindle speed |
0-24000rpm/min |
Working way |
Stepper/servo motor |
Control system |
Ncstudio/DSP(optional) |
Machine dimension |
2100x3500x1600mm |
Package size |
2300x8500x1700mm |
Weight |
850/1000kg |
Optional parts |
cylinder rotary attachment/dust collector /vacuum adsorption/DSP |
3.The Samples for your reference Hot sale KC1325 CNC Router Wood Machine of Wood Working :
Standard Wooden Box:
♦ One year quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 24 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery
1.T/T inadvance 2.western union 3 . Trade Assurance
2) I did not imported before , how should i do ?
You only need pay to us , we will arrange all the things to you and teach you how to do .we will
prepare all the documents to you , you don't need worry , because we know what you need .
3) Do You Arrange the ship For us?
Yes ,for FOB or CIF price, we will arrange shipment for you.
4) How about the documents after shipment?
We‘ ll send all original documents to you by DHL, for example :the Packing List, Commercial
Invoice, B/L, and other certificates as required by clients.
