Place of Origin Shanghai, China
Brand Name KAIWEI
Model Number ES601640002
Protection Level IP55
Type Other, Control Cabinet
External Size 600mm*1600mm*400mm

Specifications

1.Unique main body frame integrally welded with 5-fold section ensures high strength and IP56
2.Easy disassembly and transport

 Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier



Product Description

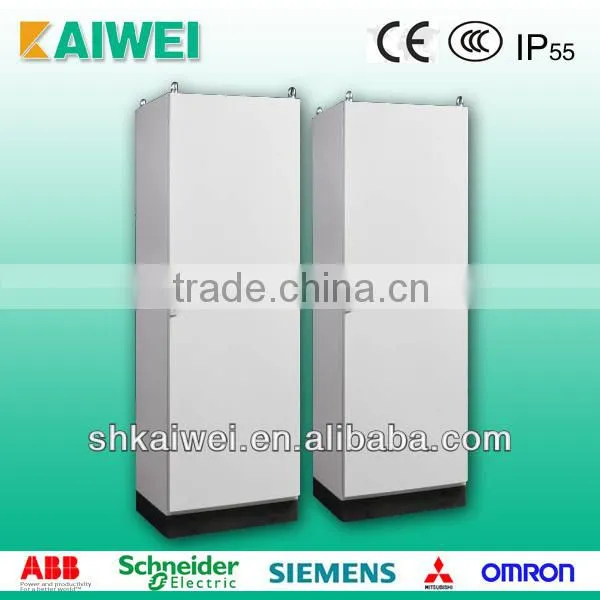

ES control equipment



Model No: ES601640002

1. Material:  Cold Rolled Steel Sheet

2. Surface Treatment:  Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.

3. Class of Protection: IP55(According to GB4205-1993) Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier



Item Name: ES control equipment
Material: Cold Rolled Steel Sheet
Thickness: Frame:5-fold Sections 1.5mm Door Plate:2.0mm   Back Plate:1.5mm Mounting Plate:2.5mm(3.0mm optional)
Standard Configuration: Front Door,Back Plate,Mounting Plate,Cabinet Body,Door Lock,Sealing Strip
Surface Treatment: Etch Primer for Cabinet Body,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
Class of Protection: IP55(According to GB4205-1993)
MOQ: 100 PCS
Supply Ability: 10000 PCS/Month
Delivery Time: 10-15 days
Remark: Special Demands Can Be Customized






No.
Order No.(RAL7032)
Order No.(RAL7035)
Width
Height
Depth
1 ES601640002 ES601640005 600 1600 400
2 ES601650002 ES601650005 600 1600 500
3 ES801650002 ES801650005 800 1600 500
4 ES121650002 ES121650005 1200 1600 500
5 ES601840002 ES601840005 600 1800 400
6 ES601850002 ES601850005 600 1800 500
7 ES801840002 ES801840005 800 1800 400
8 ES801850002 ES801850005 800 1800 500
9 ES101840002 ES101840005 1000 1800 400
10 ES121840002 ES121840005 1200 1800 400
11 ES161840002 ES161840005 1600 1800 400
12 ES602050002 ES602050005 600 2000 500
13 ES602060002 ES602060005 600 2000 600
14 ES802060002 ES802060005 800 2000 500
15 ES802060002 ES802060005 800 2000 600
16 ES102050002 ES102050005 1000 2000 500
17 ES102060002 ES102060005 1000 2000 600
18 ES122050002 ES122050005 1200 2000 500
19 ES122060002 ES122060005 1200 2000 600
20 ES122080002 ES122080005 1200 2000 800
21 ES182050002 ES182050005 1800 2000 500
22 ES602250002 ES602250005 600 2200 500
23 ES602260002 ES602260005 600 2200 600
24 ES802260002 ES802260005 800 2200 600
25 ES102250002 ES102250005 1000 2200 500
26 ES102260002 ES102260005 1000 2200 600
27 ES122260002 ES122260005 1200 2200 600
28 ES122280002 ES122280005 1200 2200 800
29 ES802050002 ES802050005 800 2000 500
30 ES802250002 ES802250005 800 2200 500
31 ES102080002 ES102080005 1000 2000 800
32 ES122250002 ES122250005 1200 2200 500
33 ES802280002 ES802280005 800 2200 800
34 ES102280002 ES102280005 1000 2200 800







 Details:

 Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier



 Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier

Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier





Main advantage of ES control equipment:



  1. Stand-alone electric cabinet, inapplicable for cabinet incorporation.
  2. High door plate (approx 25mm from the ground), to ensure smooth door opening.
  3. Unique main body frame integrally welded with 5-fold section ensures high strength and IP56 of cabinet body.
  4. Special door plate square tube reinforcing system can be fixed on door plate by screws for easy disassembly.
  5. Modular holes with spacing of 25mm on the frame ensure flexibility and universality of installation.
  6. Optional 3.0mm galvanized mounting plate can be pushed into the cabinet by plastic slide through rail, U flanges on both sides ensure firmer plate and easy transporting.





Company Information



 Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier

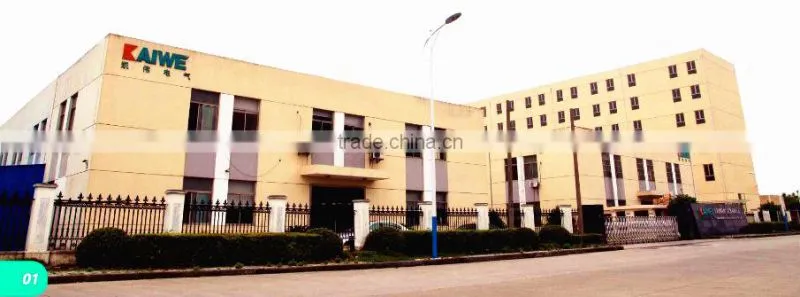

Shanghai Kaiwei Electrical Equipment Co., Ltd is established in year 2004, located in the most beautiful & ancient town Zhujiajiao in Shanghai, China.



We Shanghai Kaiwei company is an integrated high-tech enterprise which is well combined R&D, production and sales together. We have international advanced technical strength, perfect and sophisticated producing and inspecting equipment, we are one of the top-class companies for electrical boxes and cabinets series products in Chinese domestic market.



We Shanghai Kaiwei company has the professional R&D team, with electrical industry leading experts in electrical transmission, computer control, drainage, HVAC, precision sheet metal processing industries. We always are devoted ourselves into the development, production and sales of various types of industrial electrical automation control systems, various types of chassis, cabinets, console network cabinets, PLC control system, variable frequency drive control system, DCS control systems etc.



During the past ten years of continuous development & improvement, our products passed ECM certification, with National Protection class certification and explosion-proof certificate etc. Due to our high quality control, in Chinese domestic market, we keep long-term service in electric power, metallurgy, chemical industry, transportation, municipal construction, machinery manufacturing and other industries. We successfully served with Baosteel, Wu Jing Power Plant, Hua Neng Power Plant, Shanghai Qingpu Sewage Treatment plant, Jilin Chemical Fiber, Hangzhou Snow Beer, Puxiang Steel Mills, Jin Cheng Colliery, Yao Hua Group and so on famous companies and government major projects. During the cooperation, our pursuit of excellence, high quality and perfect service help us to establish a good reputation in the industry and end users.



Meanwhile, we can offer OEM service, our products exported all over the world, including America, Mexico, Canada, most of European countries, Southeast Asian countries, Australia, UAE, Saudi Arabia, Qatar and other Middle East countries etc.



We wish to work and cooperate together with you for better improvement & development.





Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier





Our Services



 Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier





Why to choose Kaiwei Electrical Equipment:

1. We have the best & most professional R&D team, with numbers of electrical industry leading experts.

2. We have international advanced technical strength, perfect and sophisticated producing and inspecting equipment.

3. All our products passed ECM certification, with National Protection class certification and explosion-proof certificate etc safety certificates.

4. We have much more experience and cooperation with many famous companies and government major projects.

5. We are always pursuit of excellence, high quality and perfect service, with good reputation in the industry and end users.

6. The fast and most efficient production leading time—only 10-15 days.





Advanced Equipments from Shanghai Kaiwei:

Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier


Professional Certificates from Shanghai Kaiwei:



Best selling - ES control equipment ES601640002 from Shanghai Kaiwei -- Alibaba supplier





FAQ



FAQ for Kaiwei Electrical Equipment:



Q1: Is Kaiwei Electrical Equipment a manufacturer or trading company?

A1: We are one of the professional manufacturers which well combined R&D, production and sales together.



Q2: Do you have certificates for the products?

A2: Our products passed ECM certification, with National Protection class certification and explosion-proof certificate etc.



Q3: What is the lead time?

A3: 10-15 days in normal season, 20-25 days for n peak season.



Q4: Where is your Loading Port?

A4: Shanghai, China.



Further more information or questions, please feel free to contact with us, thanks.
