Specifications
1.The mounting plate is made of galvanized plate.2.Can be used for wiring outside the box and provide a larger mounting space.

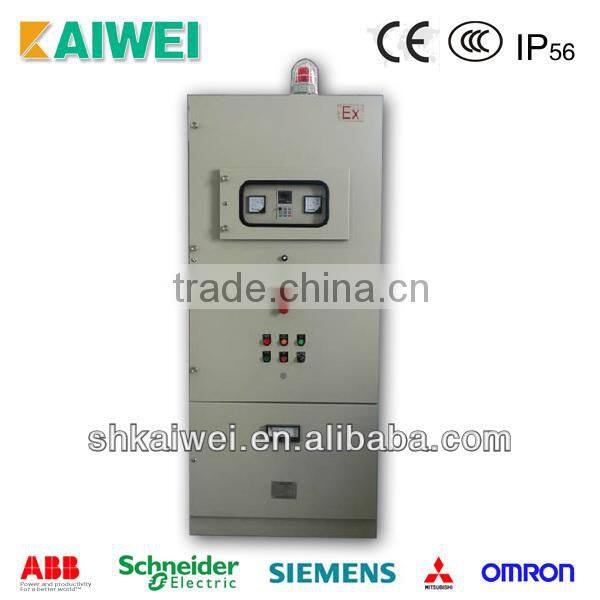

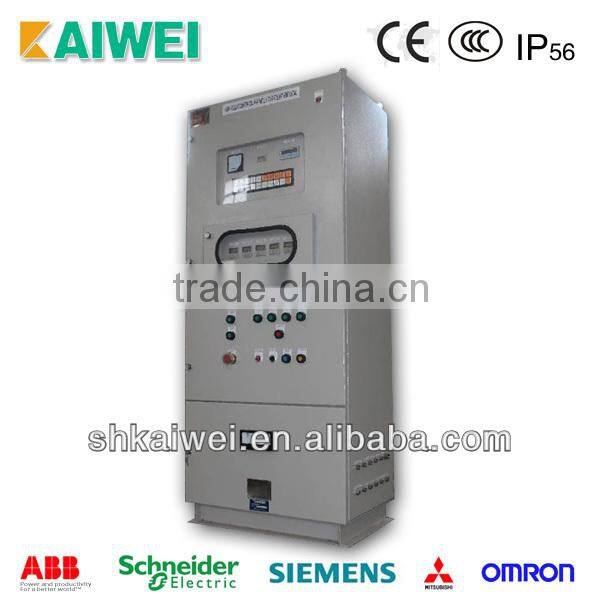

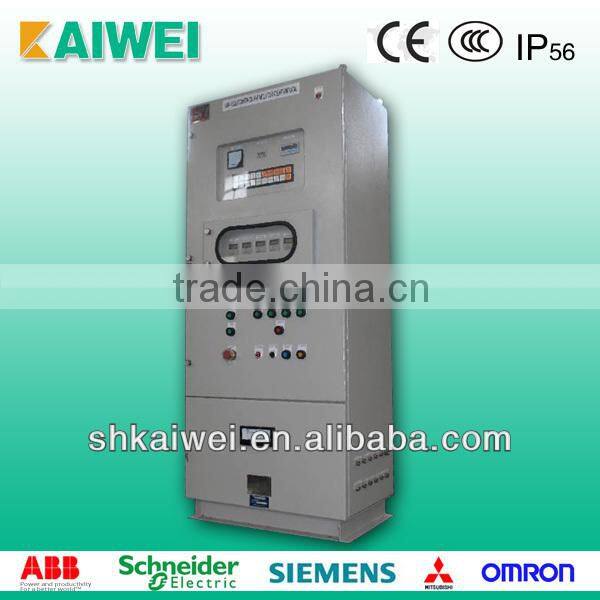

Latest BXPK-30 electrical equipment from Shanghai Kaiwei-China Alibaba supplier
BXPK-30 electrical equipment
1. Material: Cold Rolled Steel Sheet or Stainless Steel SUS304
2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing
| Item Name: | BXPK-30 electrical equipment | |||||||
| Material: | Cold Rolled Steel Sheet or Stainless Steel | |||||||
| Thickness: | Cabinet Body 2.0mm Door Plate:2.5mm Mounting Plate:2.5mm | |||||||
| Standard Configuration: | Door Plate,Cabinet Body,Sealing Strip,Grouding Sets,Mounting Plate,Door Lock | |||||||
| Surface Treatment: | Etch Primer for Cabinet Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized. | |||||||
| Class of Protection: | IP56(According to GB4205-1993) | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
|
No. |
Order No.(AL7035) |
Order No.(Stainless steel SUS304) |
Width |
Height |
Depth |
| 1 | BXPK14008040 | BXPKSUS14008040 | 800 | 1400 | 400 |
| 2 | BXPK14008050 | BXPKSUS14008050 | 800 | 1400 | 500 |
| 3 | BXPK16006040 | BXPKSUS16006040 | 600 | 1600 | 400 |
| 4 | BXPK16008040 | BXPKSUS16008040 | 800 | 1600 | 400 |
| 5 | BXPK16008050 | BXPKSUS16008050 | 800 | 1600 | 500 |
| 6 | BXPK18006040 | BXPKSUS18006040 | 600 | 1800 | 400 |
| 7 | BXPK18008040 | BXPKSUS18008040 | 800 | 1800 | 400 |
| 8 | BXPK18008060 | BXPKSUS18008060 | 800 | 1800 | 600 |
| 9 | BXPK18001050 | BXPKSUS18001050 | 1000 | 1800 | 500 |
| 10 | BXPK20006040 | BXPKSUS20006040 | 600 | 2000 | 400 |
| 11 | BXPK20006060 | BXPKSUS20006060 | 600 | 2000 | 600 |
| 12 | BXPK20008060 | BXPKSUS20008060 | 800 | 2000 | 600 |
| 13 | BXPK20001060 | BXPKSUS20001060 | 1000 | 2000 | 600 |
| 14 | BXPK22008060 | BXPKSUS22008060 | 800 | 2200 | 600 |
| 15 | BXPK220010060 | BXPKSUS220010060 | 1000 | 2200 | 600 |
| 16 | BXPK2200120050 | BXPKSUS2200120050 | 1200 | 2200 | 500 |
Main advantage of BXPK-30 electrical equipment:
- The door plate and box body are installed with special screws and retainers in accordance with common standards, which can ensure the protection class and the operation and maintenance in the narrow space in the box.
- Multiple protection grooves are designed at the box opening can not only reinforce the structure but also prevent the entry of dirt or water when the door is opening.
- PU foaming sealing strip ensures a protection class of IP56 to box body.
- The grounding line can be connected to the box body and door plate.
- Racks with screw holes are provided on both sides of the box to ensure the max mounting height and ensure the installation of supporting rail or mounting plate.
- The special plastic insulating sleeve can provide sealing and prevent door plate screw loosening, and guide screws when they are tightened.

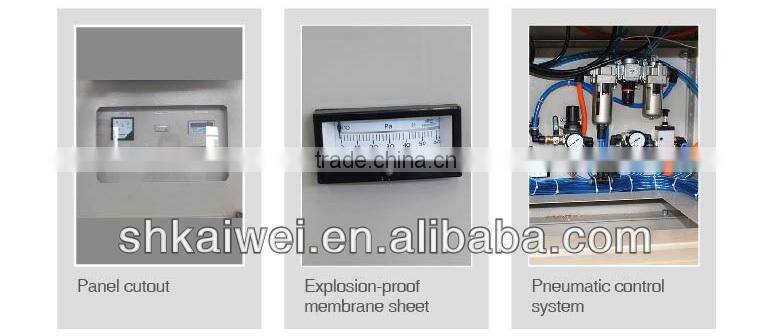

Details:
Why to choose Kaiwei Electrical Equipment:
1. We have the best & most professional R&D team, with numbers of electrical industry leading experts.
2. We have international advanced technical strength, perfect and sophisticated producing and inspecting equipment.
3. All our products passed ECM certification, with National Protection class certification and explosion-proof certificate etc safety certificates.
4. We have much more experience and cooperation with many famous companies and government major projects.
5. We are always pursuit of excellence, high quality and perfect service, with good reputation in the industry and end users.
6. The fast and most efficient production leading time—only 10-15 days.
Main Equipments:

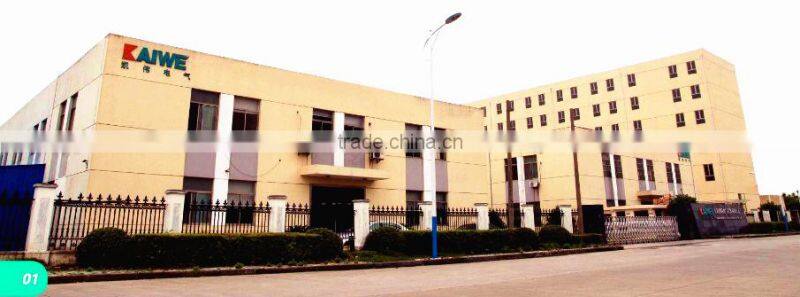

Company instruction about Kaiwei:
Shanghai Kaiwei Electrical Equipment Co., Ltd is established in year 2004, located in the most beautiful & ancient town Zhujiajiao in Shanghai, China.
We Shanghai Kaiwei company is an integrated high-tech enterprise which is well combined R&D, production and sales together. We have international advanced technical strength, perfect and sophisticated producing and inspecting equipment, we are one of the top-class companies for electrical boxes and cabinets series products in Chinese domestic market.
We Shanghai Kaiwei company has the professional R&D team, with electrical industry leading experts in electrical transmission, computer control, drainage, HVAC, precision sheet metal processing industries. We always are devoted ourselves into the development, production and sales of various types of industrial electrical automation control systems, various types of chassis, cabinets, console network cabinets, PLC control system, variable frequency drive control system, DCS control systems etc.
During the past ten years of continuous development & improvement, our products passed ECM certification, with National Protection class certification and explosion-proof certificate etc. Due to our high quality control, in Chinese domestic market, we keep long-term service in electric power, metallurgy, chemical industry, transportation, municipal construction, machinery manufacturing and other industries. We successfully served with Baosteel, Wu Jing Power Plant, Hua Neng Power Plant, Shanghai Qingpu Sewage Treatment plant, Jilin Chemical Fiber, Hangzhou Snow Beer, Puxiang Steel Mills, Jin Cheng Colliery, Yao Hua Group and so on famous companies and government major projects. During the cooperation, our pursuit of excellence, high quality and perfect service help us to establish a good reputation in the industry and end users.
Meanwhile, we can offer OEM service, our products exported all over the world, including America, Mexico, Canada, most of European countries, Southeast Asian countries, Australia, UAE, Saudi Arabia, Qatar and other Middle East countries etc.
We wish to work and cooperate together with you for better improvement & development.
Main Certificates from Kaiwei Electric Equiment:

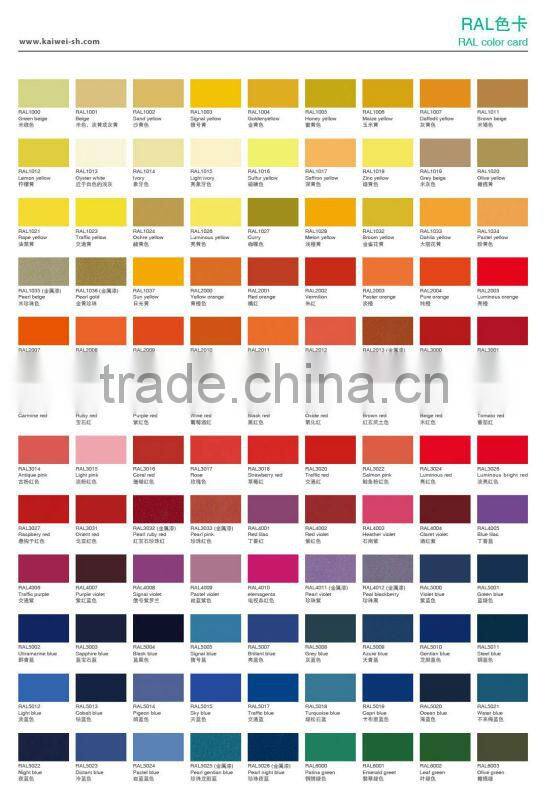

Color reference from Shanghai Kaiwei Electric Equiment:
FAQ for Kaiwei Electrical Equipment:
Q1: Is Kaiwei Electrical Equipment a manufacturer or trading company?
A1: We are one of the professional manufacturers which well combined R&D, production and sales together.
Q2: Do you have certificates for the products?
A2: Our products passed ECM certification, with National Protection class certification and explosion-proof certificate etc.
Q3: What is the lead time?
A3: 10-15 days in normal season, 20-25 days for n peak season.
Q4: Where is your Loading Port?
A4: Shanghai, China.
Further more information or questions, please feel free to contact with us, thanks.
