Professional hot runner mold temperature gauge with heater short protection
The AST (KT-300D) hot runner mold temperature controller is assembled with single-point temperature control cards. Each card only controls the temperature of one hot point. The display of control card can show preset temperature, actual temperature and alarm, and you may set temperature parameters via the display.
The advantage of single-point controller is that one circuit board has one corresponding heating point so the display is the clear, operation and repair are simple and easy. But the temperature controller occupies a large space due to its large volume in case of numerous hot runner control points.
The AST hot runner mold temperature gauge's core specifications:
1 Indoor use
2 Power input voltage: AC185V-245V,50/60HZ,15A
3 Load: 15A,100W-3600W
4 Output type: PWM (Pulse-Width Modulation), SSR (solid-state)
5Thermocouple wire type: Type J or type K
6 Temperature control range: 50°C-550°C
7Temperature stability: +0.5%
8 Temperatgure control type: FUZZY + PIDD artifical intelligence + shift-phase control
9 Internal measuring loop automatic ambient temperature compensation
10 Core wire voltage input protection function
11 Heating wire protection function
12 Soft-start avoids mould creepage arising from moisture
13 F1,F2:250V-15A(Spiecal fuse)
14 F1A,F3:250-1A

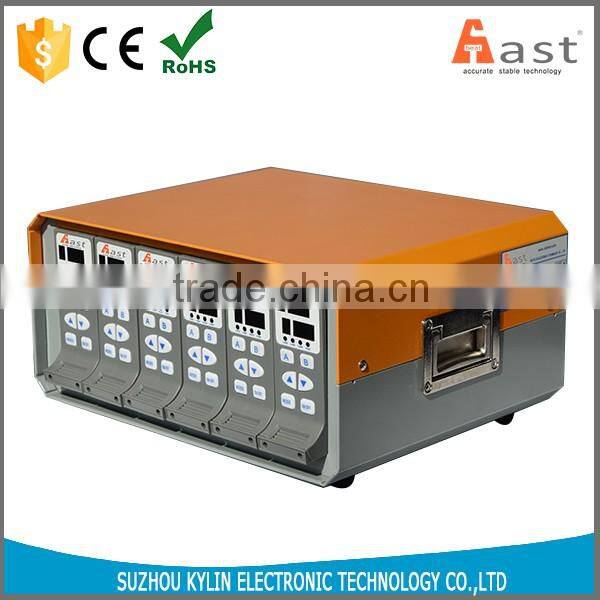

Hot Runner Mold temperature gauge's Product Pictures:
10 Years Experience On Hot Runner Mould
SuZhou Kylin Electronic Technology Co.,Ltd founded in 2007, is a subsidiary of ShenZhen Kylin Hot Runner Accessories Co., Ltd founded in 2003. After 10 years of efforts and development, we has a certain scale and strength.The Company is a professional provider of hot runner accessories, which cover hot runner temperature controller, temperature control component, connector, cable, heater and thermocouple in various specifications.
Our one-stop shop enables you to enjoy cost-effective and professional service.
In comparison with purchasing various accessories from different manufacturers, one-stop shopping allows you to have initiative for buying products at the most preferential price. In comparison with purchasing various accessories from different manufacturers, one-stop shopping provides you with more choices for selecting proper products according to specific requirements of hot runner system. Your best choice is to come to Kylin the outstanding provider for one-stop shopping.
Factory pictures:
For many years, we have "quality assurance, service professional, customer first" for business purposes, with its own rich marketing experience, strategic management and talent advantage, continuous development, pragmatic innovation, production and sales. In the production process, we know that quality is the core value of the company, so in order to ensure the qualified rate of all products, we develop and implement a series of strict production process, control the quality of management, ensure the details of the standardization and institutionalization,strict control of suppliers. We adhere to the "unity, integrity, dedication, struggle," the spirit of enterprise culture. We will be stable in the track of specialization and diversification. We promise that Kylin always pays great efforts to become the best provider of hot runner accessory to survive and satisfy customer's requirements.
1.OEM Service
2.Have professional R&D group, all your technical requirement will be customized.
3.24 online service,email will get back in 24 hours.
Professional hot runner mold temperature gauge with heater short protection
Contact us if you require specific details for your application.
We will response and fulfill your needs soonest.
Please contact us directly .
We are looking forward to your inquiry and develop a long-term business relationship with you!
