Temperature Alarm/ System Control Modules/ temperature controller box for hot runner system
Suzhou Kylin Electronic Technology Co., Ltd is the R&D and manufacturer and has more than 10 years’ experience on hot runner accessories. Now Kylin AST hot runner temperature controllers are engineered to assure excellence in performance, service and customer satisfaction.
Welcome to our website:

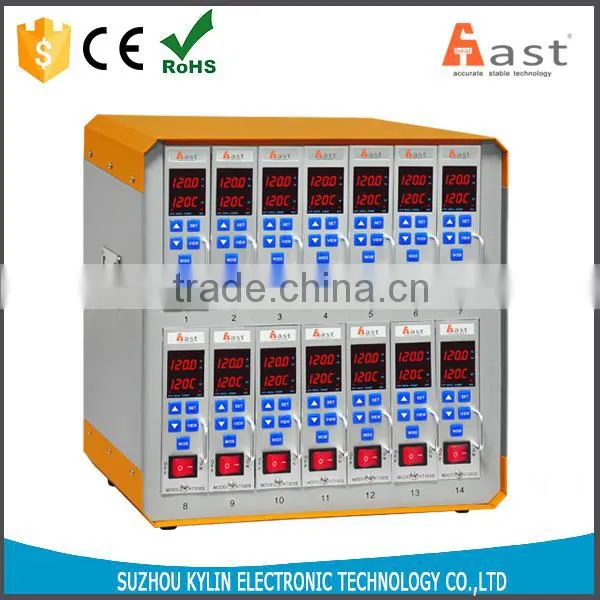

The KT-300S temperature controller is assembled with single-point temperature control cards. Each card only controls the temperature of one hot point. The display of control card can show preset temperature, actual temperature and alarm, and you may set temperature parameters via the display.
The advantage of single-point controller is that one circuit board has one corresponding heating point so the display is the clear, operation and repair are simple and easy. But the temperature controller occupies a large space due to its large volume in case of numerous hot runner control points.
Technical key features:
Control Accuracy |
±1°c |
Temperature precision |
0.1°C |
Temperature Unit |
°c or °F (menu-selectable) |
Temperature Range |
50 ~ 550 °c |
Thermocouple |
Type J or K |
Operation Mode |
Auto, Manual and Standby Mode |
Process Sampling Rate |
100 ms |
Temperature Stability |
±0.5% |
Output |
PID/PIDD |
Overload Protection |
field-replaceable fuses |
Load |
15A, 100W~3600W |
Product Functions:
1It adopts It adopts FUZZY PIDD control technology and can automatically adapt to any heating mould in case of no tuning PID parameter so it increases working efficiency greatly
2 380v input protection avoids the damage to controller arising from wrong voltage input
3Thermocouple protection function enables the controller to identify heating wire and thermocouple automatically to avoid the damage to thermocouple arising from wrong input of inductor
4 In case of there is short circuit between heating wire and load, heating wire output short circuit protection function enables the controller to close output automatically so as to avoid the damage to hot runner system and controller
5 Automatic environment linear compensation ensures higher precision of temperature value
6 Thermocouple automatic cool-end compensation avoids relative error due to change of environment temperature
7 Monitoring inductor error: The controller can detect reverse and open circuit of inductor and it will take actions according to error type and controller's mode
8 Loop break detection
9 Current monitoring
10 Output Interruption Check
11 Creepage detection circuit
12 Deviation Alarms
13BOOST Function
14Manual power output mode
15 Software locking
16 Support no-touch transmission
17 Display errors completely to help you find failure reason easily

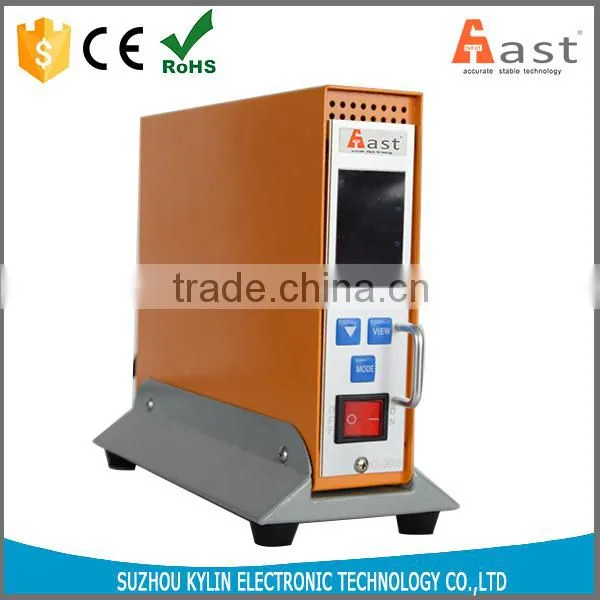

Product pictures:
Package:International standard case
Delivery: 5 working days after confirm the deposit.
Shipping: EXPRESS, AIR, SEA
Contact us if you require specific details for your application.
We will response and fulfill your needs soonest.
Please contact us directly .
We are looking forward to your inquiry and develop a long-term business relationship with you!
