Place of Origin Shanghai, China
Brand Name KAIWEI
Model Number EB151508002
Protection Level IP55
Type Control Box
External Size 150mm*150mm*80mm

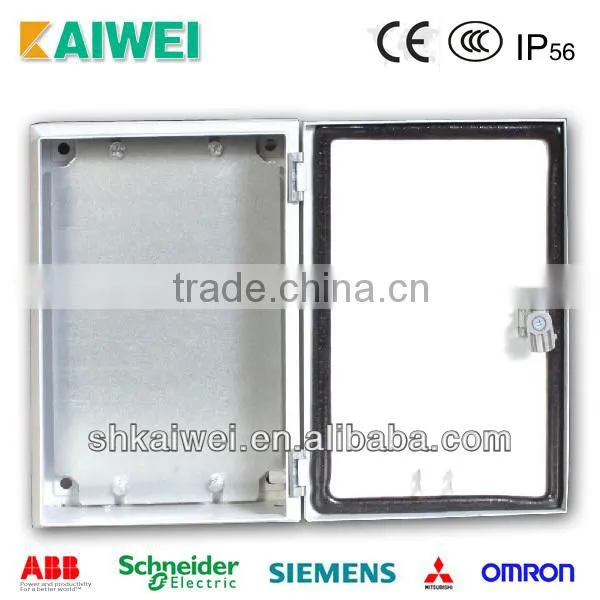

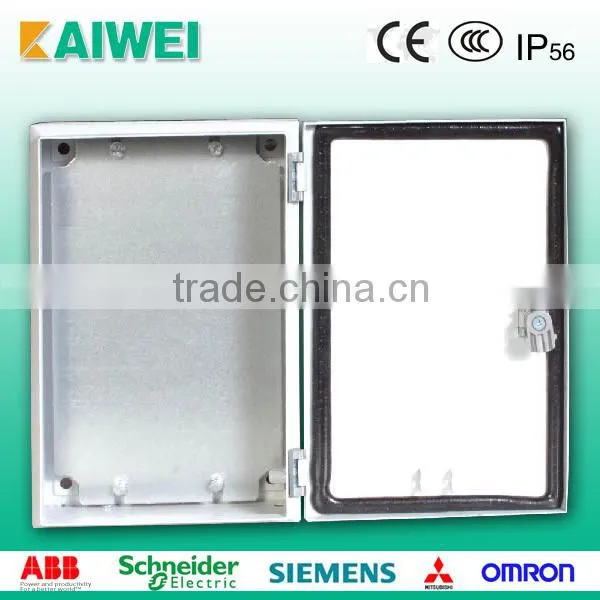

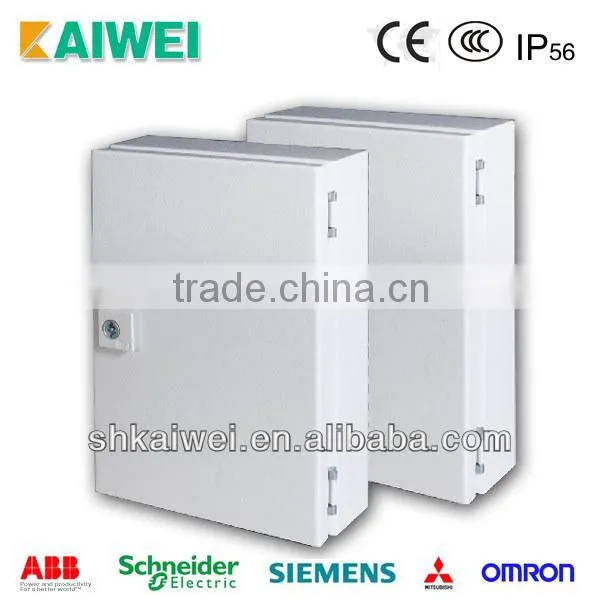

EB series water proof smart control box

1. Material: Cold Rolled Steel Sheet

2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.

3. Class of Protection: IP56(According to GB4205-1993)   PU Foaming Sealing

EB series water proof smart control box



Item Name: EB Smart Control Box
Material: Cold Rolled Steel Sheet
Thickness: Box Body:1.5mm Door Plate:1.5mm  Mounting Plate:2.5mm
Standard Configuration: Box Body,Door Plate,Sealing Strip,Grounding Sets,Mounting Plate,Door Lock
Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
Class of Protection: IP56(According to GB4205-1993)  PU Foaming Sealing
MOQ: 100 PCS
Supply Ability: 10000 PCS/Month
Delivery Time: 10-15 days
Remark: Special Demands Can Be Customized



No. Order No.(RAL7032)
Order No.(RAL7035)
Width
Height
Depth
1 EB151508002 EB151508005 150 150 80
2 EB153008002 EB153008005 150 300 80
3 EB202008002 EB202008005 200 200 80
4 EB203008002 EB203008005 200 300 80
5 EB204008002 EB204008005 200 400 80
6 EB151512002 EB151512005 150 150 120
7 EB153012002 EB153012005 150 300 120
8 EB202012002 EB202012005 200 200 120
9 EB203012002 EB203012005 200 300 120
10 EB204012002 EB204012005 200 400 120
11 EB303012002 EB303012005 300 300 120
12 EB304012002 EB304012005 300 400 120
13 EB205012002 EB205012005 200 500 120
14 EB304015502 EB304015505 300 400 155
15 EB306015502 EB306015505 300 600 155
16 EB308015502 EB308015505 300 800 155

 Details:



EB series water proof smart control box

 EB series water proof smart control box

EB series water proof smart control box

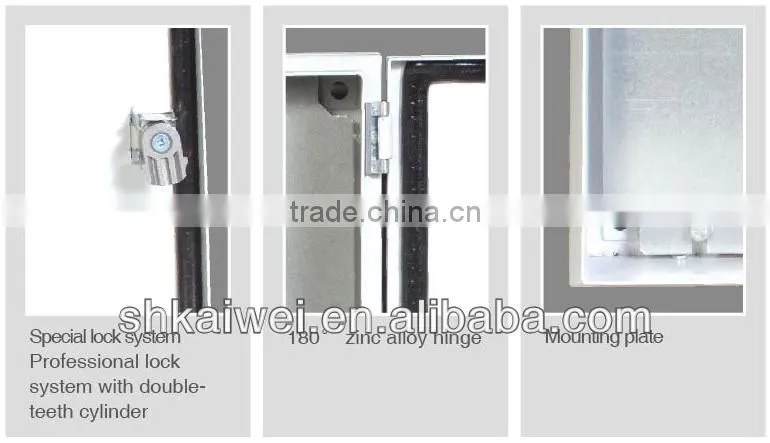

Main advantage of EB series water proof smart control box  :

  1. 180 degree hinge ensure the door opening 180 degree.
  2. Multiple Protection grooves are designed at the box opening for reinforcement, which can prevent the entry of dirt or water when the door is opened, and offer a larger box opening space.
  3. The mounting plate is made of galvanized plate which can be used for wiring outside the box and provide a larger mounting space.
  4. PU foaming sealing strip ensures a protection class of IP56 to box body.

Equipment:

EB series water proof smart control box

 Office:

EB series water proof smart control box

Certificates:EB series water proof smart control box
