Home > Electrical & Electronics > Telecommunication & Broadcasting > Network Cabinet > AE Wall Mounted Waterproof Outdoor Enclosure
AE Wall Mounted Waterproof Outdoor Enclosure
US$ 33 - 246
MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KAIWEI
Model Number:
AE203012002
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BAE Stainless Steel Electrical Junction BoxUS$ 400 - 919MOQ: 100 Sets -
AE Wall Mounted Galvanized Steel BoxUS$ 33 - 246MOQ: 100 Sets
-
IP56 Customized Wall Mounted Junction BoxUS$ 10 - 100MOQ: 1 Set
-
IP56 Customized Wall Mounted Junction EnclosureUS$ 10 - 100MOQ: 1 Set
-
IP56 Customized Wall Mounted Electric EnclosureUS$ 10 - 100MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
KAIWEI
Model Number
AE203012002
Protection Level
IP55
Type
Control Box
External Size
200mm*300mm*120mm

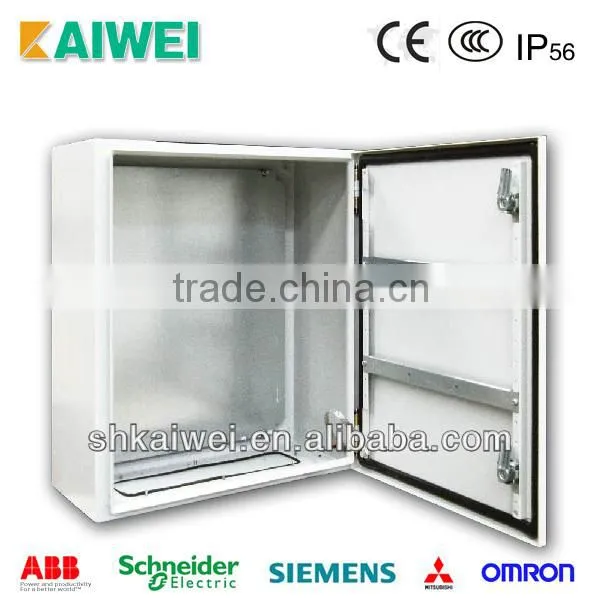

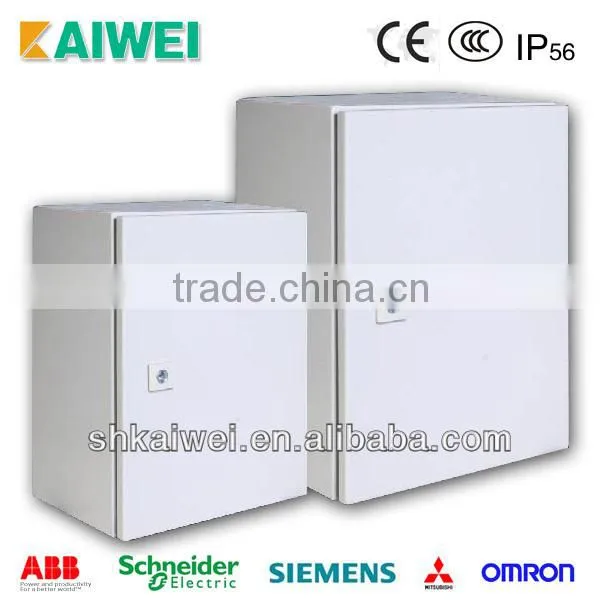

AE wall mounted metal box
1. Material: Cold Rolled Steel Sheet
2. Surface Treatment: Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
3. Class of Protection: IP56(According to GB4205-1993) PU Foaming Sealing
| Item Name: | AE wall mounted metal box | |||||||
| Material: | Cold Rolled Steel Sheet | |||||||
| Thickness: | Box Body:1.5mm Door Plate:2.0mm Mounting Plate:2.5mm | |||||||
| Standard Configuration: | Box Body,Door Plate,Sealing Strip,Grounding Sets,Mounting Plate,Door Lock | |||||||
| Surface Treatment: | Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized. | |||||||
| Class of Protection: | IP56(According to GB4205-1993) PU Foaming Sealing | |||||||
| MOQ: | 100 PCS | |||||||
| Supply Ability: | 10000 PCS/Month | |||||||
| Delivery Time: | 10-15 days | |||||||
| Remark: | Special Demands Can Be Customized | |||||||
|
No. |
Order No.(RAL7032) |
Order No.(RAL7035) |
Width |
Height |
Depth |
| 1 | AE203012002 | AE203012005 | 200 | 300 | 120 |
| 2 | AE203015502 | AE203015505 | 200 | 300 | 155 |
| 3 | AE203021002 | AE203021005 | 200 | 300 | 210 |
| 4 | AE303021002 | AE303021005 | 300 | 300 | 210 |
| 5 | AE304012002 | AE304012005 | 300 | 400 | 120 |
| 6 | AE304015502 | AE304015505 | 300 | 400 | 155 |
| 7 | AE304021002 | AE304021005 | 300 | 400 | 210 |
| 8 | AE383015502 | AE383015505 | 380 | 300 | 155 |
| 9 | AE383021002 | AE383021005 | 380 | 300 | 210 |
| 10 | AE383821002 | AE383821005 | 380 | 380 | 210 |
| 11 | AE386021002 | AE386021005 | 380 | 600 | 210 |
| 12 | AE404015502 | AE404015505 | 400 | 400 | 155 |
| 13 | AE405021002 | AE405021005 | 400 | 500 | 210 |
| 14 | AE505021002 | AE505021005 | 500 | 500 | 210 |
| 15 | AE505030002 | AE505030005 | 500 | 500 | 300 |
| 16 | AE506021002 | AE506021005 | 500 | 600 | 210 |
| 17 | AE603821002 | AE603821005 | 600 | 380 | 210 |
| 18 | AE603835002 | AE603835005 | 600 | 380 | 350 |
| 19 | AE606021002 | AE606021005 | 600 | 600 | 210 |
| 20 | AE606025002 | AE606025005 | 600 | 600 | 250 |
| 21 | AE606030002 | AE606030005 | 600 | 600 | 300 |
| 22 | AE606035002 | AE606035005 | 600 | 600 | 350 |
| 23 | AE607621002 | AE607621005 | 600 | 760 | 210 |
| 24 | AE607625002 | AE607625005 | 600 | 760 | 250 |
| 25 | AE607635002 | AE607635005 | 600 | 760 | 350 |

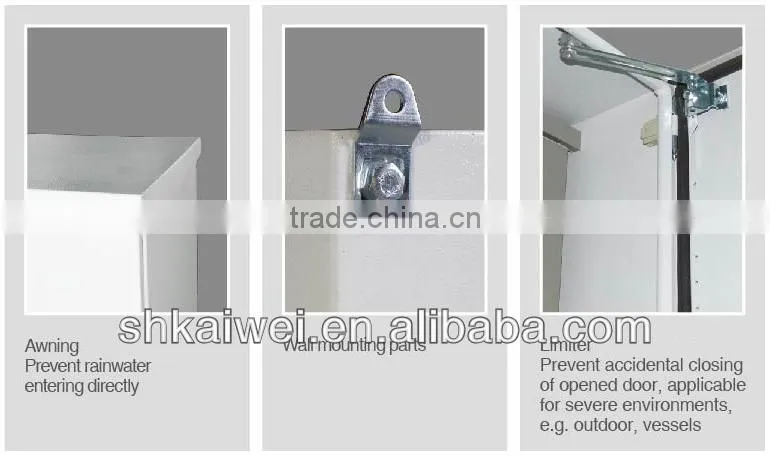

Details:
Main advantage of AE wall mounted metal box:
- PU foaming sealing strip ensures a protection class of IP56 to box body.
- Bosses of various types and size ensure easy installation of inlet/outlet lines.
- Galvanized mounting plate can also be used for wiring outside the box.
- Multiple Protection grooves are designed at the box opening for reinforcement, which can prevent the entry of dirt or water when the door is opened.
- Professional lock system with double-teeth cylinder ensures easy locking/unlocking.
Equipment:
Office:
Certificates:
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2004
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
