Digital Thermostat Temperature Controller For Hot Runner System
The KT-300S temperature controller is assembled with single-point temperature control cards. Each card only controls the temperature of one hot point. The display of control card can show preset temperature, actual temperature and alarm, and you may set temperature parameters via the display.
The advantage of single-point controller is that one circuit board has one corresponding heating point so the display is the clear, operation and repair are simple and easy. But the temperature controller occupies a large space due to its large volume in case of numerous hot runner control points.
Technical key features of thermostat:
Control Accuracy | ±1°c |
Temperature precision | 0.1°C |
Temperature Unit | °c or °F (menu-selectable) |
Temperature Range | 50 ~ 550 °c |
Thermocouple | Type J or K |
Operation Mode | Auto, Manual and Standby Mode |
Process Sampling Rate | 100 ms |
Temperature Stability | ±0.5% |
Output | PID/PIDD |
Overload Protection | field-replaceable fuses |
Load | 15A, 100W~3600W |
Product Functions of thermostat:
1It adopts It adopts FUZZY PIDD control technology and can automatically adapt to any heating mould in case of no tuning PID parameter so it increases working efficiency greatly
2 380v input protection avoids the damage to controller arising from wrong voltage input
3Thermocouple protection function enables the controller to identify heating wire and thermocouple automatically to avoid the damage to thermocouple arising from wrong input of inductor
4 In case of there is short circuit between heating wire and load, heating wire output short circuit protection function enables the controller to close output automatically so as to avoid the damage to hot runner system and controller
5 Automatic environment linear compensation ensures higher precision of temperature value
6 Thermocouple automatic cool-end compensation avoids relative error due to change of environment temperature
7 Monitoring inductor error: The controller can detect reverse and open circuit of inductor and it will take actions according to error type and controller's mode
8 Loop break detection
9 Current monitoring
10 Output Interruption Check
11 Creepage detection circuit
12 Deviation Alarms
13BOOST Function
14Manual power output mode
15 Software locking
16 Support no-touch transmission
17 Display errors completely to help you find failure reason easily

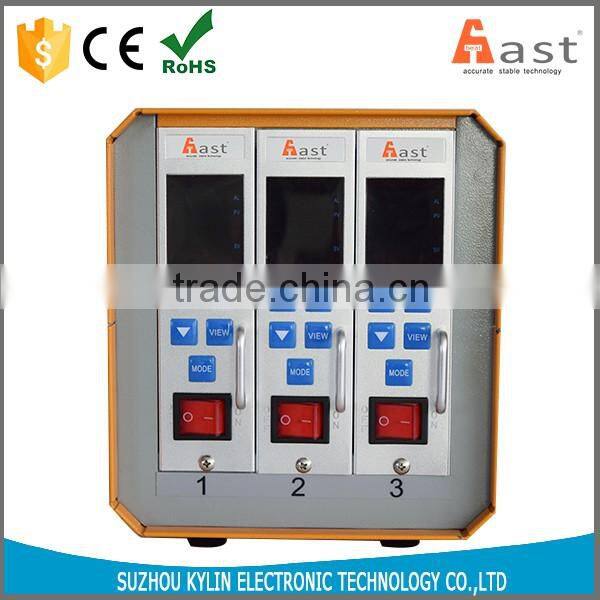

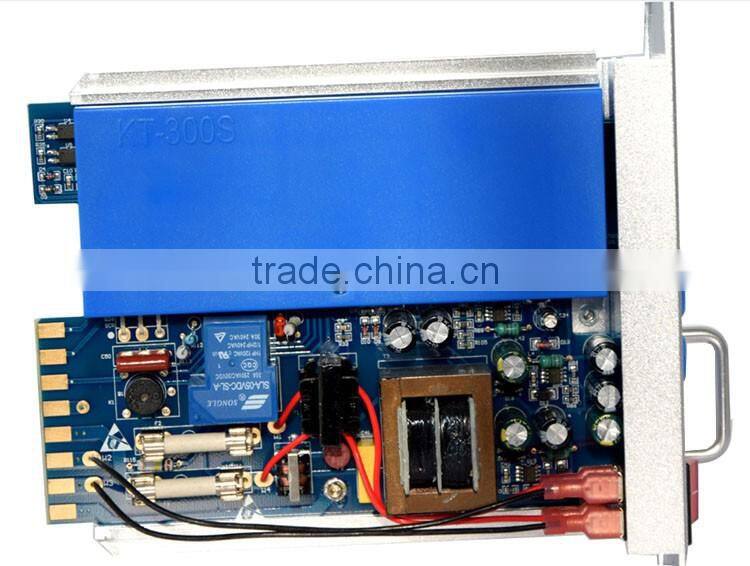

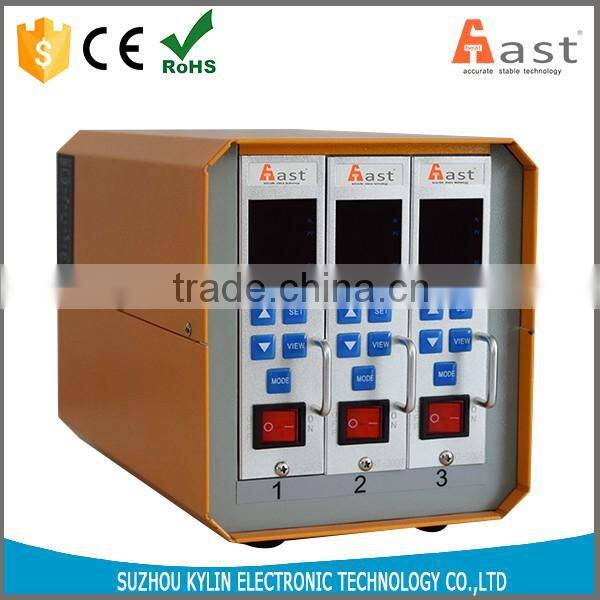

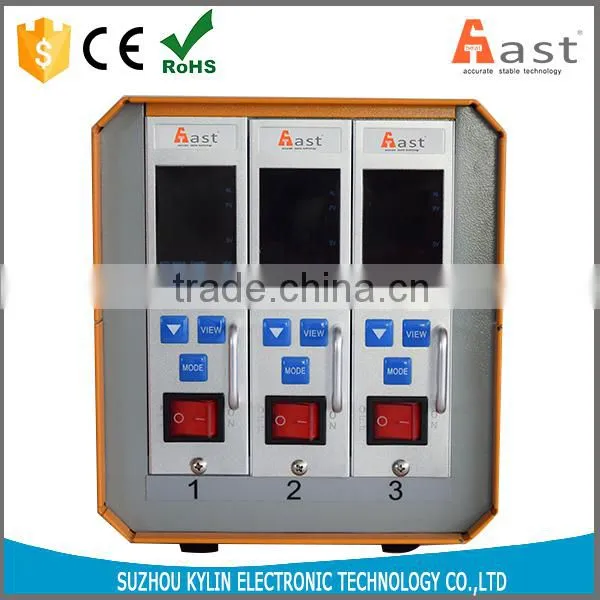

Product pictures of thermostat:
10 Years Experience On Hot Runner Mould
SuZhou Kylin Electronic Technology Co.,Ltd founded in 2007, is a subsidiary of ShenZhen Kylin Hot Runner Accessories Co., Ltd founded in 2003. After 10 years of efforts and development, we has a certain scale and strength.The Company is a professional provider of hot runner accessories, which cover hot runner temperature controller, temperature control component, connector, cable, heater and thermocouple in various specifications.
Our one-stop shop enables you to enjoy cost-effective and professional service.
In comparison with purchasing various accessories from different manufacturers, one-stop shopping allows you to have initiative for buying products at the most preferential price. In comparison with purchasing various accessories from different manufacturers, one-stop shopping provides you with more choices for selecting proper products according to specific requirements of hot runner system. Your best choice is to come to Kylin the outstanding provider for one-stop shopping.
Factory pictures:
By virtue of our rich experiences, our sales staff acting as your advisor will recommend products with highest performance-price ratio to you according to your requirements. Our warehouse system's safe inventory ensures that you can get the desired goods at any time. Our engineers pay special attentions to your suggestions and complaints to improve the quality of our products. The market of hot runner system in China becomes mature gradually. The market with benign growth cultivates excellent manufacturer of hot runner system, injection molding corporations boasting rich experiences in using hot runner. These corporations need a reliable provider of quality hot runner accessory. The best choice is Kylin. Kylin always pays great efforts to become the best provider of hot runner accessory to survive and satisfy customer's requirements.
Certificate:
1.OEM Service
2.Have professional R&D group, all your technical requirement will be customized.
3.24 online service,email will get back in 24 hours.
