AK electrical meter boxes

Specifications

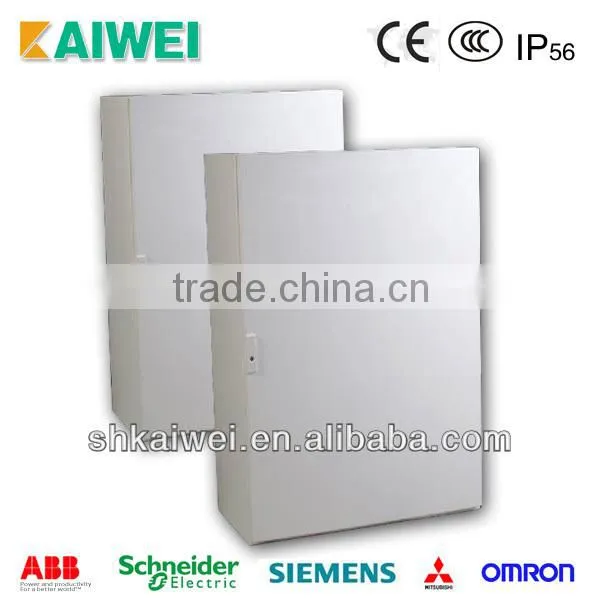

AK electrical meter boxes
1.Optional lifting ring system ensures easy transporting
2.IP 56

AK electrical meter boxes

1. Material:  Cold Rolled Steel Sheet

2. Surface Treatment:  Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.

3. Class of Protection: IP56(According to GB4205-1993)   PU Foaming Sealing



Item Name:		AK electrical meter boxes
Material:		Cold Rolled Steel Sheet
Thickness:		Box Body:1.5mm(optional 2.0mm) Door Plate:2.0mm                                       Mounting Plate:Standard 2.5mm(optional 3.0mm)
Standard Configuration:		Box Body,Door Plate,Sealing Strip,Grounding Sets,Mounting Plate,Door Lock,Lifting Ring(optional)
Surface Treatment:		Etch Primer for Box Body and Door Plate,Powder Coating for Outside,Texture Optional as RAL7032 or RAL7035,Mounting Plate is galvanized.
Class of Protection:		IP56(According to GB4205-1993)                                                   PU Foaming Sealing
MOQ:		100 PCS
Supply Ability:		10000 PCS/Month
Delivery Time:		10-15 days
Remark:		Special Demands Can Be Customized





No.	Order No.(RAL7032)	Order No.(RAL7035)	Width	Height	Depth
1	AK601440002	AK601440005	600	1400	400
2	AK801440002	AK801440005	800	1400	400
3	AK121440002	AK121440005	1200	1400	400

 Details:





Main advantage of AK electrical meter boxes:

1. PU foaming sealing strip ensures a protection class of IP56 to box body.

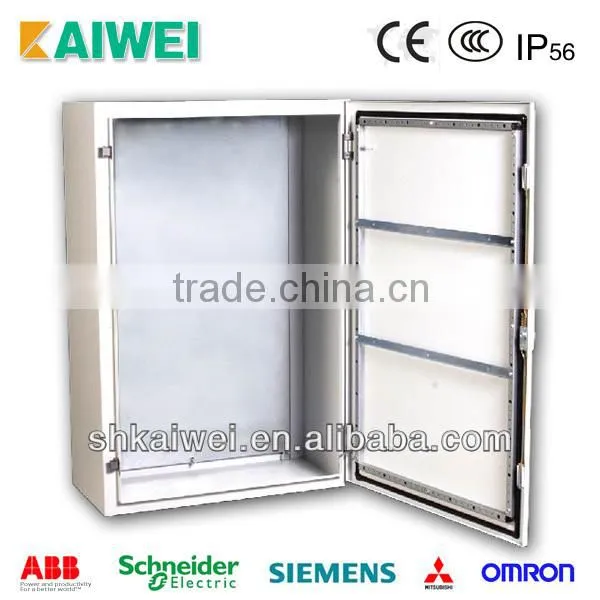

2. Widened box frame, bearing hinge and door plate square tube stiffener ensures high strength of the box body.
3. Optional 3.0mm galvanized mounting plate and high-strength mounting rack ensures the reliability of the mounting parts (can be used for wiring outside the box).
4. Bottom inlet/outlet line device ensures easy installation of inlet/outlet lines.
5. Optional lifting ring system ensures easy transporting.
