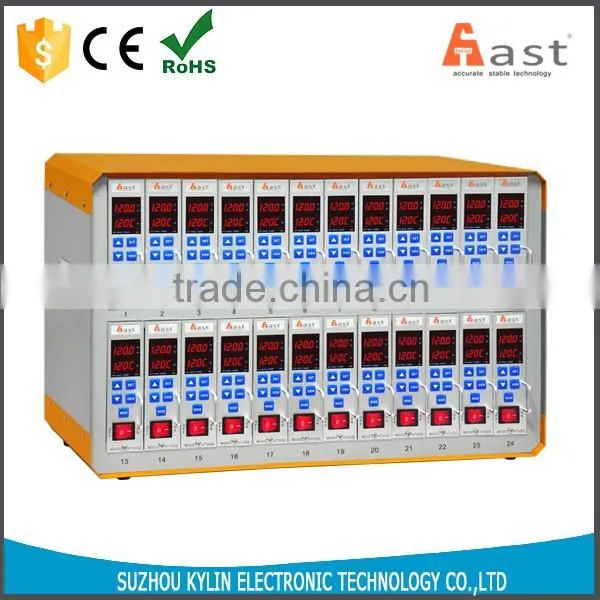

AST 24 Zones Hot Runner Temperature Controller

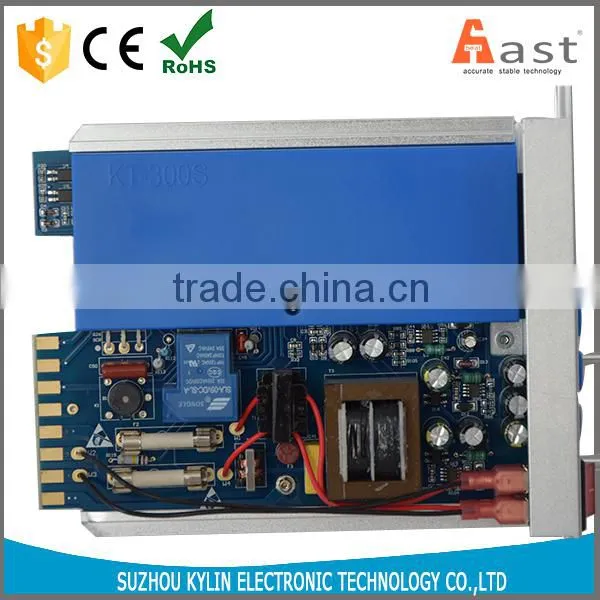

The KT-300S temperature controller is assembled with single-point temperature control cards. Each card only controls the temperature of one hot point. The display of control card can show preset temperature, actual temperature and alarm, and you may set temperature parameters via the display.
The advantage of single-point controller is that one circuit board has one corresponding heating point so the display is the clear, operation and repair are simple and easy. But the temperature controller occupies a large space due to its large volume in case of numerous hot runner control points.
Technical key features:
Control Accuracy |
±1°c |
Temperature precision |
0.1°C |
Temperature Unit |
°c or °F (menu-selectable) |
Temperature Range |
50 ~ 550 °c |
Thermocouple |
Type J or K |
Operation Mode |
Auto, Manual and Standby Mode |
Process Sampling Rate |
100 ms |
Temperature Stability |
±0.5% |
Output |
PID/PIDD |
Overload Protection |
field-replaceable fuses |
Load |
15A, 100W~3600W |
Num. |
Display |
Reason |
1 |
tC oPEn |
Thermocouple open |
2 |
tC SHrt |
Thermocouple shorten |
3 |
tC rEu |
Thermocouple inverted |
4 |
tC bAd |
Something is wrong in thermocouple |
5 |
bAd Scr |
Something is wrong in Scr |
6 |
HIGH voL |
Power input is error |
7 |
HEAt oPEn |
Heater output is open |
8 |
out SHtr |
Heater output is shorten |
9 |
Err LPbr |
Loop break |
10 |
F1-2 brk |
Fuse is break |
Connector:
