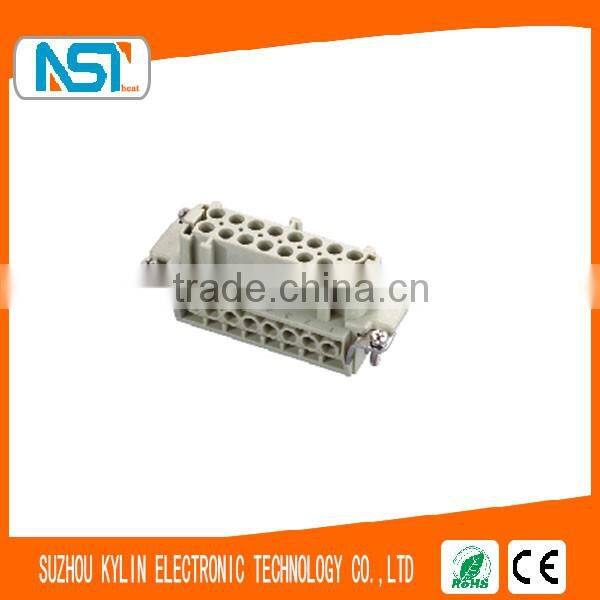

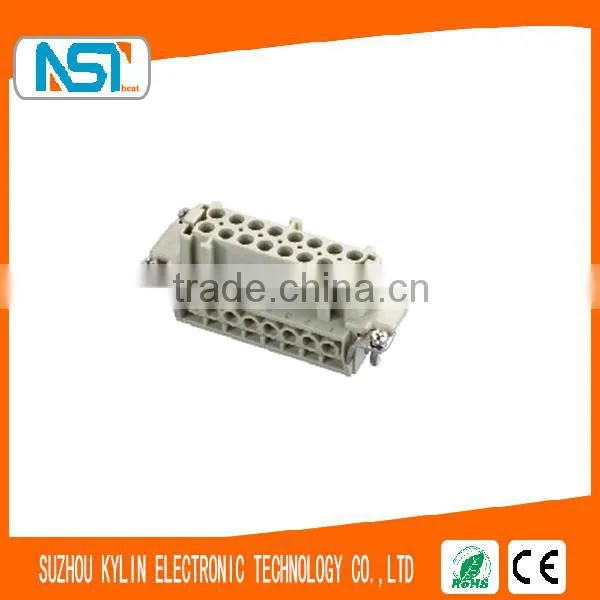

16 female core / socket Rectangle heavy-duty industrial connector
Rectangle heavy-duty industrial connector is designed in accordance with DIN/EN61984 standard. Its performance test is compatible with IEC60512 standard. Its shape design, material, performance and quality meet the standards of same kind of products made by foreign producers. K-BE rectangle high- current connector adopts reliable screw thread terminal so it makes the connection very easy. (The product has passed LR accreditation), CCC accreditation and CE accreditation.
Shell material | Aluminum die casting alloy |
Surface treatment | Plastic spraying |
Connection mode | Screw thread terminal |
Cross-section of lead | 0.5 ~ 2.5mm AWG20-14 |
Rated voltage | 400V |
Rated current | 10A~16A |
Insulation resistance | ≥1000MΩ |
Withstand voltage | 3000V(1 min) |
Temperature range | -40℃~ +125℃ |
Flame retardant rating | UL 94-V0 |
Pollution level | 3(C) |
Overvoltage type | Ⅲ |
Contact resistance | ≤1 MΩ |
Mechanical endurance | ≥500times |
Shell protection degree | IP65 |
1.OEM Service
2.Have professional R&D group, all your technical requirement will be customized.
3.24 online service,email will get back in 24 hours.
