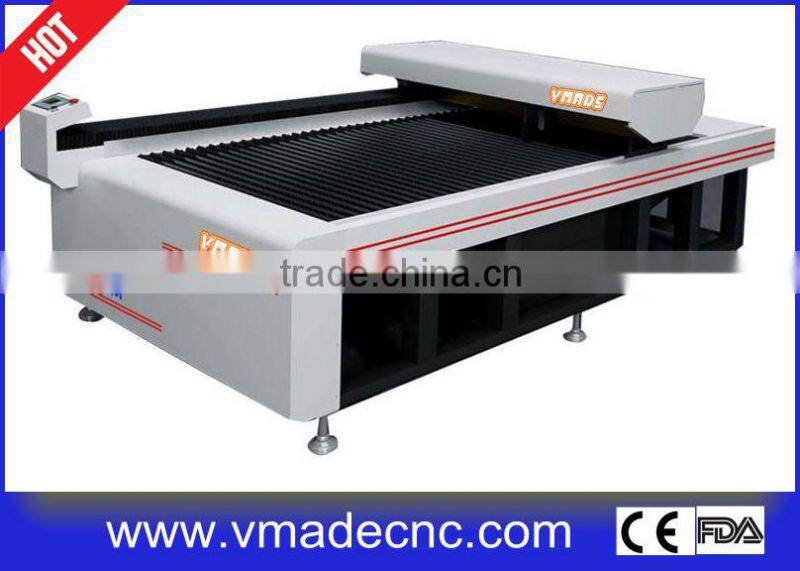

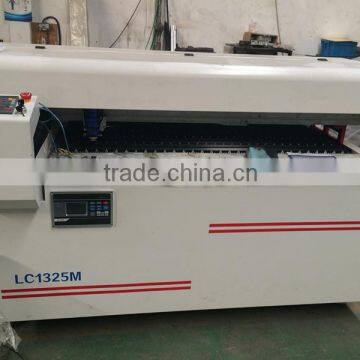

VLC 1325 SM CO2 Metal & Nonmetal Laser Cutting Machine for stainless steel leather wood plastic

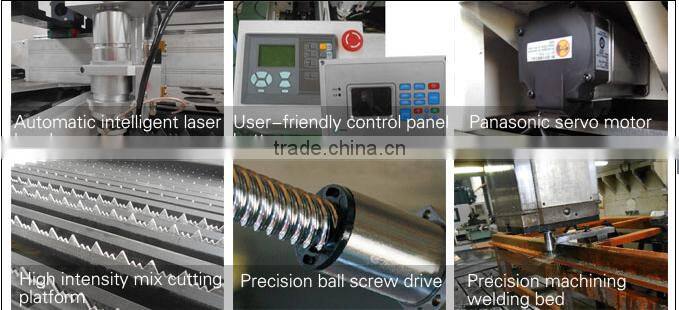

Products detail
Laser tube (150w)
High precision ball-screw system
Panasonic Servo System

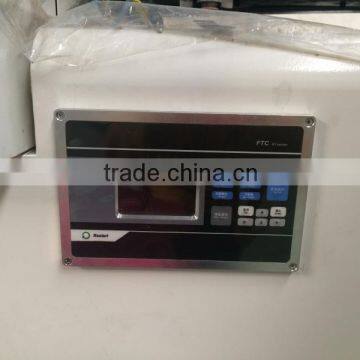

Untouched following system
Fixed beam optical system
Industrial chiller
Off-computer controlling system
Features
1.ELC1325SM is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.
2.High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min.
20mm acrylic with perfect cutting quality.
3.ELC1325SM machine is matched with the Panasonic Servo System and high precision.
4.ball-screw system to ensure the high precision, running stable and long-operation.
5.The sheet metal is not flat. But the system can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision cutting quality.
6.The laser beam is expanding, so the bigger the working area is, the more difficult the machine is to get the same cutting quality over the whole working area.
7.The fixed beam optical system can guarantees the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality.
8.High efficiency, high precision, stable performance and long life.
Low running cost about 5KVA/hour.
Application
Laser power |
150w |
|||
Material |
Acrylic |
MDF |
Stainless steel |
Carbon steel |
Cutting thickness |
30mm |
10mm |
1.5mm |
1.5mm |
150W Cutting speed
Material |
Cutting thickness |
Cutting speed (mm/min) |
Stainless steel |
0.5mm |
2700 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
Carbon steel |
0.5mm |
3000 |
1mm |
1800 |
|
1.5mm |
1000-1200 |
|
Acrylic |
10mm |
300 |
20mm |
90-120 |
|
MDF |
10mm |
300-400 |
composition

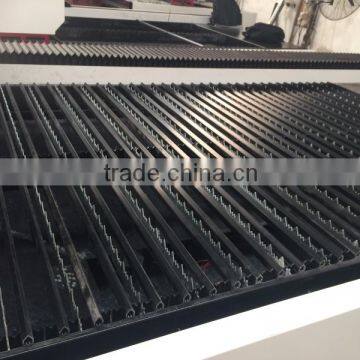

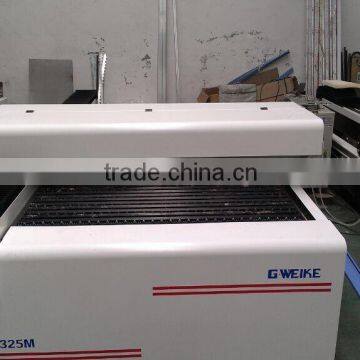

Samples show
5-7 working days for shipment
wooden packaging for the machine

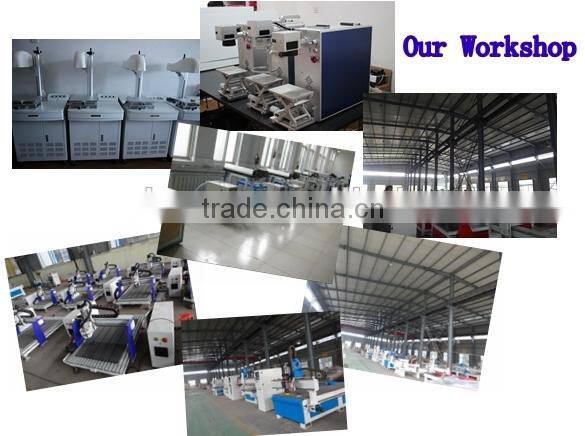

Jinan Vmade CNC Machine Co.,Ltd was established in 2010. Located in high-tech zone, Jinan City,
Shandong Province of China.
It is a professional team which specialized in Optic, Electricity, Mechanics, and R&D field. Vmade keep delicate
and attentive attitude on every step and always keep to learn the most advanced technology and create more
humanized products to all our customers.
If you have any questions, Please contact us
Welcom to visit our factory
