Generator Diesel

Name: Generator Diesel
Brand: KOOP
SKU: 106325009
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

KOOP

Model Number:

KDP6500Q

Changzhou Koop Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name KOOP

Model Number KDP6500Q

Output Type AC Single Phase

Speed 3000/3600

Frequency 50/60

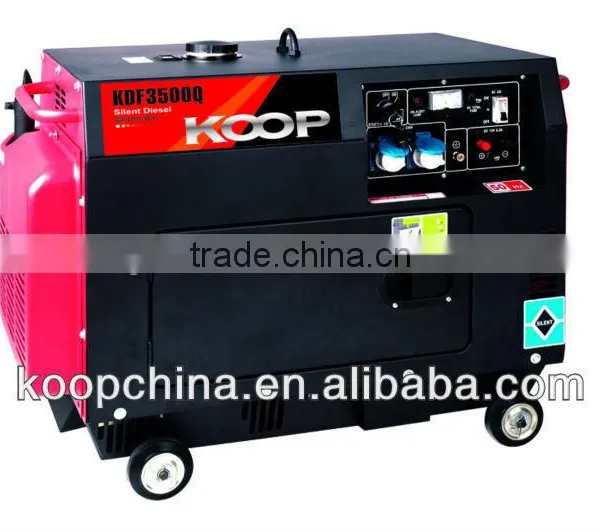

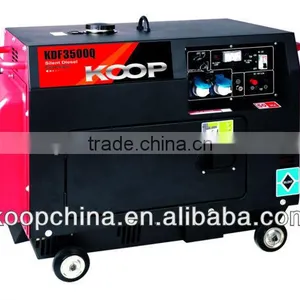

LOW NOISE DIESEL GENERATOR

5KVA low noise diesel generator

Model: KDF16000Q

Rated frequency (Hz): 60

Rated voltage (V): 220,230,240,220/110, 230/115 ,240/120

Rated output power (KVA): 4.5

Rated rotation speed (rpm): 3600

DC output: 12V, 7A

Power factor cosφ 1

Phase number: Single phase or three phase

Excitation mode: Self-excitation Brushless

Noise level dB (A) @7m: 70-74

Overall dimension [mm] (L×W×H): 920×520×700

Net weight [kg (lbs)]: 171 (377)

Structure model: Low noise type with enclosure

Connection mode: Single bearing, rotor drive shaft,rigid coupling

The specification of diesel engine:

Model	KD292/FE
Type	Vertical, 2-cylinder air-cooled
Combustion system	Direct injection
Bore×storke [mm(in)]	92×75
Displacement [L(cc)]	0.997
Compression ratio	20.5:1
Rated power [KW/rpm]	14/3000,15/3600
Rated power [HP/rpm]	15/3000,16/3600
Rated speed (rpm)	3000/3600
Starting system	E: Electric starter
Fuel tank capacity [L(US. gal)]	30
Lube capacity [L(US. gal)]	2.75
Fuel consumption [g(ml)/KWh]	3000rpm: 267 (376)
Fuel consumption [g(ml)/KWh]	3600rpm: 284 (385)
Fuel	0 (summer), -10 (winter) diesel oil
Lube	SAE10W30 (above CC grade)
Overall dimension [mm(in)](L×W×H)
Net weight [kg(lbs)]
Net weight [kg(lbs)]	Electric starter type: 87
Rotation direction (view from flywheel)	Clockwise
