diesel generator for sale

FOB Price

Negotiable / Set

2 Sets(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

CE, EPA approved,
5KVA low noise diesel generator,
air -cooled diesel engie,
noise-reducing enclosure,
large fuel tank

LOW NOISE DIESEL GENERATOR

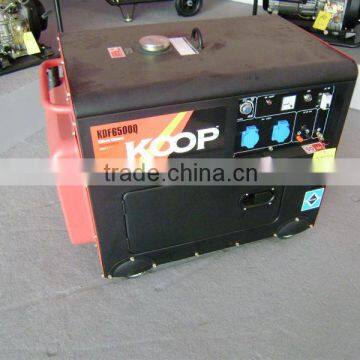

5KVA low noise diesel generator

Model: KDF6500Q

Rated frequency (Hz): 60

Rated voltage (V): 220,230,240,220/110, 230/115 ,240/120

Rated output power (KVA): 4.5

Rated rotation speed (rpm): 3600

DC output: 12V, 7A

Power factor cosφ 1

Phase number: Single phase or three phase

Excitation mode: Self-excitation Brushless

Noise level dB (A) @7m: 70-74

Overall dimension [mm] (L×W×H): 920×520×700

Net weight [kg (lbs)]: 171 (377)

Structure model: Low noise type with enclosure

Connection mode: Single bearing, rotor drive shaft,rigid coupling

The specification of diesel engine:

Model	KD186F/FE
Type	Vertical, 1-cylinder, 4-stroke, air-cooled
Combustion system	Direct injection
Bore×storke [mm(in)]	86×70 (3.39×2.76)
Displacement [L(cc)]	0.406 (406)
Compression ratio	19:1
Rated power [KW/rpm]	5.7/3000,6.3/3600
Rated power [HP/rpm]	7.7/3000,8.6/3600
Rated speed (rpm)	3000/3600
Starting system	F: Recoil starter; E: Electric starter
Fuel tank capacity [L(US. gal)]	5.5 (1.45)
Lube capacity [L(US. gal)]	1.65 (0.44)
Fuel consumption [g(ml)/KWh]	3000rpm: 275 (376)
Fuel consumption [g(ml)/KWh]	3600rpm: 281 (385)
Fuel	0 (summer), -10 (winter) diesel oil
Lube	SAE10W30 (above CC grade)
Overall dimension [mm(in)](L×W×H)	420×440×495 (16.53×17.32×19.49)
Net weight [kg(lbs)]	Recoil starter type: 48 (105.6)
Net weight [kg(lbs)]	Electric starter type: 53 (116.6)
Rotation direction (view from flywheel)	Clockwise
