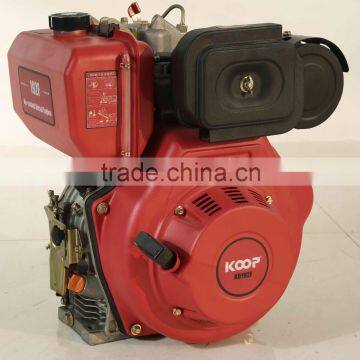

KD192FE DIESEL ENGINE
Negotiable
1 (Min.Order)
- 0 per Month
- SHANGHAI
You May Like
Product Details
| Condition | New | Usage | Automobile | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Electric Start | Place of Origin | Jiangsu, China | |
| Brand Name | KOOP | Model Number | KD192FE | |
| Dimension(L*W*H) | Standard | Weight | 30~270KG | |
| Certification | ISO | Warranty | 1 Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Model | KD192FA/FAE |
| Type | Vertical, 1-cylinder, 4-stroke, air-cooled |
| Combustion system | Direct injection |
| Bore×storke [mm(in)] | 92×75 |
| Displacement [L(cc)] | 0.499 (499) |
| Compression ratio | 19:1 |
| Rated power [KW/rpm] | 8.2/3600 |
| Rated power [HP/rpm] | 14/3600 |
| Rated speed (rpm) | 3600 |
| Starting system | F: Recoil starter; E: Eletric starter |
| Fuel tank capacity [L(US.gal)] | 5.5 (1.45) |
| Lube capacity [L(US.gal)] | 1.65 (0.44) |
| Fuel consumpition [g(ml)/KWh] | |
| 3600rpm: 281 (385) | |
| Fuel | 0# (summer), -10# (winter) diesel oil |
| Lube | CD or better than CD |
| Overall dimension [mm(in)](L×W×H) | 420×440×495 (16.53×17.32×19.49) |
| Net weight [kg(lbs)] | Recoil starter type: 48 (105.6) |
| Electric starter type: 53 (116.6) | |
| Rotaion direction (view from flywheel) | Clockwise |
