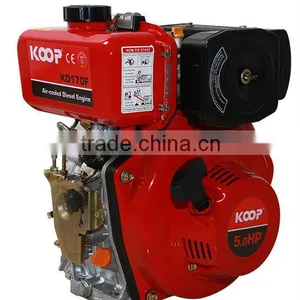

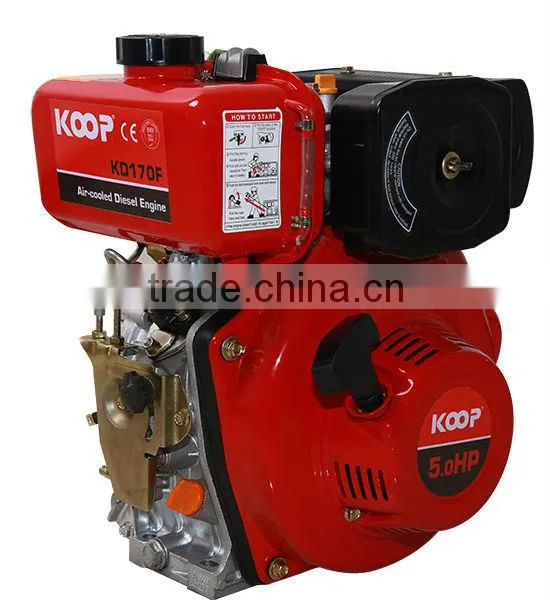

170F Air Cooled Diesel Engine
US$ 100 - 200
MOQ: 5 Sets
Key Specifications
Get Latest Price
Type:
Diesel Engine
No. of Cylinders:
Other, 1 cylinder
Power:
5HP
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Diesel Engine
No. of Cylinders
Other, 1 cylinder
Power
5HP
Displacement
211cc
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KD170F
Specifications
5 HP Air Cooled 1 Cylinder Air Cooled Diesel Engine.1.Compact, Portable and Easy Maintance.
2.Energy Saving
Manufacture Factory of Air Cooled Diesel Engine, Generator and Water Pump for many years. High Quality,CE Certificte, With Shorter Delivery Period
| Model | KD170F/FE |
| Type | Vertical,1-Cylinder,4-Stroke, Air Cooled |
| Combustion System | Direct Injection |
| BorexStroke[mm(in)] | 70x55(2.76x2.11) |
| Displacement[L(cc)] | 0.211(211) |
| Compression Ratio | 20:01 |
| Rated Power KW/rpm | 2.5/3000,2.8/3600 |
| Rated Power HP/rpm | 3.4/3000,3.8/3600 |
| Rated Speed(rpm) | 3000/3600 |
| Starting System | F:Recoil Starter, E: Electric Starter |
| Fuel Tank [L(US.gal)] | 2.5(0.66) |
| Lube[L(US.gal)] | 0.75(0.2) |
| Fuel Consumpition[g(ml)/kwh] | 3000rpm:280(330) |
| 3600rpm:288(342) | |
| Fuel | 0#(Summer),-10#(Winter) diesel oil |
| Lube | SAE10W30(Above CD grade) |
| Overall Dimension[mm(in)](LxWxH) | 335x380x415(13.19x14.96x16.34) |
| Net Weight[kg(lbs)] | Recoil Starter Type:27(59.4) |
| Electric Starter Type:31(68.2) | |
| Rotation Direction(View from Flywheel) | Clockwise |
