Home > Industrial Equipment & Components > Engine & Part > Engine > EPA 8HP 1-cylinder Diesel Engine

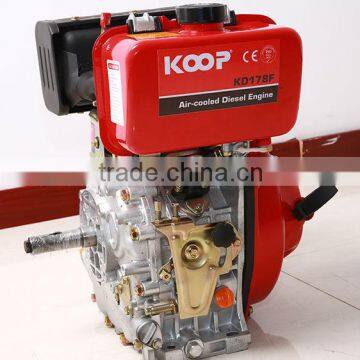

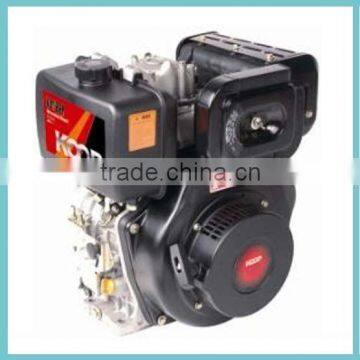

EPA 8HP 1-cylinder Diesel Engine
Negotiable
MOQ: 2 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Usage:
Automobile
Fuel:
Diesel
Stroke:
4 Stroke
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Usage
Automobile
Fuel
Diesel
Stroke
4 Stroke
Cylinder
Single Cylinder
Cold Style
Other, Air-cooled
Place of Origin
Jiangsu, China
Brand Name
KOOP
Model Number
KDF186F/FE
Model |
KD186F/FE |
| Type | Vertical, 1-cylinder, 4-stroke, air-cooled |
| Combustion system | Direct injection |
| Bore×storke [mm(in)] | 86×70 (3.39×2.76) |
| Displacement [L(cc)] | 0.406 (406) |
| Compression ratio | 19:1 |
| Rated power [KW/rpm] | 5.7/3000,6.3/3600 |
| Rated power [HP/rpm] | 7.7/3000,8.6/3600 |
| Rated speed (rpm) | 3000/3600 |
| Starting system | F: Recoil starter; E: Eletric starter |
| Fuel tank capacity [L(US.gal)] | 5.5 (1.45) |
| Lube capacity [L(US.gal)] | 1.65 (0.44) |
| Fuel consumpition [g(ml)/KWh] | 3000rpm: 275 (376) |
| 3600rpm: 281 (385) | |
| Fuel | 0 (summer), -10 (winter) diesel oil |
| Lube | SAE10W30 (above CC grade) |
| Overall dimension [mm(in)](L×W×H) | 420×440×495 (16.53×17.32×19.49) |
| Net weight [kg(lbs)] | Recoil starter type: 48 (105.6) |
| Electric starter type: 53 (116.6) | |
| Rotaion direction (view fr | Clockwise |
EPA approved diesel engine, 1 cylinder, air cooled, 4 stroke, vertical, direct injection, manual or electric starter optional
