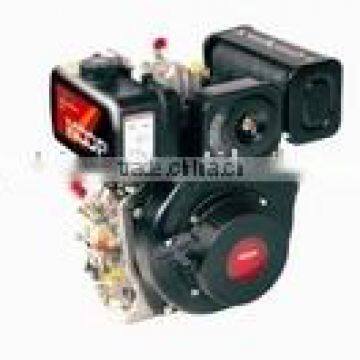

EPA 5HP 1 Cylinder Diesel Engine

Name: EPA 5HP 1 Cylinder Diesel Engine
Brand: KOOP
SKU: 106324527

Negotiable MOQ: 6 Sets (Price negotiable depending on order volume and customization)

Key Specifications

Usage:

Automobile

Fuel:

Other, Diesel, diesel

Stroke:

4 Stroke

Changzhou Koop Power Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Usage Automobile

Fuel Other, Diesel, diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Air-cooled

Start Electric Start

Place of Origin Jiangsu, China

Brand Name KOOP

Model Number KDF178/FE

Specifications

EPA approved diesel engine, 5HP, single cylinder, air cooled, four stroke, Vertical, electric starter or recoil starter

EPA 5HP 1 cylinder diesel engine, Air Cooled Diesel Engine

We are the manufactory, the price will be more favorable & reasonable for the direct order.

Model	KD178F/FE
Type	Vertical, 1-cylinder, 4-stroke, air-cooled
Combustion system	Direct injection
Bore×storke [mm(in)]	78×62 (3.07×2.44)
Displacement [L(cc)]	0.296(406)
Compression ratio	20:1
Rated power [KW/rpm]	3.7/3000,4/3600
Rated power [HP/rpm]	5.0/3000,5.5/3600
Rated speed (rpm)	3000/3600
Starting system	F: Recoil starter; E: Eletric starter
Fuel tank capacity [L(US.gal)]	3.5 (0.92)
Lube capacity [L(US.gal)]	1.1(0.29)
Fuel consumpition [g(ml)/KWh]	3000rpm: 276 (378)
Fuel consumpition [g(ml)/KWh]	3600rpm: 285 (391)
Fuel	0 (summer), -10 (winter) diesel oil
Lube	SAE10W30 (above CC grade)
Overall dimension [mm(in)](L×W×H)	400×420×450 (15.75×16.54×17.72)
Net weight [kg(lbs)]	Recoil starter : 33 (72.6)
Net weight [kg(lbs)]	Electric starter : 38 (83.6)
Rotaion direction (view from flywheel)	Clockwise
