Help CenterPTFE Rotary Seals (BNS)
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
Hydraulic
Material:
PTFE
Payment & Shipping
Payment Methods:
Port of Shipment:
all ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Style
Hydraulic
Material
PTFE
Place of Origin
Zhejiang, China
Brand Name
AILATE
BNS is the preferably used as a double acting rotary seal for hydraulic and pneumatic equipment in sectors such as: Rotary distributors, high pressure valve stems, manipulators, pivoting motors in mobile hydraulic and machine tools, hydraulic motors and so on.
Advantages
- Available for internal and external sealing applications
- Low friction
- Stick-slip-free starting, no sticking
- High abrasion resistance and dimensional stability

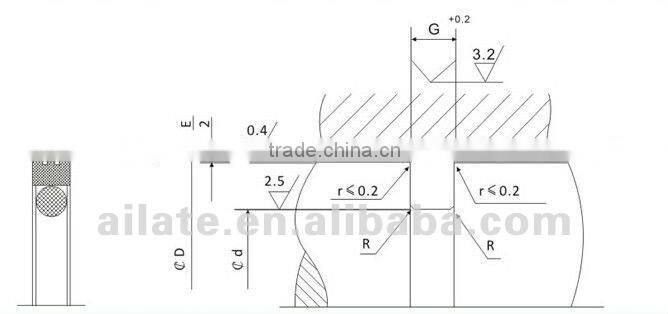

- Simple groove design, small groove dimensions
- Easy installation
Operating conditions
Pressure: ≤40Mpa
Temperature: -35~+200°c
(FKM O-Ring should be used when temperature is over 100°c).
Speed: ≤0.2m/s.
Media: Almost all media.
Material
Material: Seal ring: PTFE,
O-Ring: NBR/FKM
Good Quality, Competitive Price.
Welcome to contact us for detailed information.
 |
|
|
