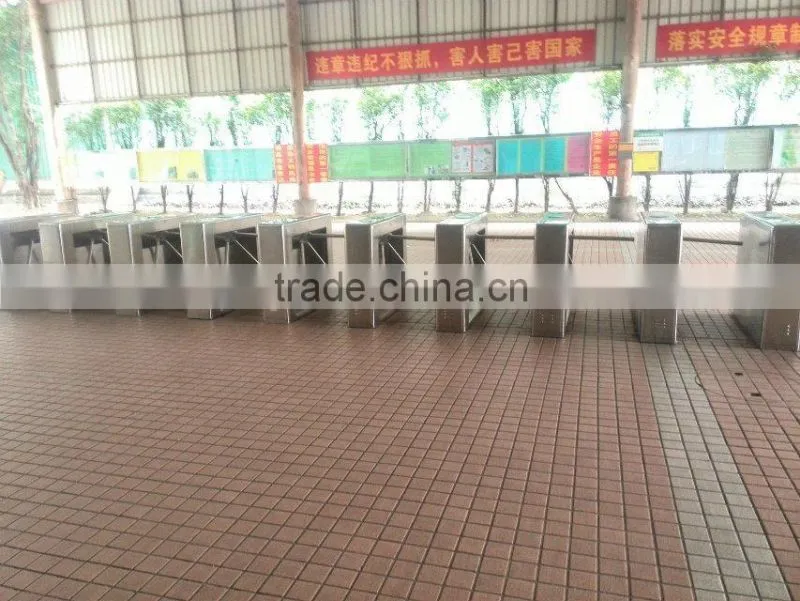

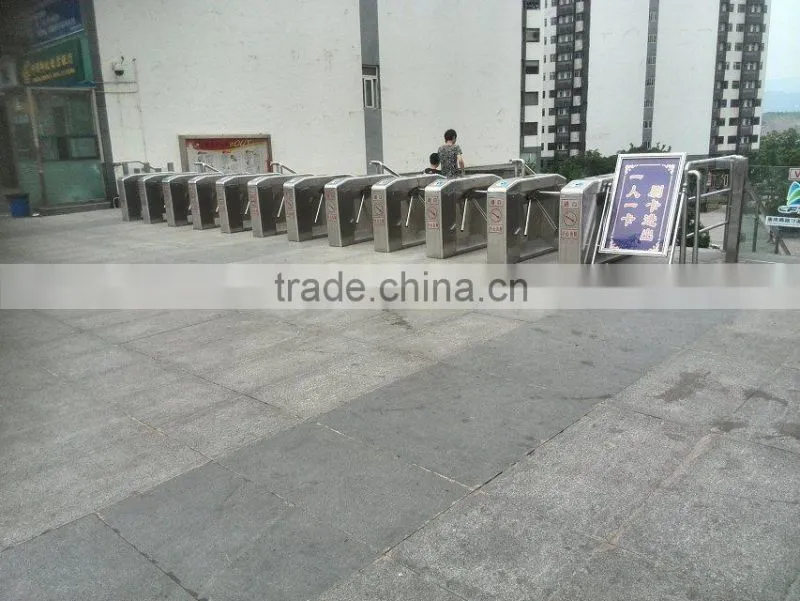

Tripod turnstile
The whole housing of tripod turnstile is made of 304 stainless steel, and it's rustproof, durable, and can resist external destroy. Its structure of cuboid framework and pole not only provides people with civilized and orderly transit manner but also prevents the illegal in and out effectively. Meanwhile, in the emergency, it can drop the pole promptly.
Advantages:
1. Being compatible wth serveral control devices IC , ID, magcard, barcode, fingerprint etc.
2. Smoothly operation, low noice
3. Unlocking is quick and reliable.
4. Automatically reset function: It will automatically lock if the pedestrian hasn’t pass through the channel in the pre-set time after the opening. The passing time is adjustable.
5. Auto-drop-arm function:the middle arm will drop down automatically(default) or free pass(optional) when power is off.
6. Emergency-escape function:the middle arm will automatically drop by pressing the emergency button which can be remote controlled whether the power is on or not.
7. Several working modes are optional, namely two-direction card reading for limiting flow capacities, or, one passage works while another is set to forbid passing, or, one passage normally operates while another is free to pass
8. Counting Function of the controllor, LED figure display function (optional)
9. Memory Function attached in the controllor
10. With standard input, output interface, it's best choice of system integration buyers.
Specification:
Technical parameters | |
Housing material |
304 stainless steel |
Dimension |
L1200*W280*H980mm |
Arm length |
520mm |
Net weight |
60Kg |
Power |
24V DC |
Voltage |
AC85-240V |
Frenquency |
50/60Hz |
Communication interface |
RS485 |
Input interface |
Dry contact signal/12V level signal/DC 12V pulse signal |
Normal life-span |
5 million times |
Transit speed |
30 persons/min |
Working environment |
Indoor/outdoor |
Temperature |
-10C to 50C |
Relative humidity |
≤90% no condensation |
Fields of Application
Stadiums and sports facilities
Swimming pools and thermal baths
Gyms and fitness centres
Amusement and theme parks
Exhibition centres and trade fairs
Zoos
Museums
Public transport
