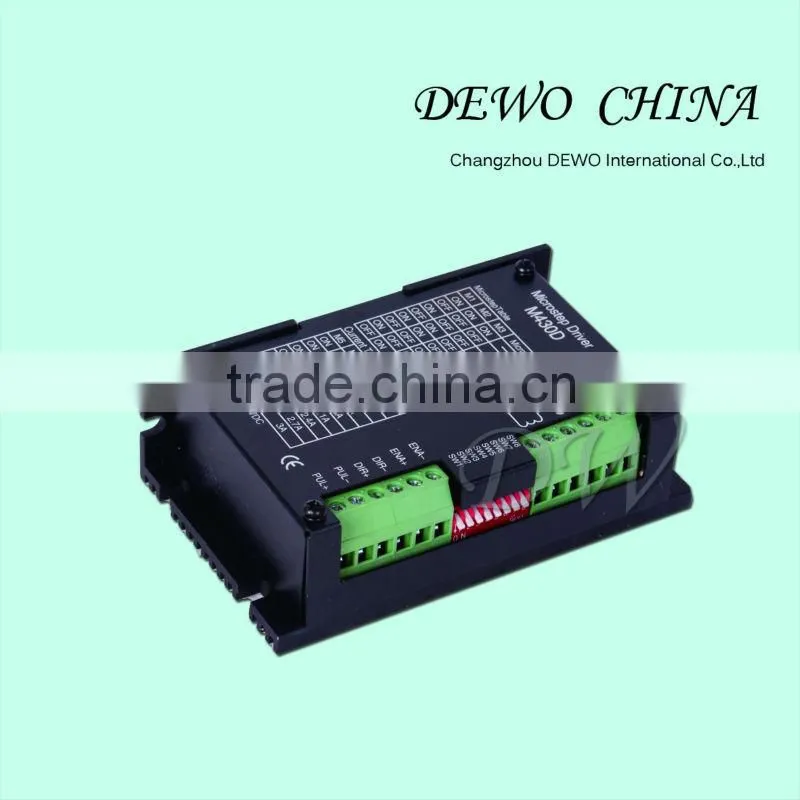

Help CenterM430D Step Motor Driver 24V~36V,high Accuracy, Low Noise, High Performance, High Torque
Related Products
-
Digital Motor Driver DM422D, With Low Consumption and High PerformanceUS$ 15 - 30MOQ: 1 Piece -
High Torque,2-phase Hybrid Stepper Motor Driver,stepper Gear Speed Reducer DriverUS$ 25 - 45MOQ: 1 Set
-
High Torque,2-phase Hybrid Stepper Motor Driver,stepper Power Supplies DriverUS$ 25 - 45MOQ: 1 Set
-
Closed Loop Stepper Motor Driver Using New 32-bit DSP With High Performance, Step Gear Speed Reducer DriverUS$ 15 - 30MOQ: 1 Piece
-
High Torque,2-phase Hybrid Micro EngineUS$ 25 - 45MOQ: 1 Set
Overview
The M430D is a new generation microstep stepper motor driver. Due to the adoption of the advanced bipolar constant-current chopper driver technology, it shows stable operation, provides excellent high torque. Moreover, it significantly reduces the noises and vibration of the operating motor. The M430D has the feature of low-noise, low-vibration and low-heating. The M430D is DC18-40V power supply. It applies to 2-phase hybrid stepper motor under 3.0A current. The M430D has seven kinds of microsteps. The maximum step number is 12800 steps/rev (microstep is 1/64). The peak operating current ranges from 0.9A to 3.0A., and the output current has 8 stalls. The M430D has automatic semi-flow, motor misconnected protection functions and so on.
Applications
It can be applied in a variety of small scale automation equipment and instruments, such as labeling machine, cutting machine, packing machine, drawing machine, engraving machine, CNC machine and so on. It always performs well when it is used in equipment which requires for low-vibration, low-noise, high-precision and high-velocity.
Microstep selection
Pulse/Rev |
SW1 |
SW2 |
SW3 |
200 |
off |
off |
off |
400 |
on |
off |
off |
800 |
off |
on |
off |
1600 |
on |
on |
off |
3200 |
off |
off |
on |
6400 |
on |
off |
on |
12800 |
off |
on |
on |
Current selection
Peak |
RMS |
SW5 |
SW6 |
SW7 |
0.9A |
0.65A |
on |
on |
on |
1.2A |
0.86A |
on |
on |
off |
1.5A |
1.10A |
on |
off |
on |
1.8A |
1.28A |
on |
off |
off |
2.1A |
1.50A |
off |
on |
on |
2.4A |
1.72A |
off |
on |
off |
2.7A |
1.93A |
off |
off |
on |
3.0A |
2.14A |
off |
off |
off |
