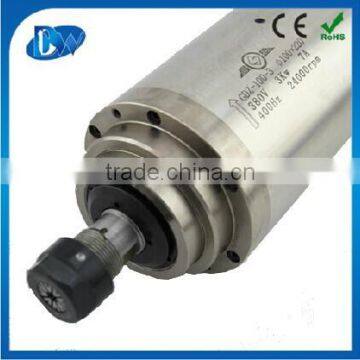

3kw Spindle Moulder Water Cooled Twisting Machine Spindle
US$ 225 - 274
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GDZ
Model Number:
GDZ100-3
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2.2 kw Dvd Spindle Motor , Cnc Router Spindle Motor for Metal MillingUS$ 322 - 467MOQ: 1 Piece -
4.5kw Water Cooled Spindle Motor Water Cooled Cnc Router Spindle Motor ItalyUS$ 225 - 274MOQ: 1 Piece
-
2.2 kw Air Cooled Cnc Drilling Spindle Motor for Woodworking Cnc RouterUS$ 322 - 467MOQ: 1 Piece
-
4kw Water Cooled Spindle Motor Water Cooled Cnc Router Spindle Motor Italy Quality ChoiceUS$ 225 - 274MOQ: 1 Piece
-
Water Cooled Cnc Router Atc Spindle Motor Good Quality ,high SpeedUS$ 225 - 274MOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
GDZ
Model Number
GDZ100-3
Application
Milling
Maximum Torque
3.0kw
Drive
Motor
Operating Speed
24000r/min
1. Imported bearings; bearings with dust cover, more secure
2. Using grinding process, can improve motor concentricity and prolong life
3. Air-cooled motor, sculpture forceful, high precision, long life

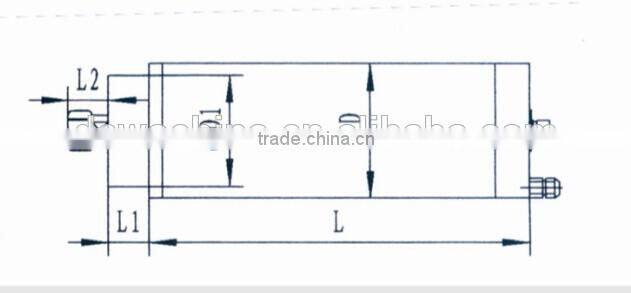

The dimension of air spindle motor

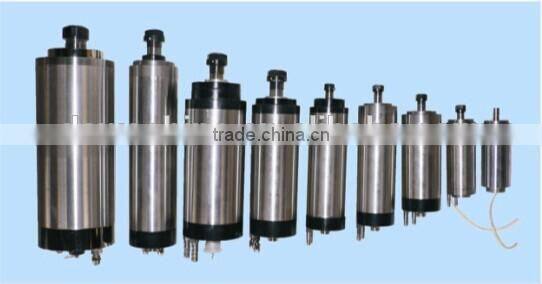

Technical date and models:
| spindle type | speed | rated power | voltage | current | frequency | Demensions(mm) | Joint of nose | cool way | Weight | ||||
| (r/min) | (kw) | (V) | (A) | (Hz) | D | D1 | L | L1 | L2 | collet | kg | ||
| GDZ58-800 | 60000 | 0.8 | 75 | 6.5 | 400 | 58 | 48 | 158 | 5 | 20 | ER11 | water | 2.6 |
| GDZ65-800 | 24000 | 0.8 | 75 150 220 | 6.5 6 5 | 400 | 65 | 48 | 158 | 5 | 20 | ER11 | water | 2.6 |
| GDZ65-800A | 24000 | 0.8 | 150 220 | 6 5 | 400 | 65 | 48 | 195 | 5 | 22 | ER11 | water | 3 |
| GDZ80-1.2 | 24000 | 1.2 | 220 | 5 | 400 | 80 | 53.5 | 156 | 8 | 28 | ER11 | water | 3.6 |
| GDZ80-1.2B | 24000 | 1.2 | 220 | 4 | 400 | 80 | 53.5 | 170 | 18 | 26 | ER11 | water | 4 |
| GDZ80-1.5 | 24000 | 1.5 | 220 | 6 | 400 | 80 | 53.5 | 170 | 8 | 27 | ER11 | water | 4 |
| GDZ80-1.5B | 24000 | 1.5 | 220 | 5 | 400 | 80 | 53.5 | 188 | 8 | 28 | ER11 | water | 4.4 |
| GDZ80-2.2 | 24000 | 2.2 | 220 | 8 | 400 | 80 | 58.5 | 213 | 8 | 26 | ER16 | water | 5 |
| GDZ80-2.2B | 24000 | 2.2 | 220 | 8 | 400 | 80 | 68 | 213 | 8 | 36 | ER20 | water | 5 |
| GDZ80-2.5C | 24000 | 2.5 | 220 | 8.5 | 400 | 80 | 68 | 295 | 8 | 40 | ER20 | water | 6.8 |
| GDZ85-1.5 | 24000 | 1.5 | 220 | 5 | 400 | 85 | 66 | 212 | 12 | 22 | ER16 | water | 7.6 |
| GDZ100-3 | 24000 | 3 | 380 220 | 7 12 | 400 | 100 | 80 | 220 | 27 | 37 | ER20 | water | 9 |
| GDZ100-4 | 24000 | 4 | 380 220 | 10 13 | 400 | 100 | 80 | 260 | 27 | 37 | ER20 | water | 11.6 |
| GDZ105-3 | 24000 | 3 | 380 220 | 7 12 | 400 | 105 | 80 | 220 | 27 | 37 | ER20 | water | 11 |
| GDZ65F-800 | 24000 | 0.8 | 220 | 4 | 400 | 65 | 48 | 188 | 10 | 22 | ER11 | air | 2.5 |

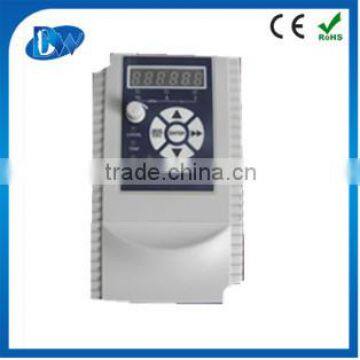

Suitful VFD (220VAC or 380VAC)
Suitful collet (ER serise)
Water pump
Bracket holder:
