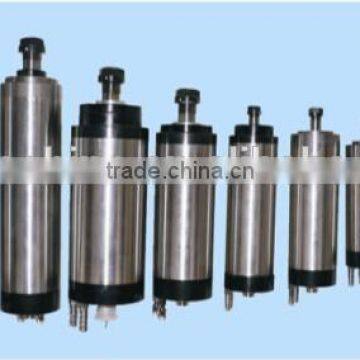

Water Cooled CNC Milling Spindle 220v 1.5kw ac Motor

Water Cooled CNC Milling Spindle 220v 1.5kw ac Motor thumbnail-1
Water Cooled CNC Milling Spindle 220v 1.5kw ac Motor thumbnail-2
Water Cooled CNC Milling Spindle 220v 1.5kw ac Motor photo-1
Water Cooled CNC Milling Spindle 220v 1.5kw ac Motor photo-2
US$ 225 - 274 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
GDZ
Model Number:
GDZ80-2.2
Contact Supplier Request Quote Chat Now
Changzhou Dewo International Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name GDZ
Model Number GDZ80-2.2
Application Milling
Maximum Torque 2.2kw
Drive Motor
Operating Speed 24000r/min

Water Cooled CNC Milling Spindle 220v 1.5kw ac motor





1. Imported bearings; bearings with dust cover, more secure

2. Using grinding process, can improve motor concentricity and prolong life

3. Air-cooled motor, sculpture forceful, high precision, long life

The dimension of air spindle motor

Water Cooled CNC Milling Spindle 220v 1.5kw ac motor

Technical date and models:



spindle type speed  rated power        voltage  current  frequency  Demensions(mm) Joint of nose  cool way Weight
  (r/min) (kw)  (V)   (A)  (Hz) D D1 L L1 L2 collet   kg
GDZ58-800 60000 0.8 75 6.5 400 58 48 158 5 20 ER11 water 2.6
GDZ65-800 24000 0.8 75        150       220 6.5          6           5 400 65 48 158 5 20 ER11 water 2.6
GDZ65-800A 24000 0.8 150        220 6           5 400 65 48 195 5 22 ER11 water 3
GDZ80-1.2 24000 1.2 220 5 400 80 53.5 156 8 28 ER11 water 3.6
GDZ80-1.2B 24000 1.2 220 4 400 80 53.5 170 18 26 ER11 water 4
GDZ80-1.5 24000 1.5 220 6 400 80 53.5 170 8 27 ER11 water 4
GDZ80-1.5B 24000 1.5 220 5 400 80 53.5 188 8 28 ER11 water 4.4
GDZ80-2.2 24000 2.2 220 8 400 80 58.5 213 8 26 ER16 water 5
GDZ80-2.2B 24000 2.2 220 8 400 80 68 213 8 36 ER20 water 5
GDZ80-2.5C 24000 2.5 220 8.5 400 80 68 295 8 40 ER20 water 6.8
GDZ85-1.5 24000 1.5 220 5 400 85 66 212 12 22 ER16 water 7.6
GDZ100-3 24000 3 380       220 7             12 400 100 80 220 27 37 ER20 water 9
GDZ100-4 24000 4 380       220 10            13 400 100 80 260 27 37 ER20 water 11.6
GDZ105-3 24000 3 380      220 7           12 400 105 80 220 27 37 ER20 water 11
GDZ65F-800 24000 0.8 220 4 400 65 48 188 10 22 ER11 air 2.5








 Suitful VFD (220VAC or 380VAC)

Water Cooled CNC Milling Spindle 220v 1.5kw ac motorWater Cooled CNC Milling Spindle 220v 1.5kw ac motor





Suitful collet (ER serise)

Water Cooled CNC Milling Spindle 220v 1.5kw ac motor

Water pump



Water Cooled CNC Milling Spindle 220v 1.5kw ac motor



Bracket holder:



Water Cooled CNC Milling Spindle 220v 1.5kw ac motor
