Help CenterDWSK05 Brushless dc Motor Driver With High Quality Good Price
Related Products
-
3-phase Brushless dc Motor Drivers With High Quality and Good PriceUS$ 15 - 24MOQ: 1 Piece -
High Quality and Good Price 2 Phase 0.3KG Brushless Microstep DriverUS$ 12 - 25MOQ: 1 Piece
-
3-phase Brushless dc Motor Drivers With High Quality and Good PriceUS$ 15 - 24MOQ: 1 Piece
-
2 Phase 0.3KG Brushless dc Motor Driver(High Quality and Good Price)US$ 12 - 25MOQ: 1 Piece
-
Encoder Stepper Motor ,Nema 34 Closed Loop Hybrid Stepping Motor ManufacturingUS$ 115 - 145MOQ: 1 Piece
Specifications:
|
Model Specifications |
24ZWSK |
36ZWSK |
|
|||||||||||||
05-S |
10-S |
|
|
05-S |
10-S |
|
|
|
|
|
|
|||||
Voltage VDC |
24(30V max) |
36(45V max) |
|
|||||||||||||
Phase |
3-Phase |
|||||||||||||||
Peak Current A |
5 |
10 |
|
|
5 |
10 |
|
|
|
|
|
|
||||
Continuous Current A |
2.5 |
5 |
|
|
2.5 |
5 |
|
|
|
|
|
|
||||
Hall Sensor |
3 hall sensors , 120deg (electrical) angle , 5V operation. |
|||||||||||||||
Inner DC Line Fuse A |
5 |
10 |
|
|
5 |
10 |
|
|
|
|
|
|
||||
Speed raising time S |
0.5-10 |
|||||||||||||||
Input signals |
5V TTL or 5V CMOS |
|||||||||||||||
Max Speed(SV=5V) |
1500rpm/3000rpm/6000rpm/12000rpm (Optional) |
|||||||||||||||
|
|
|||||||||||||||
Control mode (Optional) |
PI speed close-loop control |
|||||||||||||||
Low Voltage Protection V |
16V min |
26V min |
|
|||||||||||||
Dimensions |
105.5mmX64mmX24mm |
|||||||||||||||
Chopping frequency KHz |
15 |
|||||||||||||||
Weight Kg |
0.2 |
|||||||||||||||
Control signals: F/R----High=Forward, Low=Reverse. SV-----Speed voltage input 0-5V. PG-----Speed pulse output (OC output) 24pulses/r @ 8 poles. | ||||||||||||||||

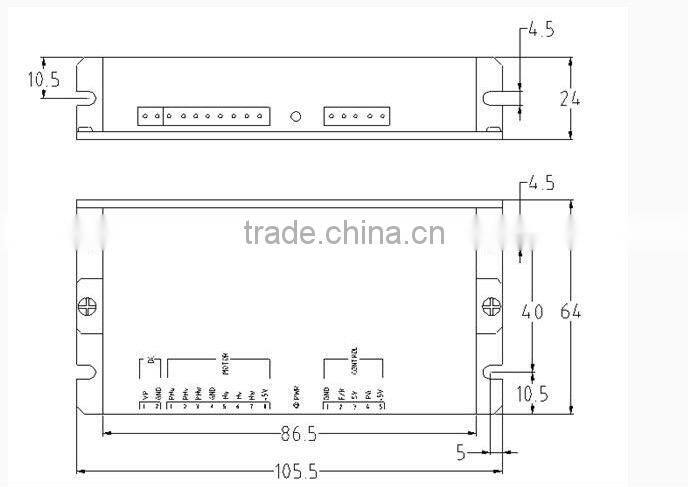

Dimensions (mm) :

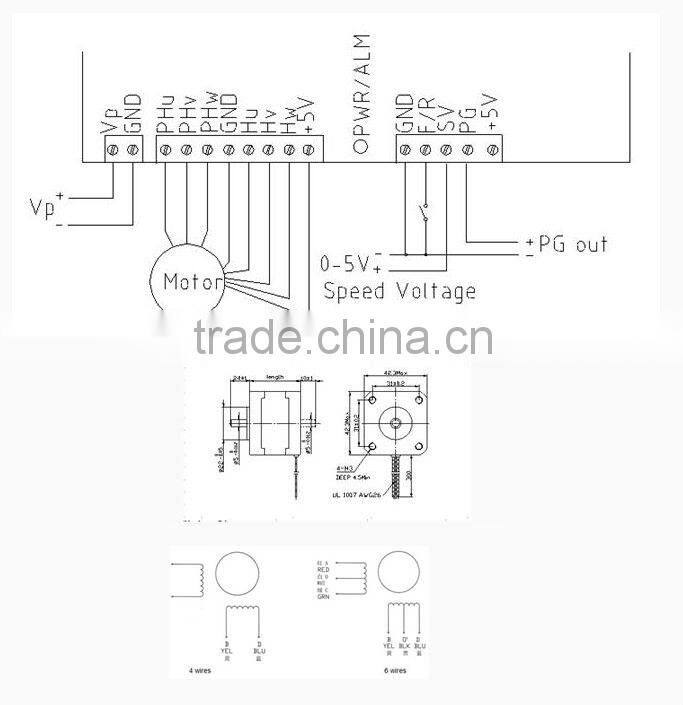

Connections:
