Specifications:
|
Model Specifications |
24DWSK15 |
36DWSK15 |
48DWSK15 |
|||||||||
Voltage VDC |
24(30V max) |
36(45V max) |
48(56V max) |
|||||||||
Phase |
3-Phase |
|||||||||||
Peak Current A |
|
|
15 |
|
|
|
15 |
|
|
|
15 |
|
Continuous Current A |
|
|
7.5 |
|
|
|
7.5 |
|
|
|
7.5 |
|
Hall Sensor |
3 hall sensors , 120deg (electrical) angle , 6.25V operation. |
|||||||||||
Inner DC Line Fuse A |
|
|
15 |
|
|
|
15 |
|
|
|
15 |
|
Speed raising time S |
0.5-10 |
|||||||||||
Input signals |
5V TTL or CMOS (6.25V max) |
|||||||||||
Max Speed(SV=4V,SV gain=1) |
1500rpm/3000rpm/6000rpm/12000rpm (Optional) |
|||||||||||
Speed Voltage (SV) gain |
0-1.0 (Gain=1 @SV ADJ on the Right) |
|||||||||||
Control mode |
PI speed close-loop control |
|||||||||||
Low Voltage Protection V |
16V min |
26V min |
36V min |
|||||||||
Dimensions |
161.5mmX81.2mmX31mm |
|||||||||||
Chopping frequency KHz |
15 |
|||||||||||
Weight Kg |
0.30 |
|||||||||||
Control signals: F/R----High=Forward, Low=Reverse. EN-----High=Disable, Low=Enable. BK-----Low=Motor brake, High=Operating. SV-----Speed voltage input 0-5V. PG-----Speed pulse output (OC output) 24pulses/r @ 8 poles. ALM-------Alarm output (OC output),Low=Alarm. | ||||||||||||

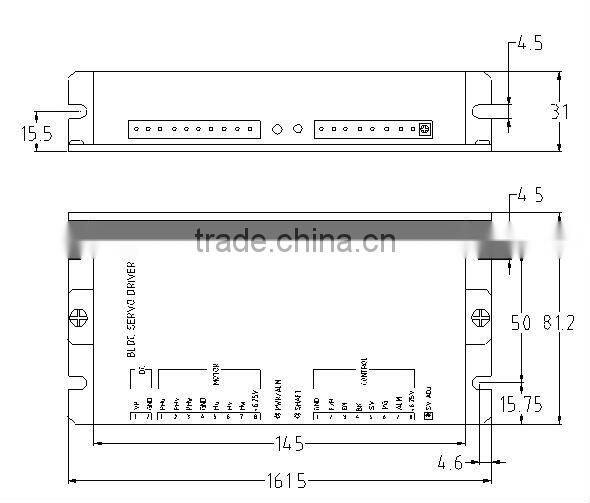

Dimensions (mm):

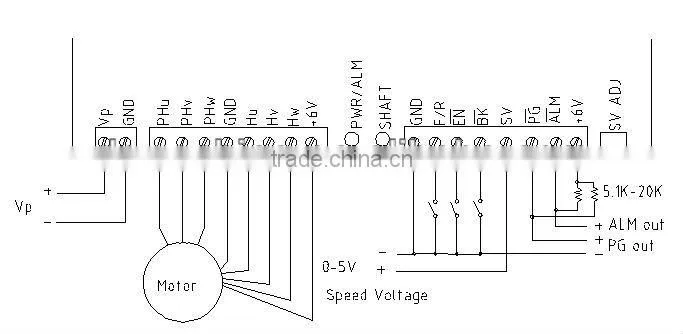

Connections:
