Specifications
A519 Industries Seamless Motorcycle Steel Tubes1- Outside Diameter: 15 to 80mm
2- Thickness: 1 to 14mm
3 fast delivery
A519 Industries Seamless Motorcycle Steel Pipe/Tube Manufacturer
Company name |
Hebei Province Gold Mysterious Pipe Co.,ltd |
||||
Business Type |
Manufacturer |
||||
Product |
Common seamless steel pipe; finish-drawing pipes; finish-rolling pipes; alloy steel pipe; special shape pipes |
||||
Contact Tel |
0086-0312-6721288 |
||||
Specific Description | |||||
Chinese |
English |
||||
Outside Diameter |
Wall Thickness |
Outside Diameter |
Wall Thickness |
||
15mm-80mm |
1mm-14mm |
0.315inch to 4.33 inch |
0.039inch to 0.55inch |
||
Material and Standard | |||||
Item |
Chinese Standard |
American Standard |
German Standard |
||
1) |
10# |
A53A |
St37 |
|
|
A106A |
St37-2 |
DIN17175 |
|||
A179C |
St35.8 |
DIN1629 |
|||
2) |
20# |
ASTMA106-B |
St45-8 |
DIN17175 |
|
ASTMA53-B |
St42-2 |
DIN1626 |
|||
ASTMA178-C |
St45-4 |
DIN1629 |
|||
|
3)
|
45#
|
ASTMA1045 |
CK45 |
|
|
|
4)
|
16Mn
|
ASTMA210-C |
St52 |
DIN1629/3 |
|
St52.4 |
DIN1629/4 |
||||
5) |
37Mn5 |
J55 |
|
|
|
Note | |||||
1)Packing |
according to customer's requirment |
||||
2)Paymnet |
T/T or L/C |
||||
3)Use Place |
Structure ,Transport gas and oil ,making machine part and so on |
||||
Company Information
Hebei Province Gold Mysterious Pipe Co.,Ltd , founded in May 2009,It has a floor area of 100 mu, a registered
capital of RMB 20 million and a total investment of RMB 110 million.The company specializes in production of
various seamless steel pipes, with the wall thickness of 1mm to 10 mm and the outer diameter of 8mm to 76mm,
including common seamless steel pipes, fine pull pipes, fine rolled pipes, alloy steel pipes, special pipes.
Factory Picture
1.various seamless steel pipe/tube
2.OD:15mm-80mm;WT:1mm-14mm
3.Standard: GB/T8162 , GB/T8163 ,ASTM A53 ,ASTM A106 ,DIN1629 , API 5L
4.Steel grade:
GB/T8162 , GB/T8163:10#, 20#, 35#, 45#, 16MN(Q345B)
ASTM A53 GR. A , GR. B, GR. C
ASTM A106 GR. A , GR. B, GR. C
DIN 162 St 37.0, St 44.0, St 52.0
5. Process method:cold rolling or cold drawn
6. Surface coating:varnish painted on pipe(black painting),anticorrosion oil,galvanized,or painting as customer's request.

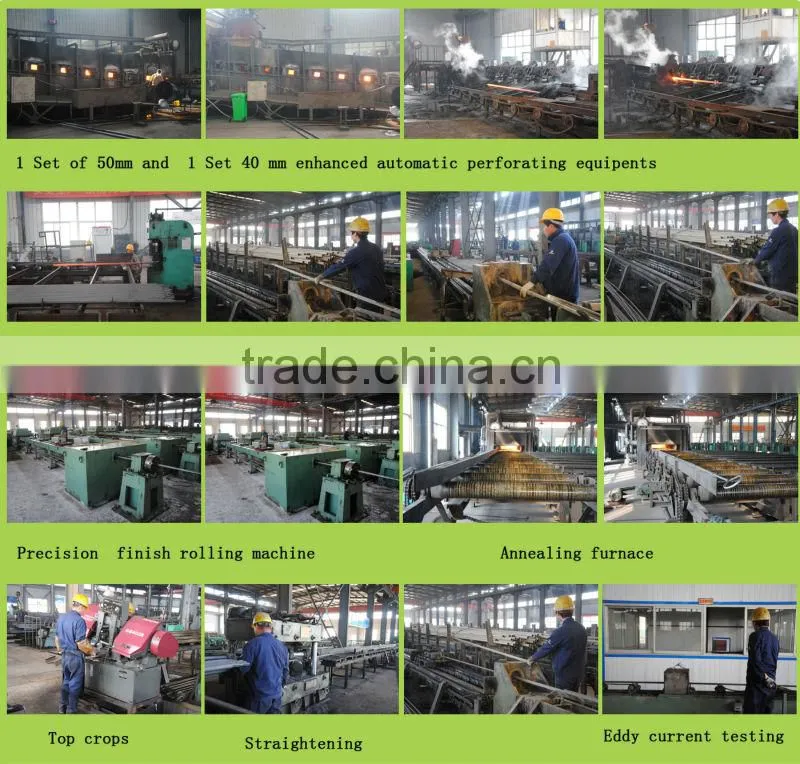

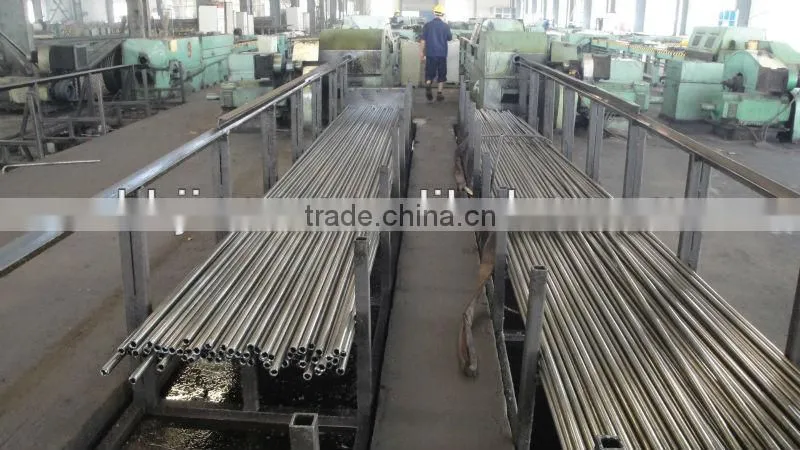

Production Line
Step1 Material Step 2. Perforate Step 3.Picking
Step 4 .Cold drawing Step 5.Anneal Step 6.Check
Production Equipment
1 set of Φ 50 enhanced automatic perforating equipment
1 set of Φ 40 automatic perforating equipment
2 sets 10 tons chain cold-drawn machine
2 sets 15 tons chain cold-drawn machine
4 sets 20 tons chain cold-drawn machine
1 sets 45 tons chain cold-drawn machine
1 sets 65 tons chain cold-drawn machine
8 sets of LG30 type 2 roller cold-rolling mill
4 sets of LG40 type 2 roller cold-rolling mill
1 sets of LG50 2 roller cold-rolling mill
1 set roller type continuously heat treatment furnace
1 set of GJ Φ 20mm-80mm pipe straightening machine
1 set of GJ Φ 50mm pipe straightening machine
1 set of GJ Φ 6mm-12mm pipe straightening machine

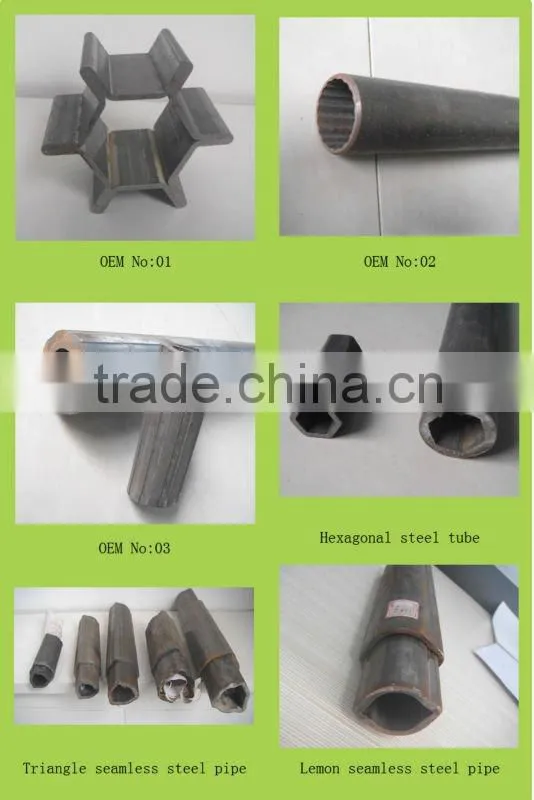

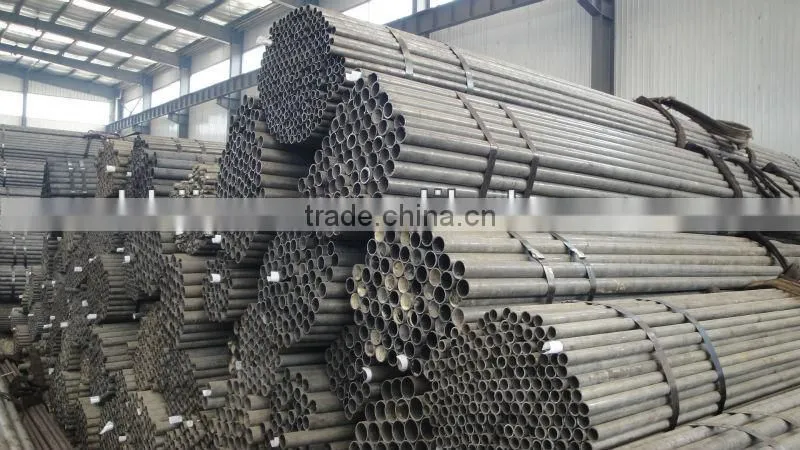

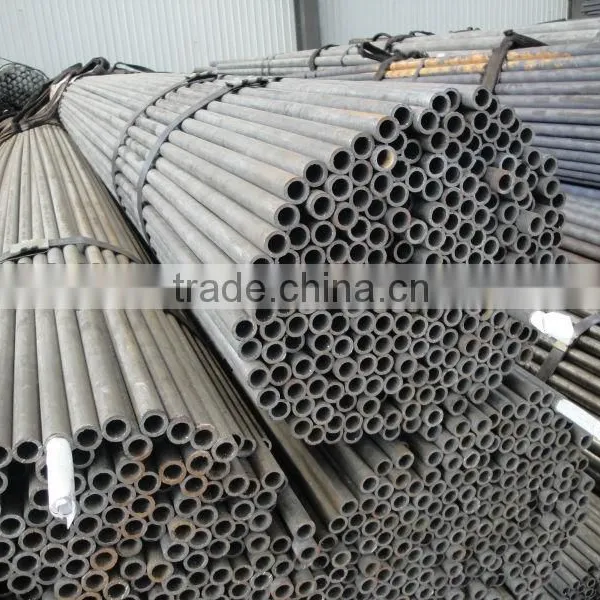

Finished Product
Test Equipment
Usage
Our products are widely used for the auto/motorcycle/agricultural machine/railway project/low-high pressure boiler tubes/bearing tubes/ships manufacturing industries/oil and other high standards processing & manufacturing
industries.
