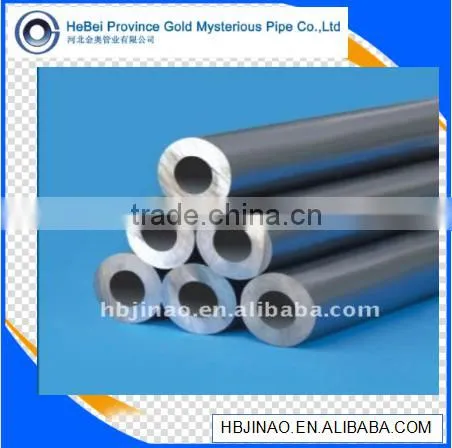

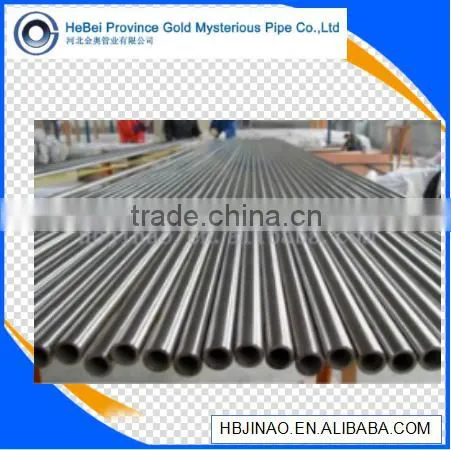

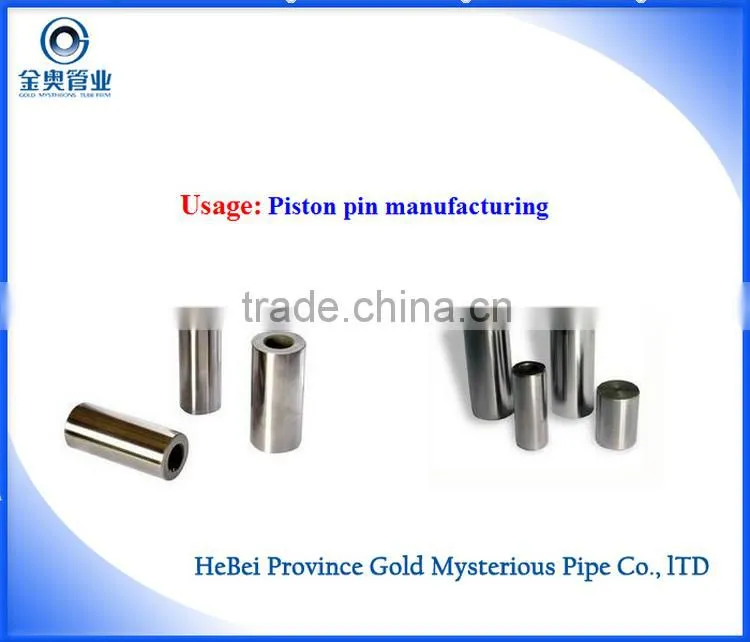

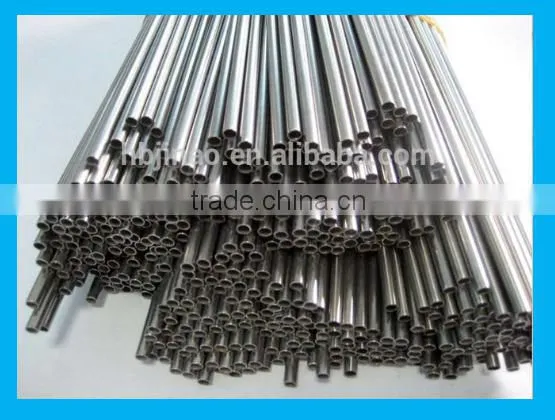

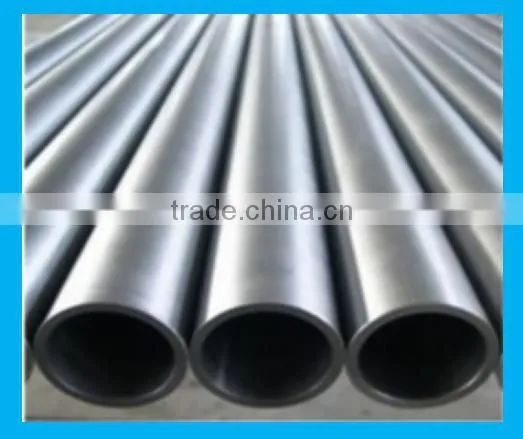

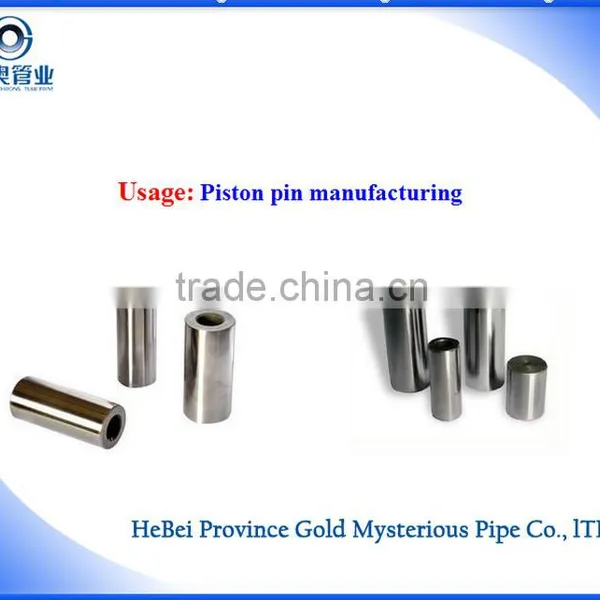

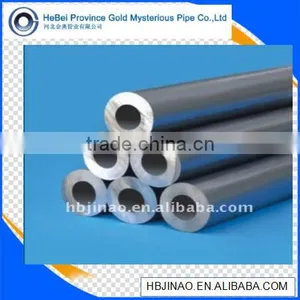

20Cr/16MnCr5/17Cr3 seamless steel pipe for piston pin
Quality comes from power,professional makes perfect!
1.The chemical compostion of the material
| Material | Chemical composition(%) | ||||||||
| C | Si | Mn | P | S | Cr | Mo | Cu | Ni | |
| 20Cr | 0.18-0.24 | 0.17-0.37 | 0.50-0.80 | <=0.035 | <=0.035 | 0.70-1.00 | <=0.15 | <=0.30 | <=0.30 |
| 16MnCr5 | 0.14-0.19 | <=0.40 | 1.00-1.30 | <=0.035 | 0.010-0.035 | 0.80-1.10 | - | - | - |
| 17Cr3 | 0.14-0.20 | 0.15-0.35 | 0.60-0.90 | <=0.030 | <=0.030 | 0.90-1.20 | - | - | <=0.25 |
2.Outer diameter:15-80mm Wall thickness:1-14mm Length:3-11.8m
3.Material:20Cr,17Cr3,16MnCr5,SAE 5120
4.Technique:cold drawn or cold rolled
5.Test:ECT/UT
6.Delivery date:15-35 days after confirming the order,we also need to according to your quantity.
7.Payment terms:30% T/T in advance,the balance should be paid before deliver the goods.
8.Packing:woven bags in bundles;plastic caps at the ends;as customer's requirements.
9.Shipping:
20 feet container load 20-25 tons pipe,which length is under 5.8m;
40 feet container load 20-25 tons pipe,which length is under 11.8m;
We will consider bulk cargo when the goods are more than 200 tons to save freight fee for our customers.
10.Price:It will be the best price when the quantity reaches one full container.
1.Raw material inspection:to check whether the chemical composition is qualified or not.
2.Heat pipes inspection:to measure the outer diameter and the wall thickness of the pipe.
3.Semifinished products inspection:to inspect the tolerance and the surface of the pipe.
4.Patrol inspection:to check the inner diameter and the WT of the pipe.
5.Performance testing:to test the mechanical performance of the pipe.
6.ECT/UT:we need test the pipe one by one.
7.Artifical inspection:to measure the OD,WT,and the tolerance of the pipe.
Lisa Dong
Address:Pangkou Automobile and Agricultural Accessories Industrial Park,Gaoyang Country,Baoding City,Hebei Province
Phone:86-312-6721288
QQ:1079775795
Wechat:15230627357
Welcome to inquiry!
