Product Details

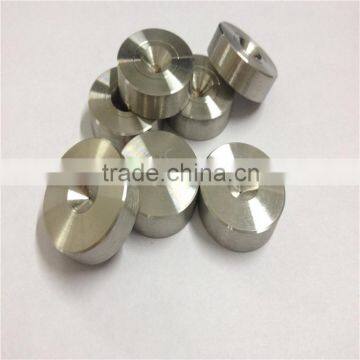

tungsten carbide wire drawing dies
Specifications
Tungsten Carbide drawing dies
Good wear resistance
Low friction loss
High quality & High precision
Advanced damascene proces
The tungsten carbide drawing die adopts high-quality hard alloy as its core, with high hardness, good thermal conductivity, and low friction coefficient. In the process of using, it shows good corrosion resistance and impact resistance, and applicable to the drawing of black metal, large size wire, and which the drawing condition is worse.
The application of difference material corresponding:
Tungsten carbide mark |
Density g/cm³ |
Intension MPa |
Hardness HRA |
Application |
YG6X |
14.95 |
1800 |
91.5 |
Suitable for wire drawing die which diameter of inner bore is less than 6.00 mm. |
YG6 |
14.95 |
1900 |
90.5 |
To drawing non-ferrous metal bar which diameter of inner bore is less than 20.00mm, and pipe inner bore less than 10.00mm |
YG8 |
14.8 |
2200 |
89.5 |
Used in the drawing die for non-ferrous metal bar and tube stock. |
YG10 |
14.5 |
2400 |
88.5 |
|
YG15 |
14 |
2800 |
87 |
For steel bar and pipe with high shrinkage. |
In order to the use of tungsten carbide drawing dies more efficient, there are five points for attention:
1. the choice of equipment
2. pretreatment of wire material
3. choosing appropriate lubricant
4. exception handing
5. change fossilized dies in time
Minimum diameter range: 0.1mm.
Quality Assurance: Outmost care is takenwhile designing the profile of die as per standards and customer requirements. Mirror polish is done for better surface quality of output wire from die. TheAutomation used while the manufacturing of the size of the dies guarantees thetolerance in 0.001mm.

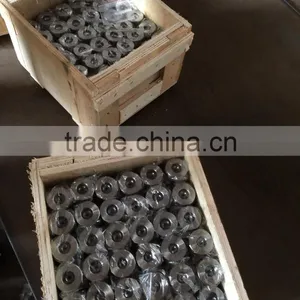

our loading and shipment photos
our clients and machine
