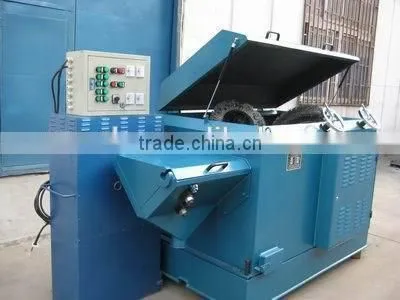

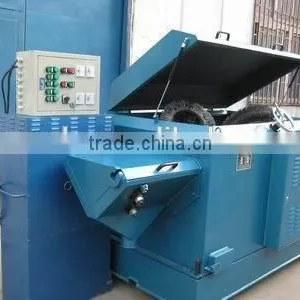

Wire descaler before wire drawing machine /wire drawing machine pretreated machine
New type descaling machine:
This equipment is applicable for high, medium, low carbon steel wire and stainless steel wire, for removing the wire surface dust, oxygen skin. It’s a very convenience step before drawing. This machine is bending + wire brush type. Its design offers the following advantages:
Automatic removing dust
-Improve the quality of finished products
-Remove 99% rust
Features:
(1) High production efficiency of pickling free drawing application derusting machine to replace the traditional shell, pickling, rinsing, plastering, phosphating, saponification, baking and other processes, continuous production greatly reduces the production processes, shorten the production cycle, reduce production costs, improve production efficiency.
(2) Product quality due to steel surface without residual acid or salt, fundamentally avoiding" hydrogen embrittlement" and other problems, steel wire derusting after the surface oil spills, drawing bright and long buy Stainless ( up to a maximum of 6 months does not rust ), conducive to the following process.
(3) Easy to operate the degree of rust can be conveniently in production at any time to adjust and control, the use of hand wheel adjustment operation, configuration of instrument display, intuitive, quick, do not need to stop the experiment, good quality control, derusting room with the transmission and regulation of institutions set up isolation seal, long service life of the equipment, adjustment, repair and maintenance is very convenient.
(4) Good environmental protection effect of low comprehensive cost production not consumption of acid, water, coal, the eradication of mist, waste acid, waste on the environment pollution, saving pollution government spending, clean, no dust, no harm to the health of the employees, high production efficiency, using a few months later save to recover the cost of investment.
Main technical parameters
This equipment applicable for high, low carbon steel and alloy steel wire rod drawing shelling, derusting comprehensive treatment.
1. Processing wire diameter: 8-16MM
2. Maximum line speed: 100 m / min
3. Cleaning brush wheel speed: 1440r / min
4. Rated power: 3 * 4kw + ( 2kw cleaner )
5. Size:3500*1250*1280( length * width * height)
6. Steel brush diameter: 420 * 250 * 80
7. Weight: 1400KGS
8. Dust remover weight: 45kg
9. Each device can handle the wire 8-16MM , 12-20 tons(8 hours)
10. Light rust-resistant wire time: 6 months
11. Each processing a ton of material of steel wire brush consumption not more than 0.01, that is also disposed wire 2500-3000 tons for a steel brush.
12. Rust removing machine for shelling wheel life treatment wire of 8000-10000 tons.
