product introduction
Online Ⅲ duct production line is composed of rack, leveling embossing machine, blunt pointed mouth and blunt square opening hydraulic press, hydraulic shear compression and bending. Electric control part adopts industrial control board control, the production of precision and stability is improved obviously. The maximum speed of 20 m/min. Length error is: + / - 0.8 mm. This system can meet the single class production capacity 1000 m2 square duct. Through its production of duct quality standards and reliable
The feature as following:
1.Can be used as TDC, TDF blanking production, also be used as sheet flattening production
2.Design and development has carried on the thorough research, to ensure smooth operation
3.The superior performance and low cost
4.Adopted the advanced numerical control, hydraulic control system, making the whole system runs stably, improving the precision of processing

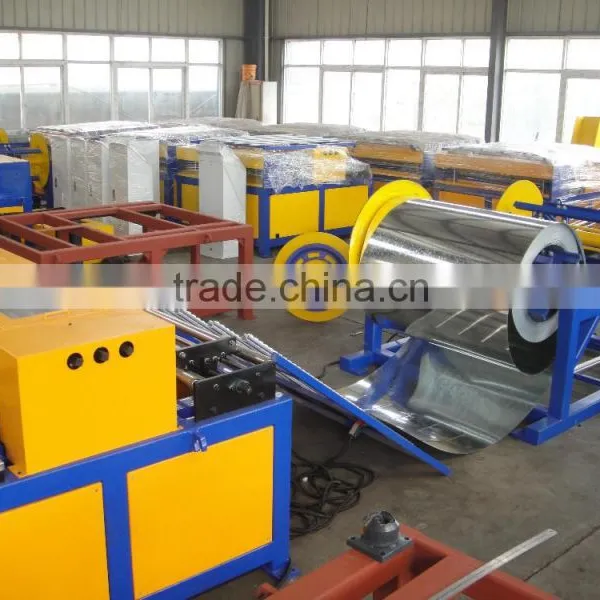

work photo
product show
Technical data
AML - Ⅲ duct automatic production line
1.Processing of 0.5 ~ 1.2 mm thickness of galvanized sheet or low carbon steel
2,Max working speed :20m/min;
3,Max processing width :1250mm;
4,Control tolerance Length tolerance: + / - 1 mm; Diagonal tolerance: + / - 1 mm
5,the hold rack is loading capacity is 5Ton.
AML - Ⅲ duct automatic production line, equipped with feeding frame, tray, into the feeder roller, block material, leveling embossing machine, hydraulic Angle of attack and hydraulic plate shears, level had been achieved motor speed, speed stability.
1.Retainer plate: for the convenience of customers, improve the work efficiency, change the retainer plate to increase within tight, improves the feeding speed. Retainer plate material feeding driven by a motor through the worm gear reducer, worm gear reducer has the self-locking function. Material tray bottoms limited position switch, can control the volume of automatic feeding and stop material, its control circuit with automatic feed, feed and electric material return at the function, control is simple and reliable.
2.Into the feed roller device: can be feed placed different positions according to the requirement.
3.Loading bay: adopt mechanical platform for feed, limited position can be adjusted automatically move, make feed stable and reliable.
4.Limit: make feed location, spacing, to ensure its accuracy.

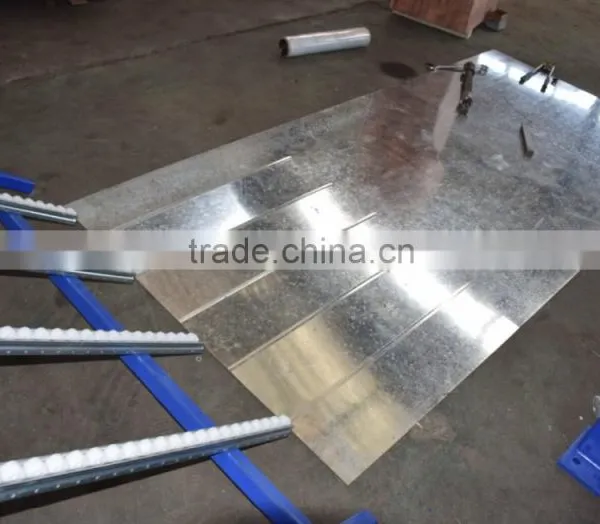

5.Leveling embossing machine: can realize sheet leveling, embossing. Embossing using five line parallel the shape of the embossing. I use high quality material to heat treatment. A lot of time can press out has the shape of the five lines radian, Angle, has increased forming of sheet steel hardness.
6.Hydraulic punch Angle, can according to the needs of duct actual pointed mouth and impact and square opening.
contol system
In the main menu screen user according to the need to touch the corresponding buttons.
1.Manual mode
2. Automatic operation
Can choose cutting mode in the automatic operation mode, duct model.
3. Cutting mode
1.All Baide machines have 12 months warranty.
2.During warranty period, under correct operation according to manual we offered, Except
quick-wear part , Baide borne all fees of possible machine repairing and replacement.
3.After sale, if needed, we will offer 3-5 days with our engineer service local to help with the
machinery lifting/ installation and teaching(Need charge, the charge will paid by buyer)
4.Usually our machine are well tested and adjusted to confirm the best easy using for our clients
We supply 1 year Warranty and after 1 year, technical support will also be provided,Local support is also available
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11 year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
