1>Preformance feature
1. Q43 series suitable for metal recycling plants,automobiles and diamantling,smelting casting line. It works for all kinds of shape steel and all kinds of metal structures to cold cut.
2. The machine is all made from steel.It’s vibration treated roil to reduce internal stress to make machine stronger.The drive is hydraulic,stable and reliable.
3. It is bottom structure.It can be fix without foundation bolt.For the place where has no electric power,can matching diesel engine.
4. The working blade length:600mm,700mm,800mm,1000mm,1200mm,1800mm
5. Shearing force divide into eight rank,which suitable for different size requirements of the user to select.
2>Q43-500T/1200technical parameter

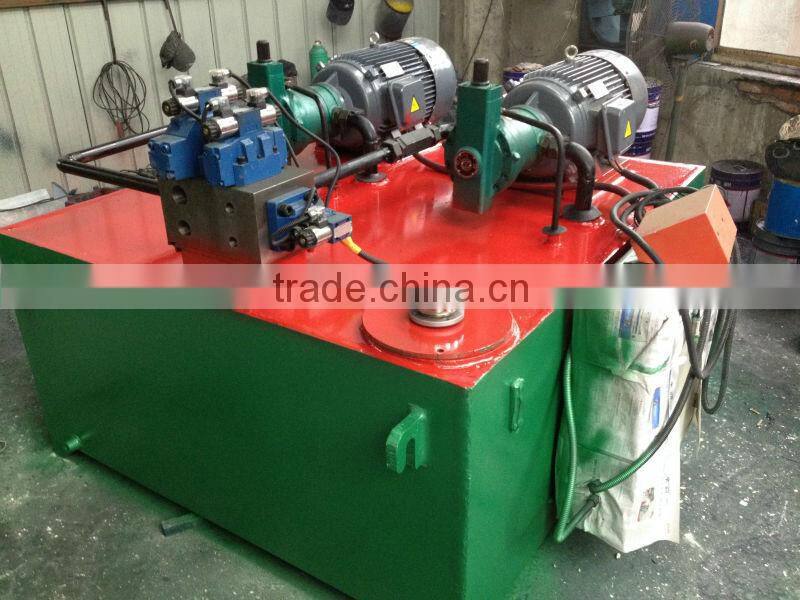

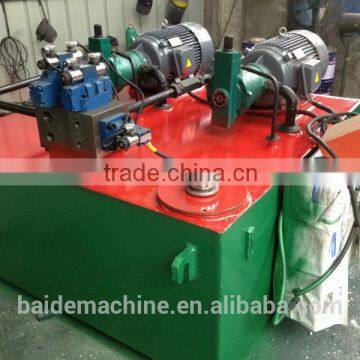

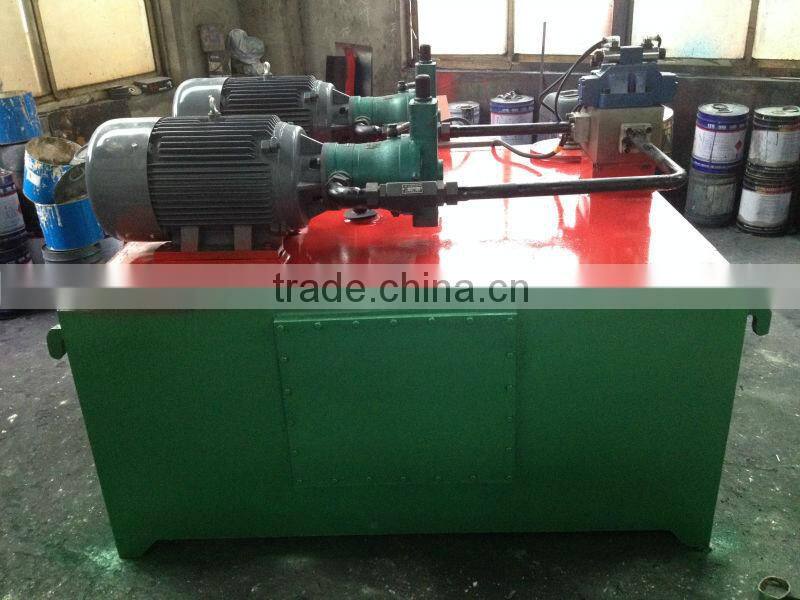

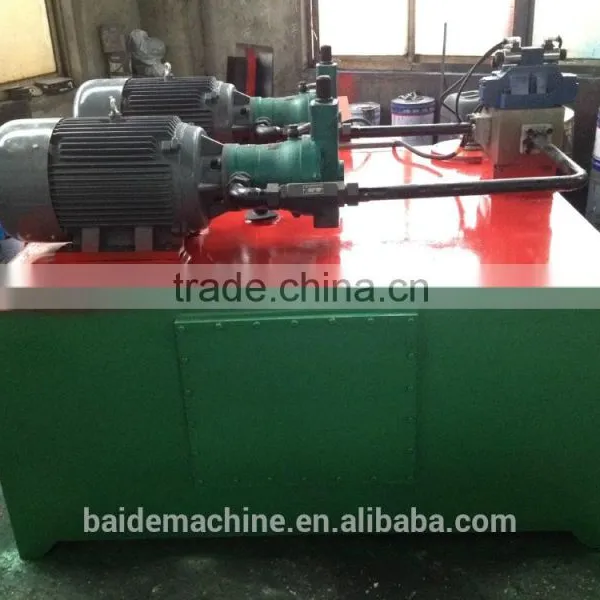

Motor(2set):Y200L-4(country of origin:Jiangsu carter)
Rated power:22KW(single)
Hydrauclic pump(two sets):HY107Y-RP(country of origin:Jiangsu Hengyuan)
Nominal displacement:107ml/r(single)
Rated pressure:31.5Mpa
3>,System working parameter
Max-shearing force:5000KN
Maximum pressing thickness :420KN
Blade length:1200mm
Shear frequency:6times
System working pressure:25Mpa
Maximum open mouth:540mm
Machine size: 3500*1200*1800
4>,Optional configuration
1.Diesel engine as power
2.CoolerHeater
5>,Maximum shearing standard (sectional form, unit:mm)
Steel plate:30×1200/40×800 Angle iron:200×200×16
Box iron:400×104×14.5 Square steel:100×100
Joist steel:400×146×14.5 Round steel:100
Machine size:3500*1200*1800
6>,Pour:
Because of the machine adopts principle magnification structure benchmarking,the shearing knife everywhere are not equal.Specifications listed in the table refer to cut materials tensile strength limitδb≤450MPa.And the maximum shear section size is in the maximum shear force position(close to the shear knife en croute)

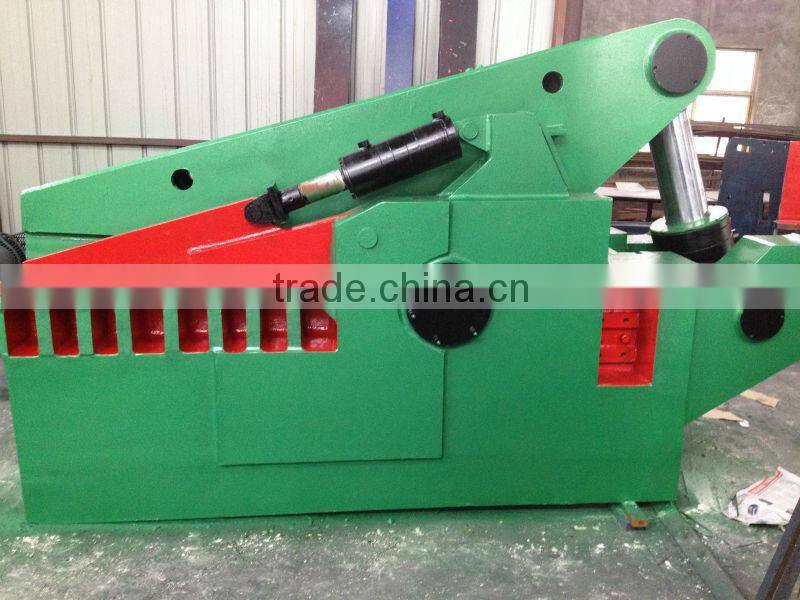

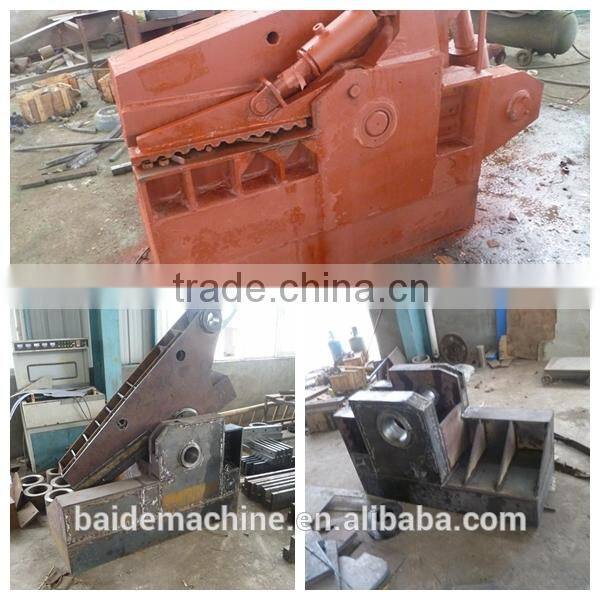

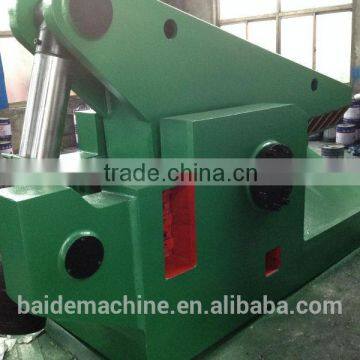

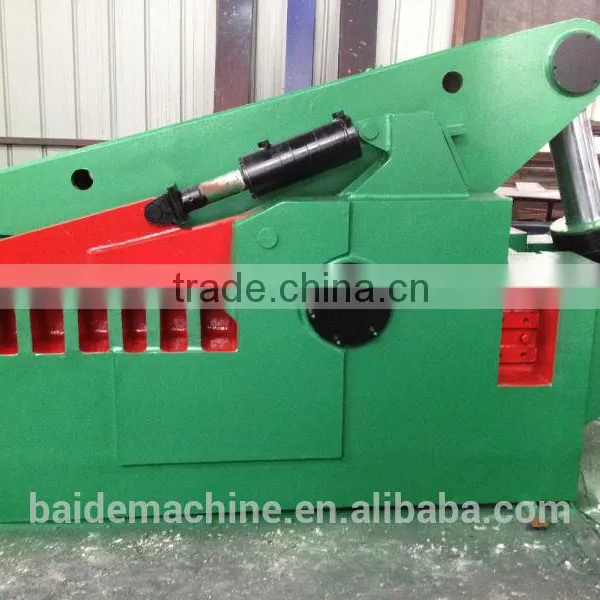

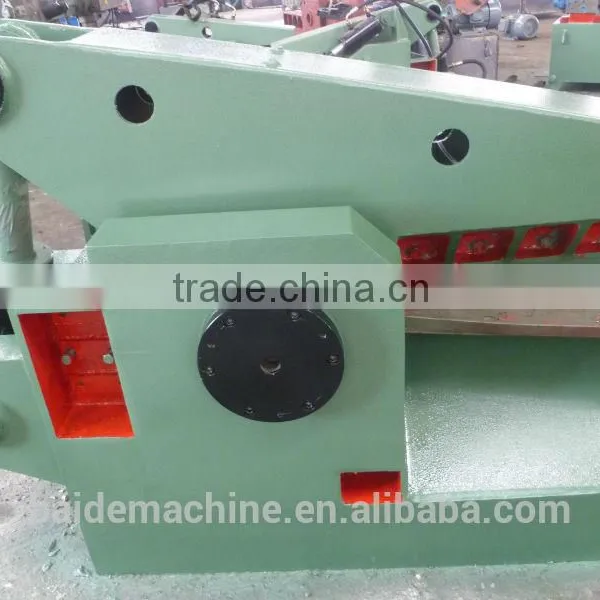

7>,Pictures
Standard exporting package or according your demand
1, inner machine, it is packaged in moisture-proof film.
2, pallet or wood box.
3, ground fixed bolt to confirm steady and avoid destroy.
4, tightly exporting standard bell to fasten machine in container.
5.Within 20 days after receive deposit
We supply 1 year Warranty and after 1 year, technical support will also be provided,Local support is also available
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: Bowang industry park,Maanshan City,China
Our factory is near Nanjing Lukou Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 11 year, export proportion 50~60%.
Q4:How can i trust your company?
A:With 11-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Nanjing Lukou Airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears,iron work.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on
superior product and service.
