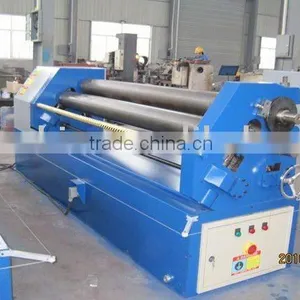

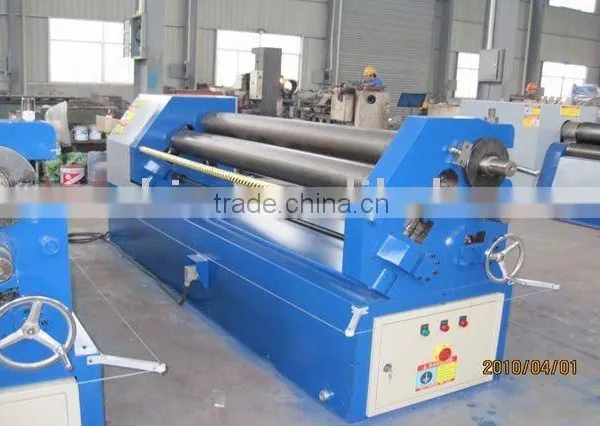

W11F-3X1500 Asymmetric 3-roller Rolling Machine
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
LIWANG
Model Number:
W11F-3X1500
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Ironworker Q35Y-16,20,25,30NegotiableMOQ: 1 Piece -
Plastic Sheet/sheet Plate Shearing MachineUS$ 5,200 - 15,200MOQ: 1 Piece
-
QH11D 2.5x2000 Precision Shearing MachineUS$ 1,000 - 4,000MOQ: 1 Piece
-
PVC Cutting MachineUS$ 1,500 - 3,200MOQ: 1 Set
-
Special Cutting Machine, Shopping Cart Cutting MachineUS$ 1,500 - 3,700MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
LIWANG
Model Number
W11F-3X1500
Machine Type
Roll Forming Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Other, Mechanical
Automation
Manual
Extra Services
Machining
Certification
ISO 9001:2000
Specifications
Asymmetric three-roll machine,the upper is the main drive,the down rollers take-off and landing exercise in order to clamp plateModel Type |
W11F-3×1500 Asymmetric 3-roller Plate Rolling Machine |
Capacity |
Max. 3mm thickness,1500mm width |
Plate |
Mild steel plate, less than 245Mpa |
Rolling speed |
4m/min |
Minimum rolled diameter under full load |
T3*B1500mm*φ250mm |
Upper roller diameter |
Φ125mm |
Down roller diameter |
φ125mm |
Side roller diameter |
Φ125mm |
Main motor power (Shanghai Lichao) |
2.2Kw |
Assistant motor power |
0.75kw |
Reducer model |
ZSY180-I |
Driven reducer model |
JZQ250 |
Electrical elements |
Siemens, Germen |
Electrical standard |
380V/50Hz, 3 phase |
Weight |
1050kg |
Dimension (L×W×H) |
2380×780×1170mm |
