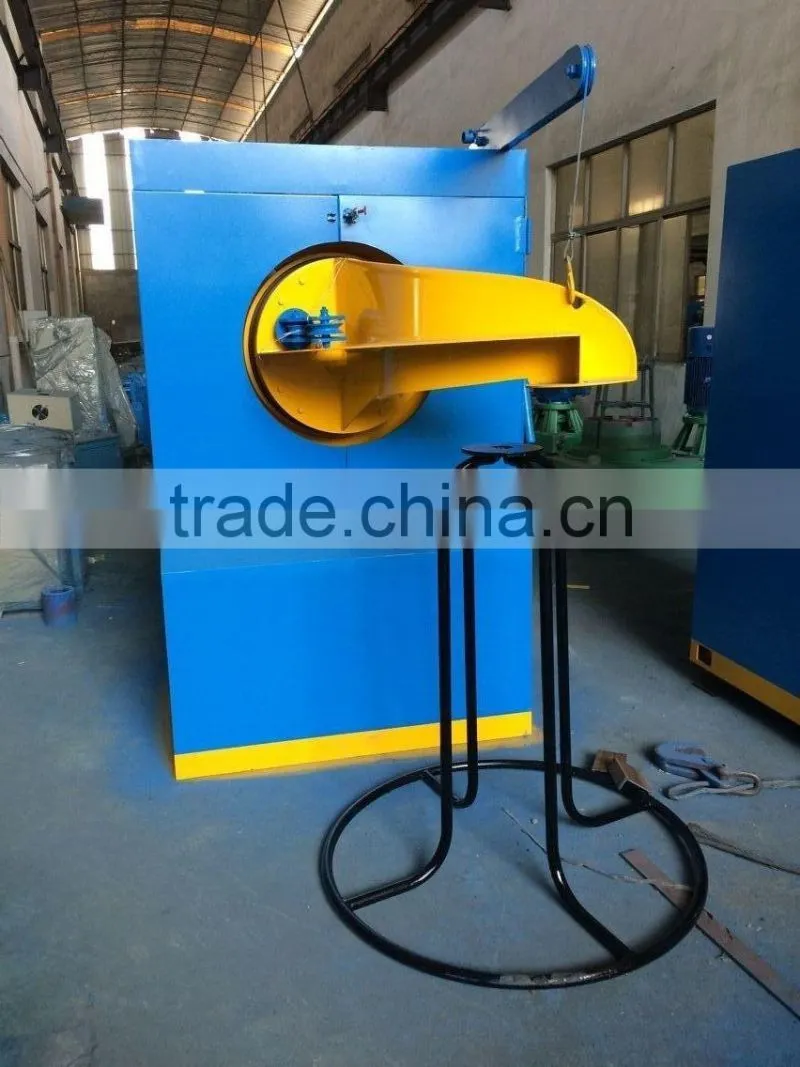

large/medium cable copper wire continuous drawing machine and annealer Quality Choice

Wuxi Wandeshun Machine Co., Ltd  (we are factory)

 1.    About us

Wuxi Wandeshun Machine Co., Ltd. one of the leading wire drawing machine manufacturers in China , is specialized in manufacturing wire drawing machines , which was established in 2000.

Our products are popular in many provinces of china and have already been exported to Vietnam , Indonesia, Uzbekistan Kenya, South Africa,Algeria,Egypt, Iran, Turkey and so on.

Excellent geographic location and easy transportation access, only 2k meter from Wuxi airport and adjacent to national highway 312.Welcome friends of all industries to visit and instruct our factory.

My contact way

My mobile: 86-13921534531

Whatsapp: 86-13921534531

Skype: jeaqueline998

trademanager: wxwds

Email:sales(at)

QQ:349791577

Product  Details

Specifications

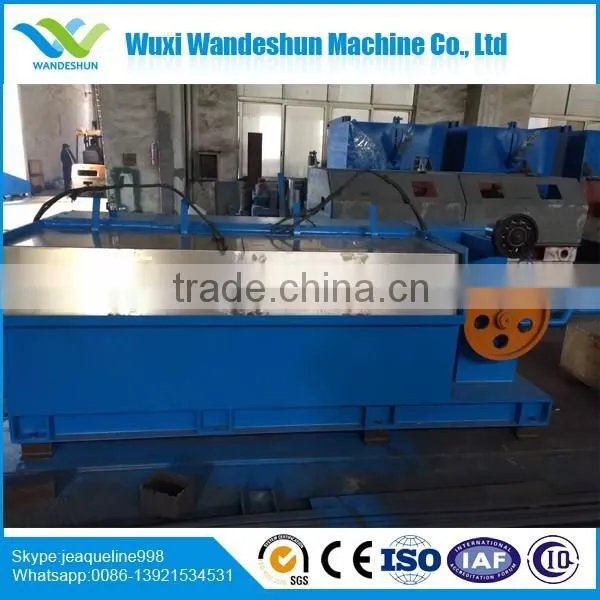

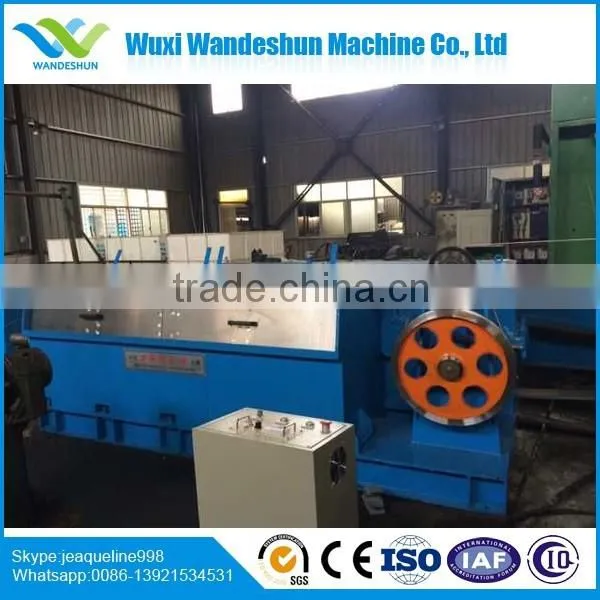

LT9-450Copper Large Pull with continuous annealing production line

copper rod breakdown machine;rod breakdown machine;8mm copper rod dawing machine

From 8mm to 1.78mm—3.30mm

copper rod input diameter:8mm,

output diameter: 1.78mm—3.30mm
production speed:480meters/s
production capacity: 1200KG/hour

copper rod breakdown  wire drawing machine (450/LT9)

number of dies:9

installed capacity:125KVA (Main motor:AC.110KW,spooler motor:15KW)

drive: frequency inverters

Dimension length 3000 * 1800mm Weight 6.5T width

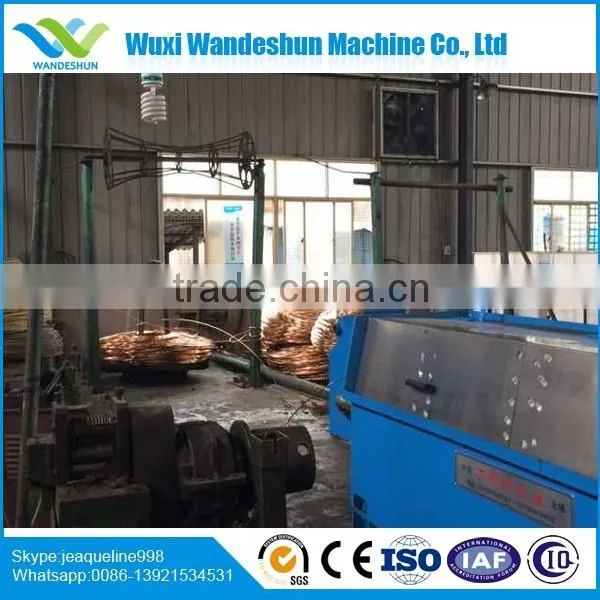

This company produces LT9-450 continuous annealing line used with pull-plus double-disc received Continuous Annealing Line (or, as the nose unloading line) production model, the formation of the entire production line continuous operation, drawing machine from a copper rod into the line of direct pull 8.00mm Model copper wire.
Annealing mode DC-annealing, annealing the use of advanced low-voltage power supply high current power supply, the control system adopts microcomputer intelligent control, equipment operation more stable, the maximum speed of 8 m / sec.

 LT-1200 large Pull continuous annealing line supporting equipment as follows:
Actinomyces gantry frame wear die rolling machine 110KW motor control cabinet tip LT-9 mold copper big pull
LT-1200 annealing machine LT-1200 cabinet annealing operation of the main electrical cabinet automatic double-disc MD-up Machine XB-600 like the nose and unloading-ray machine (also purchased) can store 1 tonne of copper wire used in the production line when a large single-core BV capacity pay-off.

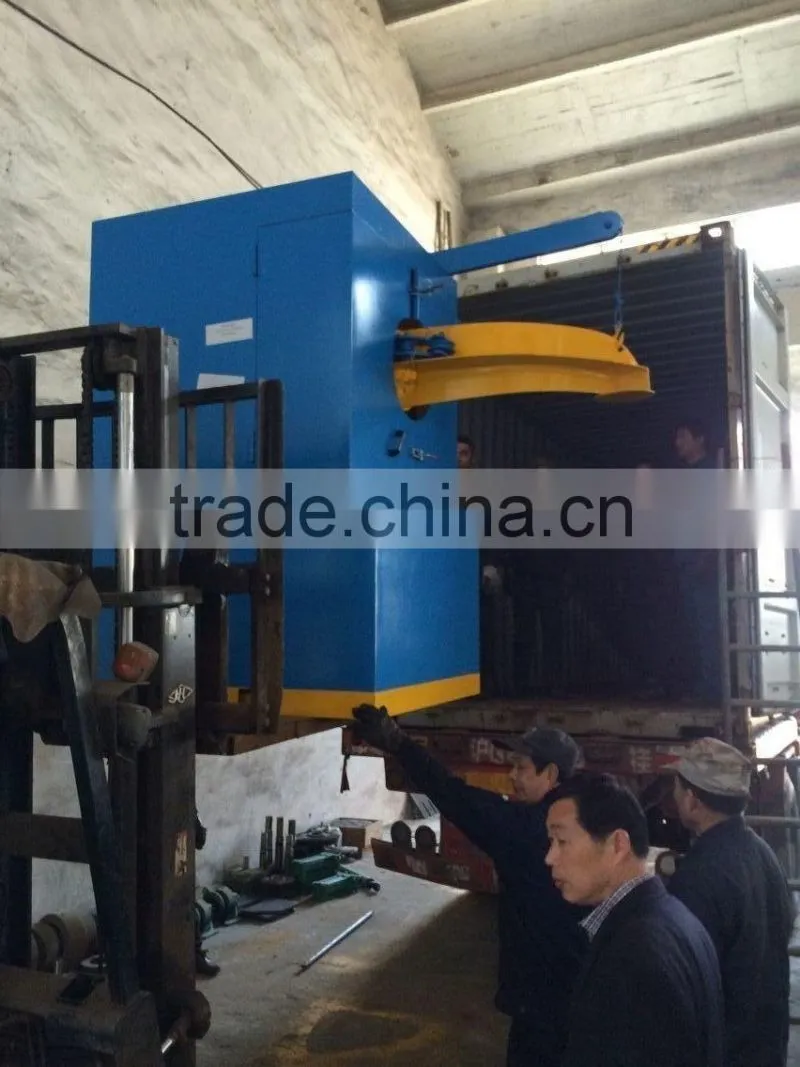

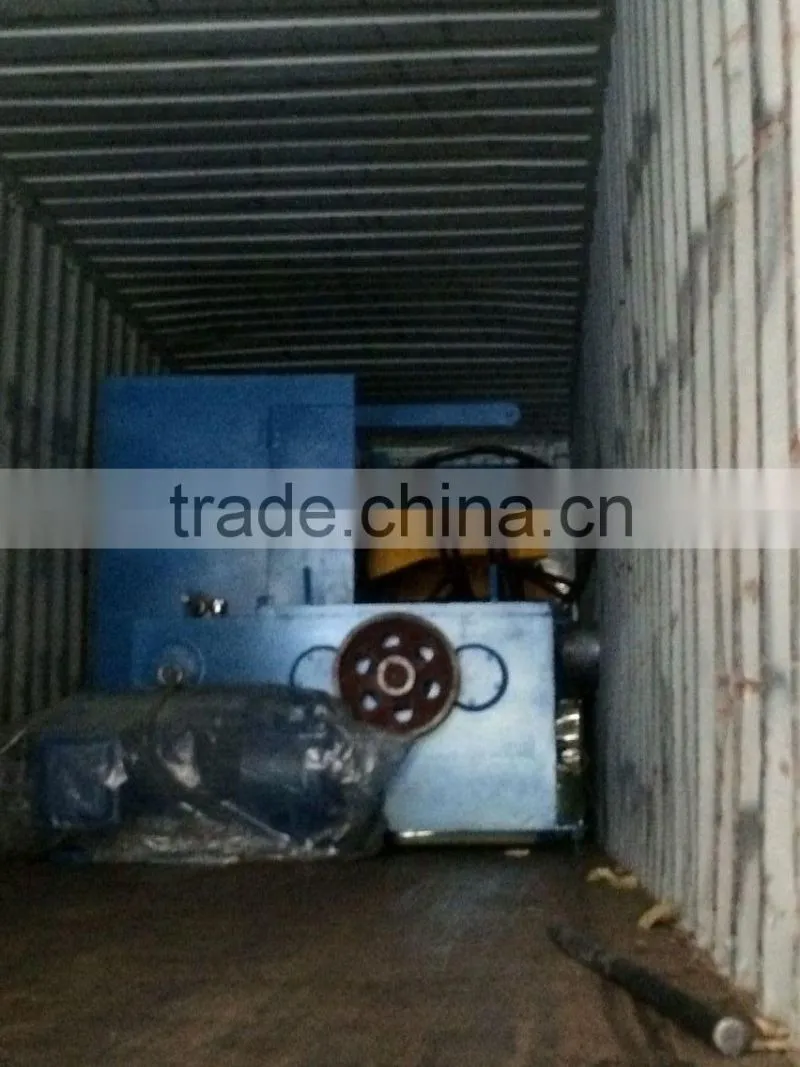

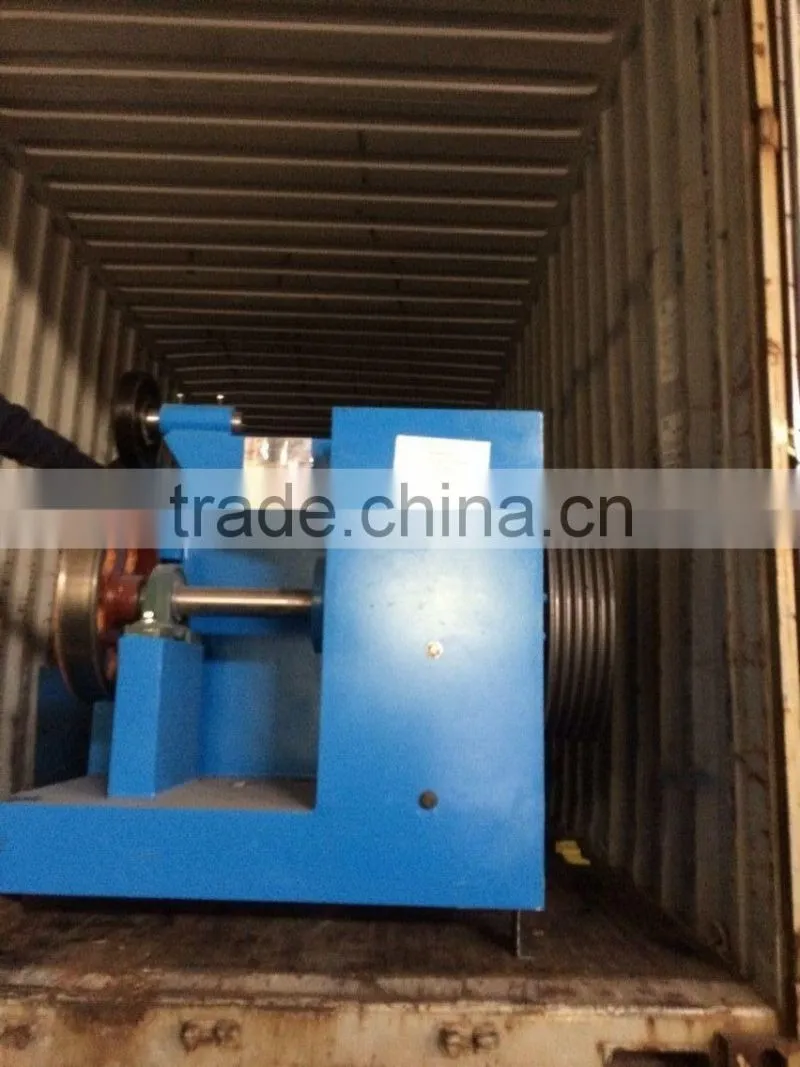

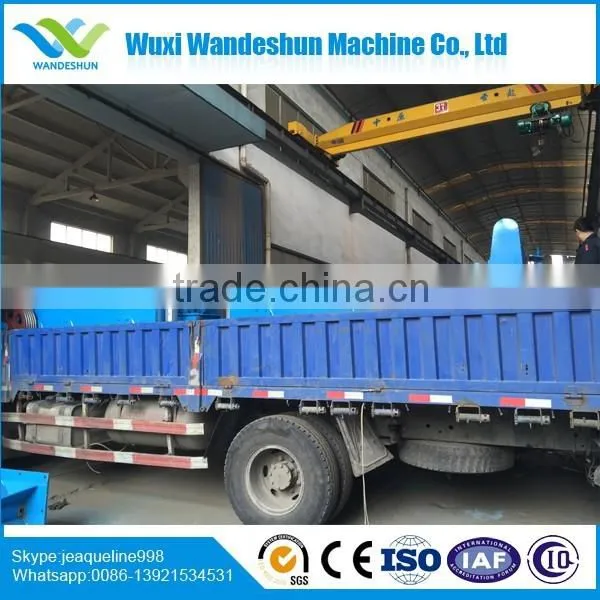

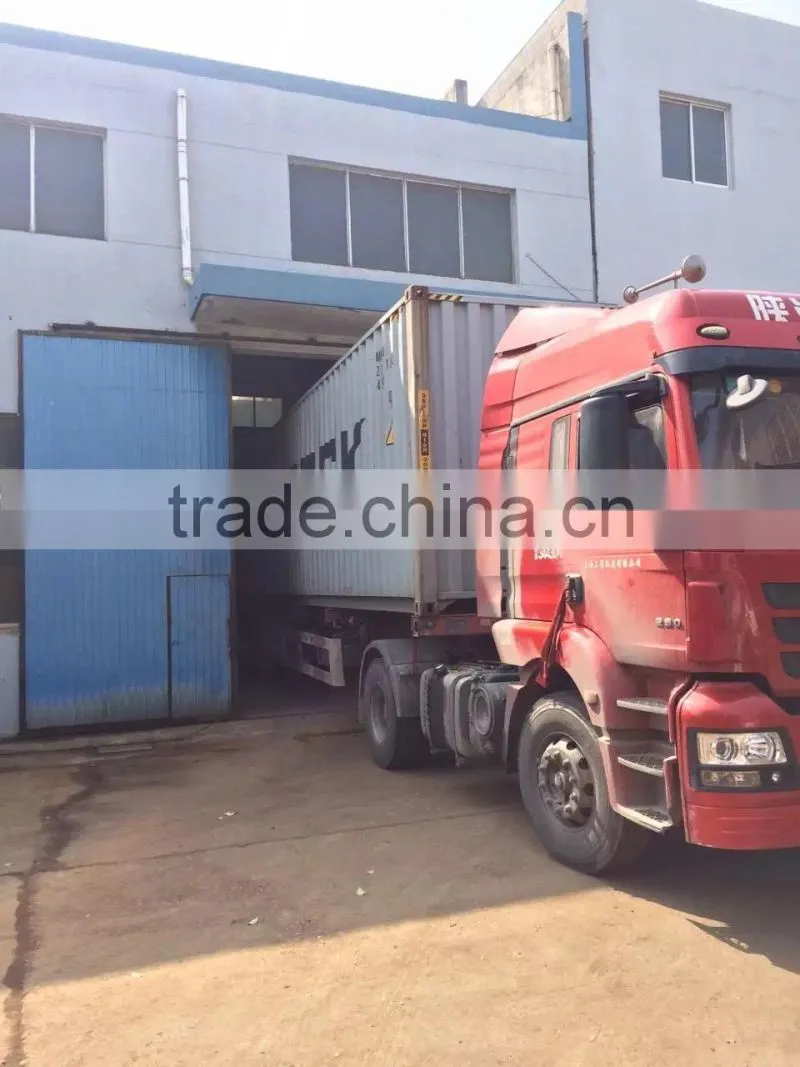

  Our loading photos which we ship to bangladesh market
