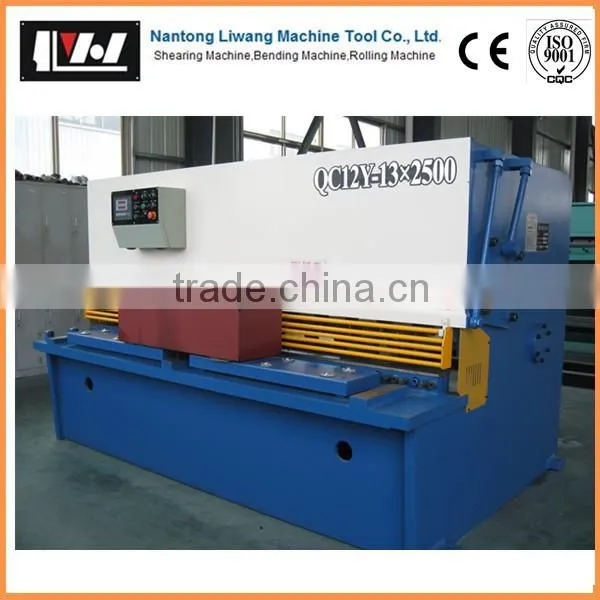

Help CenterProfessional Manufacture Hydraulic Cutting Machine Price
Related Products
-
Professional Manufacture Stainless Steel Cutting MachineUS$ 6,000 - 26,000MOQ: 1 Set -
NC/CNC Optional Hydraulic Cnc Metal Plate Shear MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Used Shearing MachineUS$ 4,500 - 11,250MOQ: 1 Set
-
Used Guillotine Shearing MachineUS$ 4,500 - 11,250MOQ: 1 Set
-
Guillotine Shears and Press BrakeUS$ 4,500 - 11,250MOQ: 1 Set
hydraulic cutting machine price

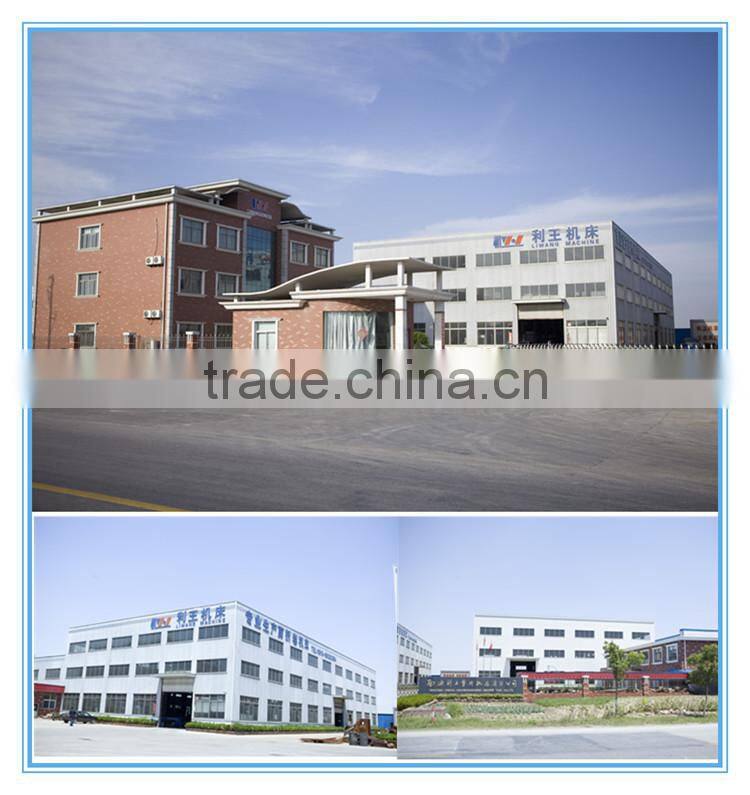

Company information
Certification

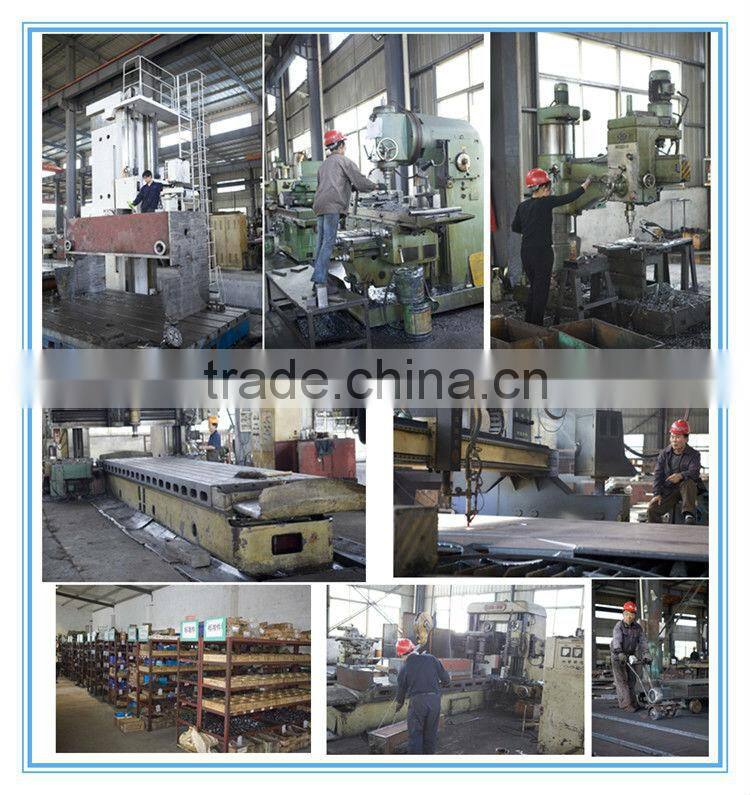

The Produce Scene
Main Applications, Functions and Features
1. This machine is used for straight sheet material whose tensile strength shall be less than 450N/mm2
2. The machine is equipped with front and back gauge. The whole frame is steel welded , vibrating treatment to remove
the internal stress , good rigidity and stability .
3. Adopt interacted hydraulic transmission system.
4. Tandem cylinder ensure the consult of shearing angle when the machine is working.
5. Triple support lead rail to eliminate the gaps , it enhance the shearing quality.
6. The accumulator’s return is stable and fast.
7. Blades clearance adjusted by hand wheel , it’s quick, accurate and convenient.
8. Adjusting shearing angle to reduce the deformation of the sheet .
9. Upper blade holder with inward struture, it’s facilitate to feed the material.
10. Rolling ball device reduce the frictional resistance , at the same time , it can protect the workpiece surface from scratching.
Technical data:
Tell us the thickness and the width, we can recommend you the suitable, contact me
Model |
Max. Shearing thickness (mm) |
Max. Shearing width (mm) |
Diatance between uprights (mm) |
Strokes (n/min) |
Backgauge Stroke (mm) |
Shearing angle (º) |
Working table height (mm) |
Throat depth (mm) |
Main power (kw) |
Length (mm) |
Width (mm) |
Height (mm) |
QC12Y 4x2000 |
4 |
2000 |
2150 |
20 |
20-600 |
1°30 |
740 |
100 |
4 |
2500 |
1550 |
1520 |
QC12Y 4x2500 |
4 |
2500 |
2700 |
18 |
20-600 |
1°30 |
740 |
100 |
4 |
3100 |
1550 |
1520 |
QC12Y 4x3200 |
4 |
3200 |
3410 |
14 |
20-600 |
1°30 |
800 |
150 |
4 |
3750 |
1680 |
1650 |
QC12Y 4x4000 |
4 |
4000 |
4220 |
10 |
20-600 |
1°30 |
8000 |
150 |
5.5 |
4650 |
1900 |
1720 |
QC12Y 4x4500 |
4 |
4500 |
4720 |
8 |
20-600 |
1°30 |
800 |
150 |
5.5 |
5150 |
1900 |
1720 |
Application
Detail pictures
Back gauge
Front support
Blade gap adjustment
right view
back view
(1)Spare parts:common tool with wear parts
(2)Shippment:Nominal package:20GP
(3)Delivery time:15-30days
(4)Payment terms:TT,30% in advance, the balance before shipment
(5)CE certificate
Thank you for your choose, if you do not know which type is suitable type, tell us the thickness,
the width, the material, we will recommend you the suitable type, just contact us!
Skype: ntxwxtt Tel:0086-13584719466
