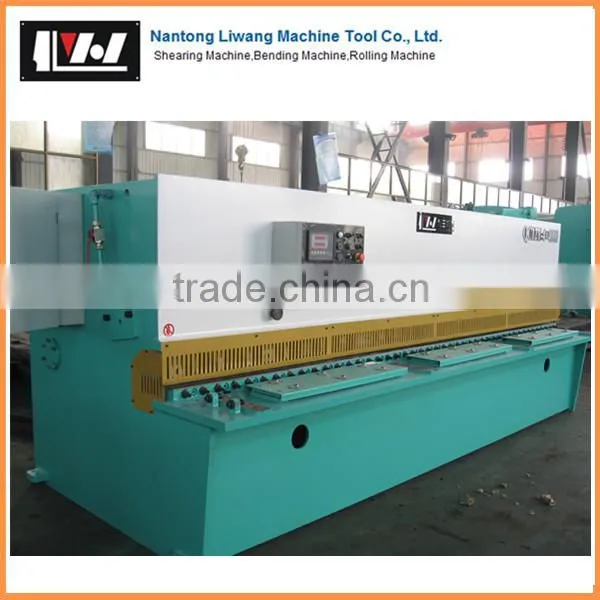

QC12Y-6X2500 metal sheet shear machine

Product Application

This machine is of welded steel structure, hydraulic driving. The return stroke is completed by nitrogen return cylinder .The machine is of good steadiness and safety while in use .And it does not occupy much space and is of low weight and good rigidity .The blade clearance can be adjusted quickly and simply .It has front and back gauge. The back gauge adopts mechanical driving and equipped with counter display .And it can be adjusted slightly with hands .It can be adjusted easily and reliably .The front gauge is counted with scale and positioned by block. The stroke of upper blade beam can be adjusted freely, which improves the efficiency when cutting narrow plates. The machine is equipped with reliable protection barrier to ensure safety.

keywords:metal sheet shear machine

Main Features

1) Holistic welding structure treated by annealing.

2) The upper blade carrier swing downward under the driven of hydraulic cylinder and return by nitrogen cylinders

3) manual adjustable blade clearnce

4) backgauge fulfill forward and backward movement under control of  motor.

5) E21 digital display device is used to indicate the value of backgauge

6) all major electrical and hydraulic elements are assembled with high grade internation brands

Control system

Name: E21

Brand: ESTUN

Original: China

backgauge control, intelligent positioning,stock counter,40 programs, 25 steps per program, retract function,

mm/inch

Chinese/English

back view

back support if you need
