Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | LIWANG |
Model Number: | QC11Y/K | Dimension(L*W*H): | Machine Model | Weight: | according to per Model |
Certification: | CE ISO | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

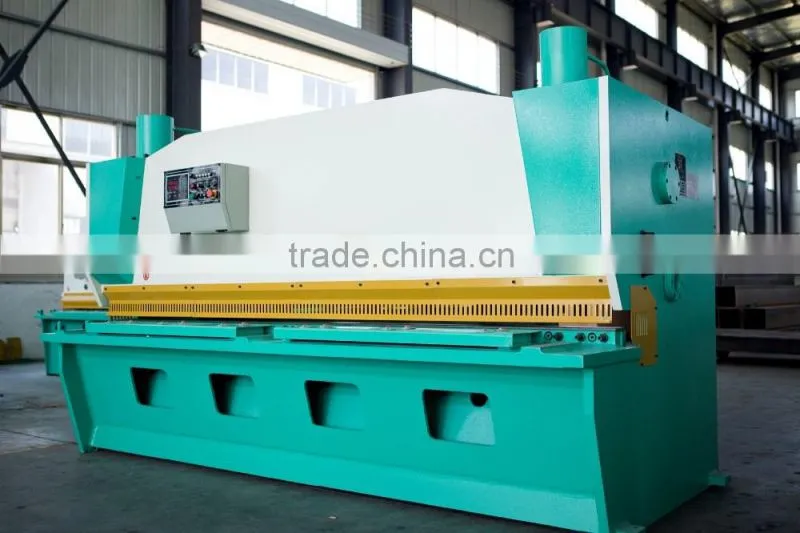

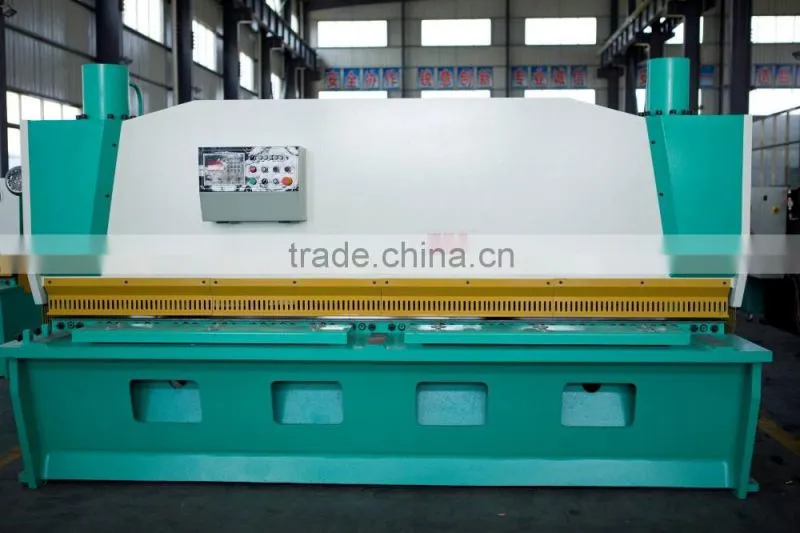

hydraulic shear
Precision. Quality. Performance. Every time. We take pride in the fact that our design offers the highest level of precision available in shearing machine technology today. Because our heavy-duty frame is based on proven traditional designs, our guillotine shears will outperform the competition every time. Our hydraulic shears also offer an incredible amount of precision because of their heavy-duty design.
Custom Metal Fabrication Shops
People working in custom metal fabrication shops know the value of quality equipment. They also understand the need for a shearing machine to perform efficiently and consistently. Our guillotine shears do both of these effortlessly. When working on a custom metal fabrication project, it’s imperative that your bending machines and shearing machines perform properly the first time around. Having to go back after and make corrections or repairs is not only costly, but a waste of your time! It also adds time to your project’s expected delivery date, which can impact your ability to satisfy your customer’s expectations.
Structure and performance features
The whole machine uses all steel plate welded structure;

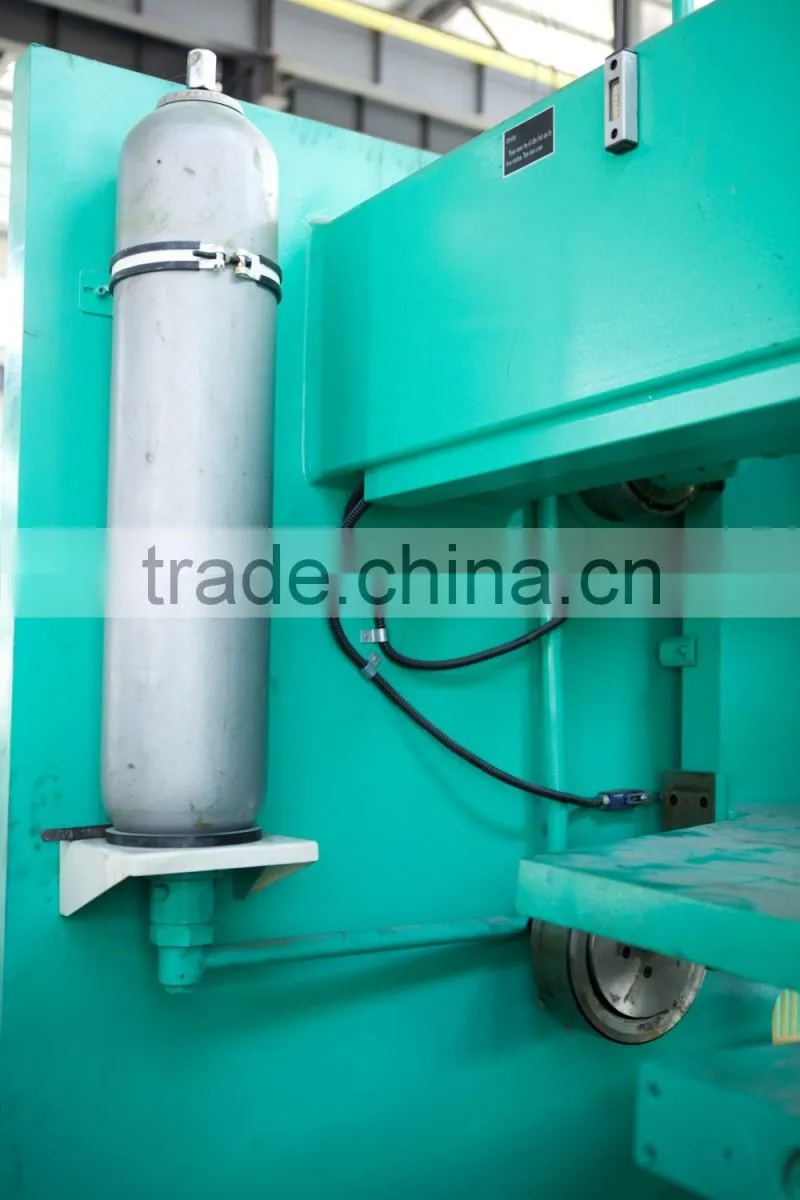

The upper tool rest is driven by the hydraulic cylinder to run in a straight line downwards, and completes the return stroke via the nitrogen cylinder;
The clearance between the tool edges can be adjusted manually;

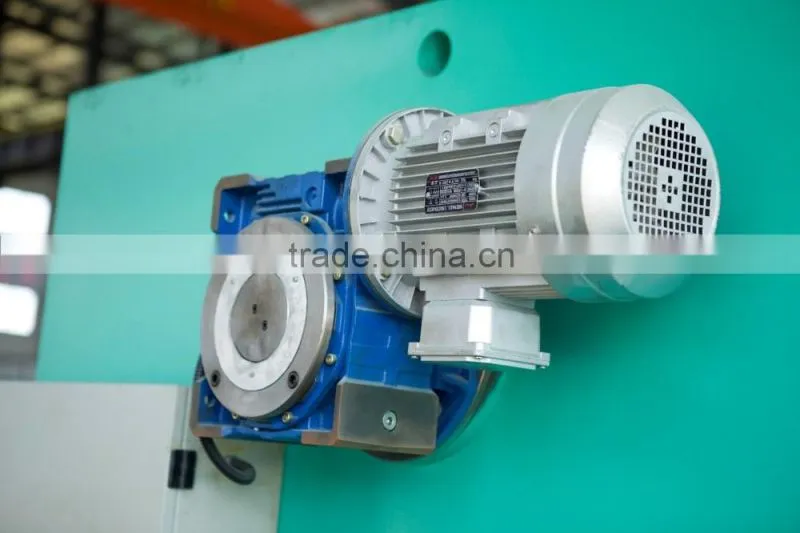

The front and back running of the rear barrier is driven by the motor, and displayed by the E10 electronic digital displayer to realize the fixed stroke shearing;
The key electrical and hydraulic elements use international famous-brand products;
Main Technical Parameters
Specification | QC12Y-4x2000 | QC12Y-4x2500 | QC12Y-4x3200 | QC12Y-4x4000 | QC12Y-4x4500 | QC12Y-6x1500 | QC12Y-6x2500 | QC12Y-6x3200 | QC12Y- 6x4000 | QC12Y- 6x5000 | QC12Y- 6x6000 | QC12Y- 8x2500 | QC12Y- 8x3200 | QC12Y- 8x4000 |
Max.Shearing thickness(mm) | 4 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 8 | 8 | 8 |
Max.Shearing wcdth(mm) | 2000 | 2500 | 3200 | 4000 | 4500 | 1500 | 2500 | 3200 | 4000 | 5000 | 6000 | 2500 | 3200 | 4000 |
Distance between uprights(mm) | 2150 | 2700 | 3410 | 4220 | 4720 | 1660 | 2720 | 3420 | 4220 | 5260 | 6230 | 2720 | 3440 | 4230 |
5trokes(n/min) | 20 | 18 | 14 | 10 | 8 | 20 | 17 | 14 | 10 | 7 | 6 | 14 | 10 | 8 |
Backgauge stroke(mm) | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 |
Shearing angle(°) | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' | 1°30' |
Working table height(mm) | 740 | 740 | 800 | 800 | 800 | 780 | 780 | 800 | 800 | 850 | 850 | 800 | 800 | 800 |
Throat depth(mm) | 100 | 100 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Main power(KW) | 4 | 4 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 11 | 11 | 11 | 11 |
Length(mm) | 2500 | 3100 | 3750 | 4650 | 5150 | 2000 | 3100 | 3800 | 4650 | 5600 | 6650 | 3100 | 3800 | 4600 |
Width(mm) | 1550 | 1550 | 1680 | 1900 | 1900 | 1760 | 1620 | 1700 | 1850 | 2200 | 2200 | 1750 | 1850 | 1900 |
Height(mm) | 1520 | 1520 | 1650 | 1720 | 1720 | 1600 | 1600 | 1650 | 1750 | 1950 | 1950 | 1700 | 1750 | 1800 |
Weight(kg) | 2900 | 3400 | 5000 | 6800 | 8000 | 3000 | 4800 | 6400 | 8000 | 14000 | 17000 | 6800 | 7500 | 8500 |
Specification | QC12Y-8×6000 | QC12Y-10×2500 | QC12Y-10×3200 | QC12Y-10×4000 | QC12V-12×1500 | QC12Y- 12×2500 | QC12Y- 12×3200 | QC12Y- 12×4000 | QC12Y- 12×6000 | QC12Y- 16×1500 |
Max.Shearing thickness(mm) | 8 | 10 | 10 | 10 | 12 | 12 | 12 | 12 | 12 | 16 |
Max.Shearing wcdth(mm) | 6000 | 2500 | 3200 | 4000 | 1500 | 2500 | 3200 | 4000 | 6000 | 1500 |
Distance between uprights(mm) | 6230 | 2720 | 3440 | 4230 | 1680 | 2760 | 3465 | 4365 | 6245 | 1680 |
strokes(n/min) | 6 | 10 | 10 | 12 | 14 | 10 | 10 | 7 | 5 | 10 |
Backgauge stroke(mm) | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-800 | 20-800 | 20-800 | 20-800 | 20-600 |
Shearing angle(°) | 1°30' | 1°30' | 1°30' | 1°30' | 2°9' | 1°50' | 1°45' | 2° | 2° | 2°30' |
Working table height(mm) | 850 | 800 | 800 | 800 | 800 | 810 | 810 | 810 | 950 | 800 |
Throat depth(mm) | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 | 150 |
Main power(KW) | 11 | 11 | 11 | 11 | 15 | 15 | 22 | 22 | 22 | 15 |
Length(mm) | 6700 | 3100 | 3800 | 4600 | 2500 | 3150 | 3850 | 4650 | 6900 | 2600 |
Width(mm) | 2350 | 1750 | 1850 | 1900 | 1800 | 1950 | 2150 | 2270 | 2500 | 1950 |
Height(mm) | 2050 | 1700 | 1750 | 1800 | 1750 | 1850 | 2000 | 2100 | 2450 | 1800 |
Weight(kg) | 19000 | 7500 | 8000 | 9000 | 5000 | 8500 | 11000 | 13000 | 29000 | 6000 |

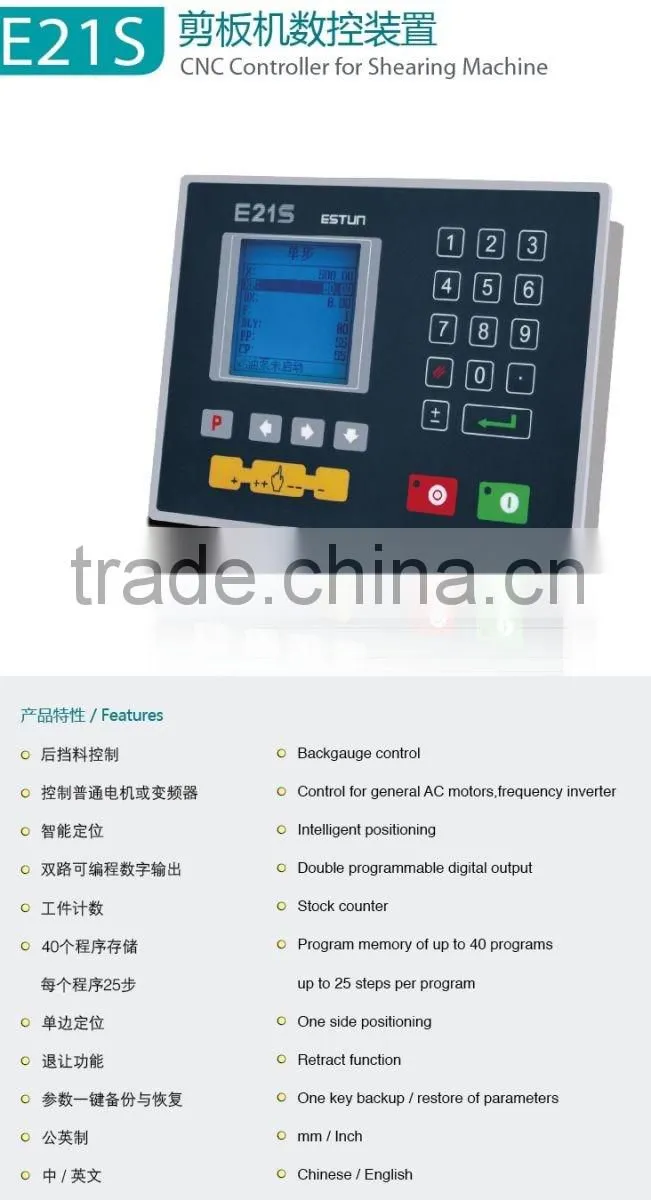

control system: standard E21, also have E200, DAC360, DAC310
