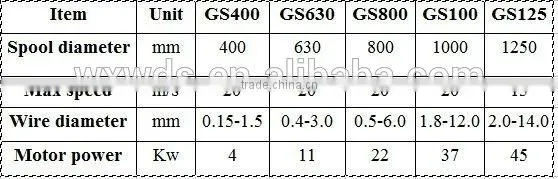

Specifications
Place of Origin: Jiangsu China (Mainland)Brand Name: wandeshun
quality: best
Specifications
1)Min. order: 1 set
2)Payment : T/T L/C
3)Supply ability: 5sets/month
4)Package: normal export sea package method
Take-up Machine
--------------------------------
1. Application
This pay-off with flyer is suitable for installation in front of drawing machines for paying off steel wires. Especially for high carbon wires, its design offers the following advantages:
_ Low-noise operation
_ No damage of wire surface and lubricant carrier
_ Easy handling for loading process
_ High pay-off speed
_ High safety standard against accidents
_ With motorized flyer (option) especially suitable for pay-off of cold heading wires
2. Method of operation
Loading of rod wire coils is effected by crane and C-hook. During loading the front support is hydraulically swiveled backwards whereas the carrier beam is propped-up hydraulically by a second support installed at pay-off side. By means of a motorized pushing device the rod coils are moved on the carrier beam towards the flyer. During this operation the support at the pay-off side is swivelled in its backward position. The point of the first coil is fed to the drawing machine via guide rolls on the flyer and through the hollow rotor axle. A rope with clamping device makes threading operation of thicker wires diameters easier. During pay-off of the first coil, the carrier beam is charged with a further coil and wire points are welded together, thus allowing a continuous operation without necessity to stop the drawing machine.
Pictures of machine:
